Removing Rear Power Windows

Information

Mark the position of the nuts.

1. Remove cover on rear power windows mechanism -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

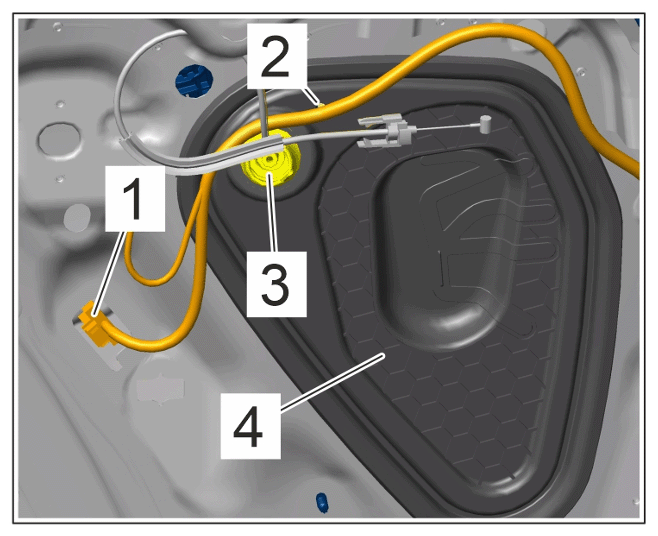

   Cover

   1. 1.1 Release and unplug electric plug connection -1-  .
   2. 1.2 Loosen clip -2-  from cover on power windows mechanism -4-  .
   3. 1.3 Press grommet -3-  through cover on power windows mechanism -4-  .
   4. 1.4 Remove cover on power windows mechanism -4-  .
2. Unscrew nuts -1-  and carefully pull out rear power windows mechanism -2-  until the electric plug connection is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

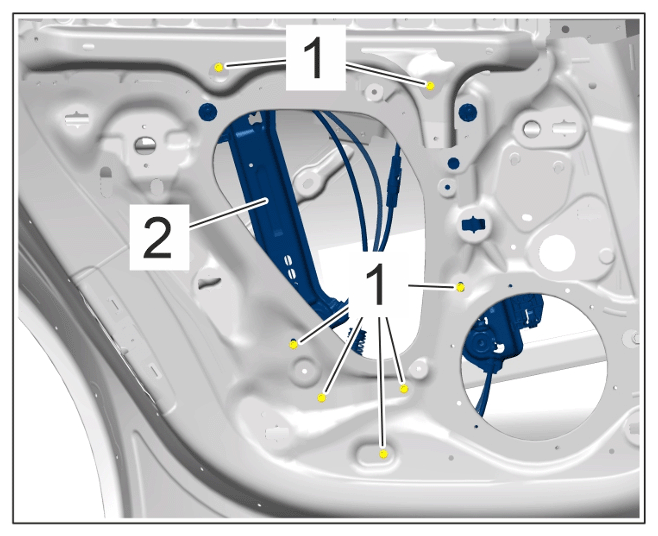

   Nuts

3. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

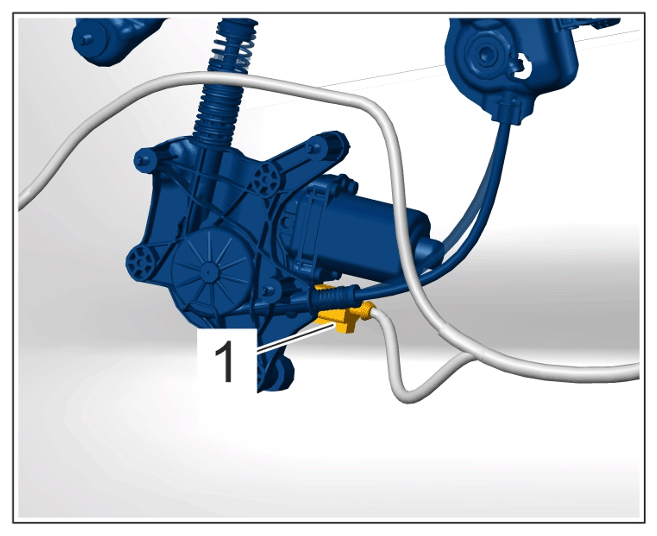

   Electric plug connection

4. Remove rear power windows mechanism.
