Installing Rear Power Windows
Information
Check components for damage before re-installing them and replace them if necessary.
Information

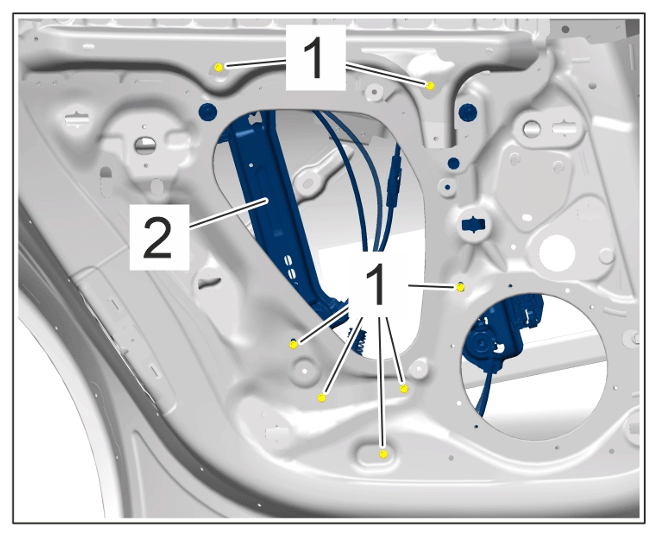

Tighten nuts at the marked position.
Information
Adjusting screws
- Do not turn adjusting screws -1- during the fitting procedure.
- The adjusting screws -1- on the power windows spare part are preset.
- Installation is performed in reverse order. Pay particular attention to the following:
Tighten nuts to > Tightening torque 7.5 Nm (5.5 ftlb.) .
