Adjusting Rear Door Window: Notes

  1. Open the rear door and attach strips of adhesive tape as a marking on the door window glass.

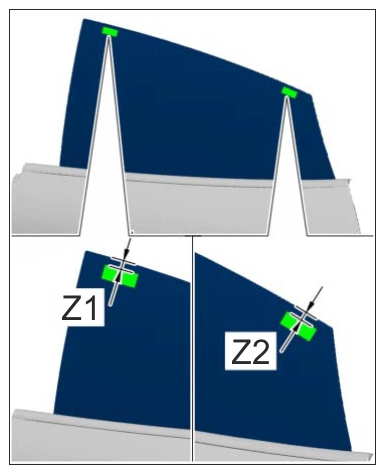

    G15564262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Marking

    1. 1.1 Affix strips of adhesive tape with gap dimensions -Z1-  > Gap dimension 4.6 mm +/- 1.0 mm  > and -Z2-  > Gap dimension 3.6 mm +/- 1.0 mm  > at the positions shown.
  2. Close the rear door and check position of rear door window -1-  .

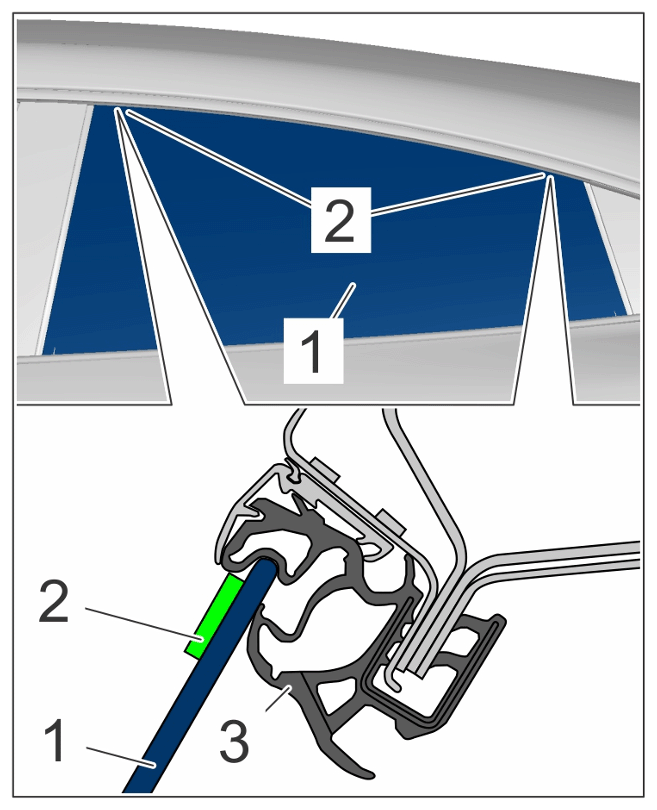

    G15564263Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Position of rear door window

    1. 2.1 The strips of adhesive tape -2-  must touch the seal -3-  .
  3. Remove cover on rear power windows mechanism -4-  .

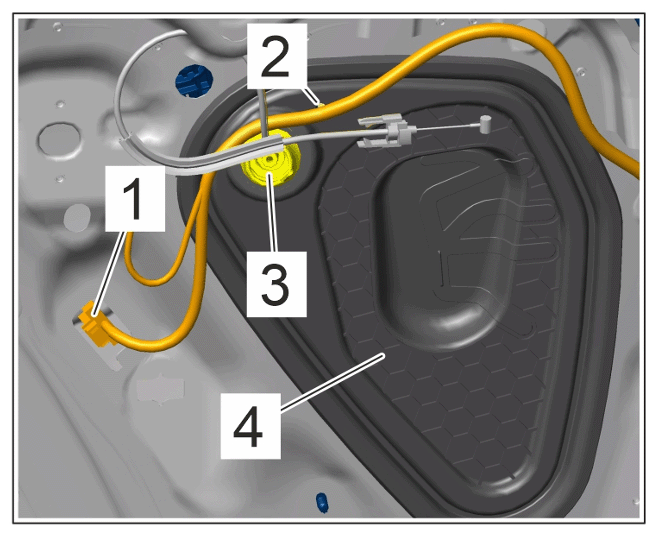

    G15564264Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

    1. 3.1 Release and disconnect electric plug connection -1-  .
    2. 3.2 Loosen clip -2-  from cover on power windows mechanism -4-  .
    3. 3.3 Press grommet -3-  through cover on power windows mechanism -4-  .
    4. 3.4 Remove cover on power windows mechanism -4-  .
  4. Adjust rear door window.

    Information

    The adhesive pad cannot be pulled off without damaging it and must always be replaced.

    1. 4.1 Pull off adhesive pads -1-  .

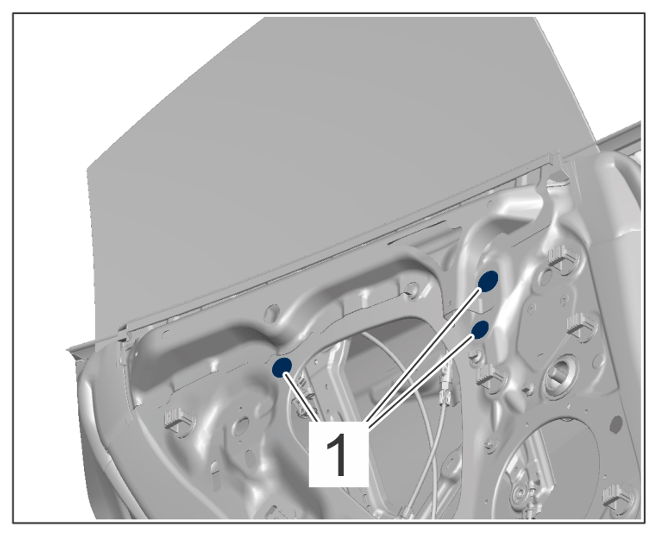

      G15564265Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Adhesive pads

    2. 4.2 Loosen front door window -2-  .

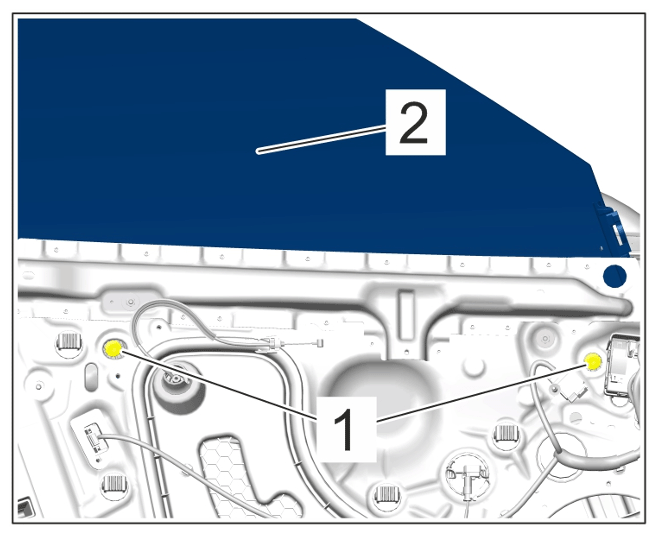

      G15564266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screws

      1. 4.2.1 Position front door window -2-  in such a way that the screws -1-  are easily accessible.
      2. 4.2.2 Loosen screws -1-  .
    3. 4.3 Adjust the front door window by moving it in X direction. > Gap dimension 8 mm +/- 0.7 mm
    4. 4.4 Adjust front door window in Z direction.
      1. 4.4.1 Adjust outer bracket for front door window -1-  by turning the adjusting screw -2-  using a > 9842/3 - screwdriver  . > Gap dimension 3.6 mm +/- 1.0 mm

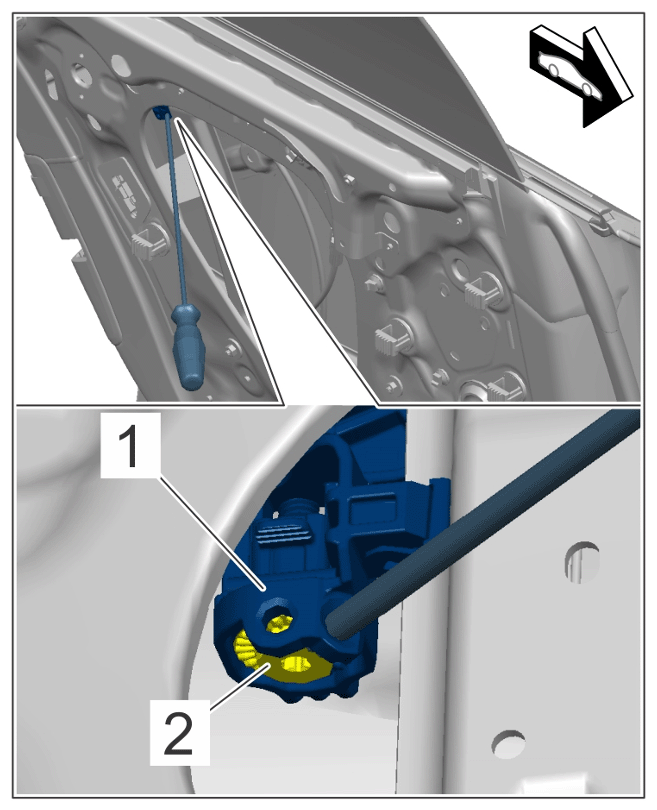

        G15564267Courtesy of PORSCHE CARS NORTH AMERICA, INC.

        Outer bracket for rear door window

      2. 4.4.2 Adjust inner bracket for front door window -1-  by turning the adjusting screw -2-  using a > 9842/3 - screwdriver  . > Gap dimension 4.6 mm +/- 1.0 mm

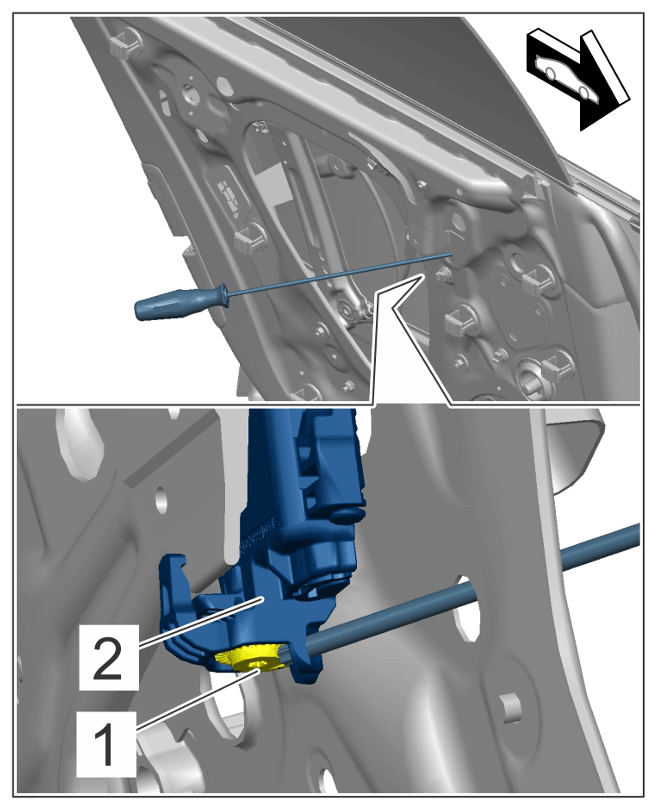

      G15564268Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Inner bracket for rear door window

      Information

      The adhesive pad cannot be pulled off without damaging it and must always be replaced.

    5. 4.5 Stick on new adhesive pads.
      1. 4.5.1 Position adhesive pad so that the assembly opening is completely covered.
      2. 4.5.2 Press adhesive pad on firmly.
