Removing Switch For Power Windows (On Passenger's Side)

Information

Cover add-on parts and adjacent areas.

Protect components against scratching and damage.

Information

• The power windows switch must be pressed up gently while loosening it so that the locking lugs do not engage again after releasing them.
• If too much pressure is applied, the locking lugs will bend and this will make further removal steps much more difficult.

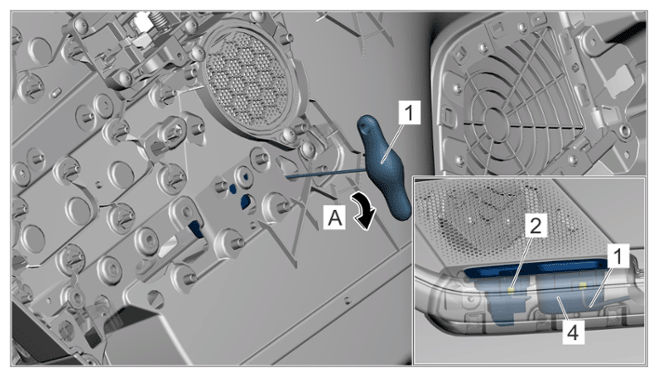

1. > 9827 - After positioning the release tool  (-1-  ) on the locking lug -2-  of the switch for power windows -4-  , move it -Arrow direction A-  in and release the front locking lug.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front locking lugs

   Information

   • The power windows switch must be pressed up gently while loosening it so that the locking lugs do not engage again after releasing them.
   • If too much pressure is applied, the locking lugs will bend and this will make further removal steps much more difficult.

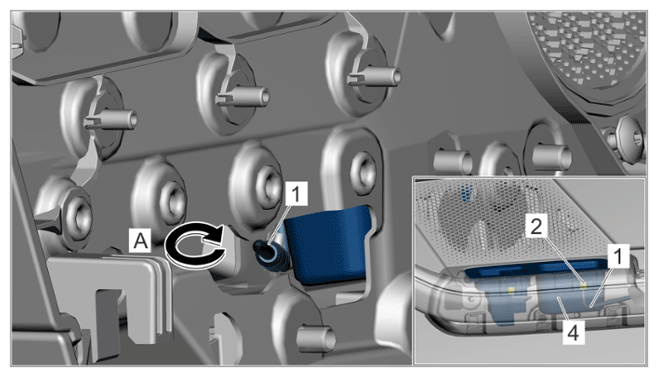

2. After positioning the tool (scribing needle) -1-  on the locking lug -2-  of the power window switch -4-  , turn it in -Arrow direction A-  and unlock the rear catch.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear locking lug

   Information

   • The power windows switch must be pressed up gently while loosening it so that the locking lugs do not engage again after releasing them.
   • If too much pressure is applied, the locking lugs will bend and this will make further removal steps much more difficult.

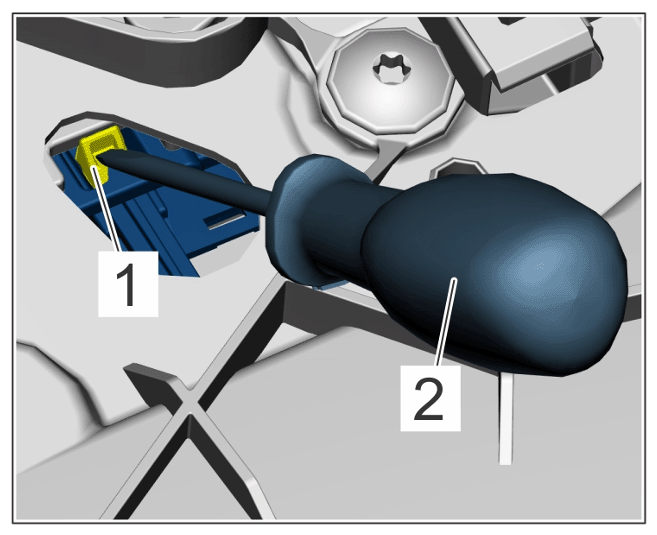

3. Unlock the locking lug -1-  with a screwdriver -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear top locking lug

   Information

   • The power windows switch must be pressed up gently while loosening it so that the locking lugs do not engage again after releasing them.
   • If too much pressure is applied, the locking lugs will bend and this will make further removal steps much more difficult.

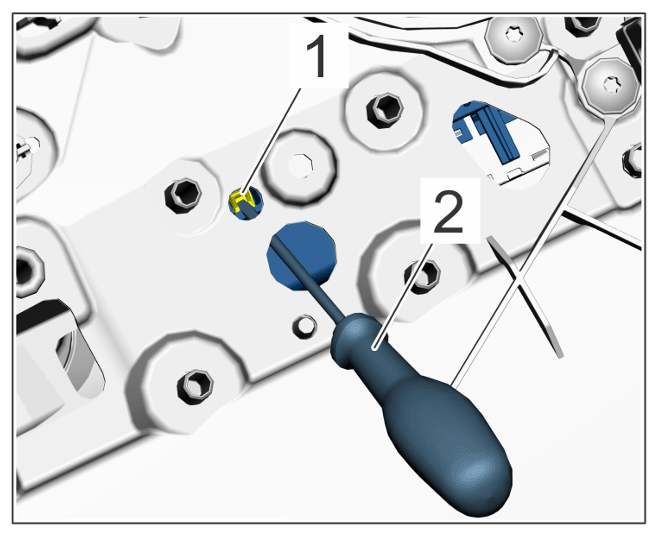

4. Unlock the locking lug -1-  with a screwdriver -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front inner locking lug

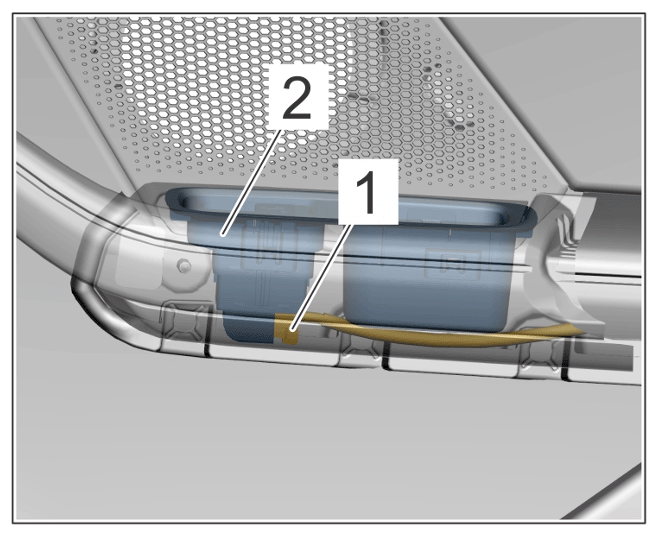

5. Pull out switch for power windows -2-  and release and disconnect electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

6. Remove switch for power windows.
