64 Glazing, Window Operation -- Y1A - TAYCAN (Y1A)
>>
WM, 645419 Removing And Installing Window Regulator Motor
>>
Removing Window Regulator Motor
Removing Window Regulator Motor

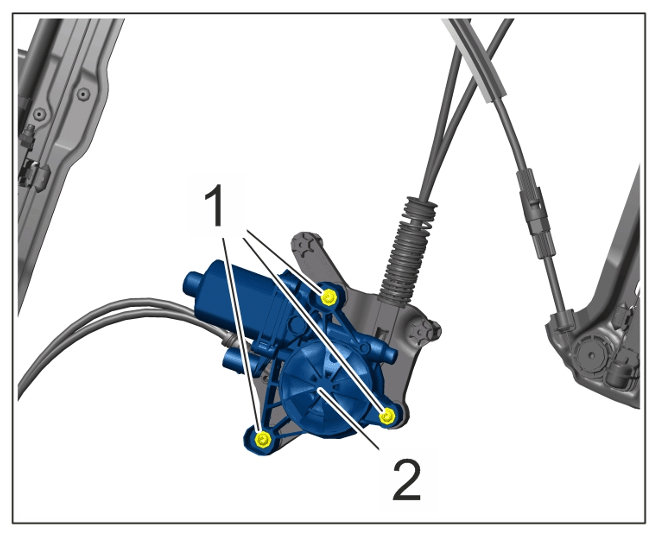

Unscrew screws
-1-
and disconnect window regulator motor
-2-
from front power windows mechanism.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
