Technical Values

Location	Description	Type	Basic value

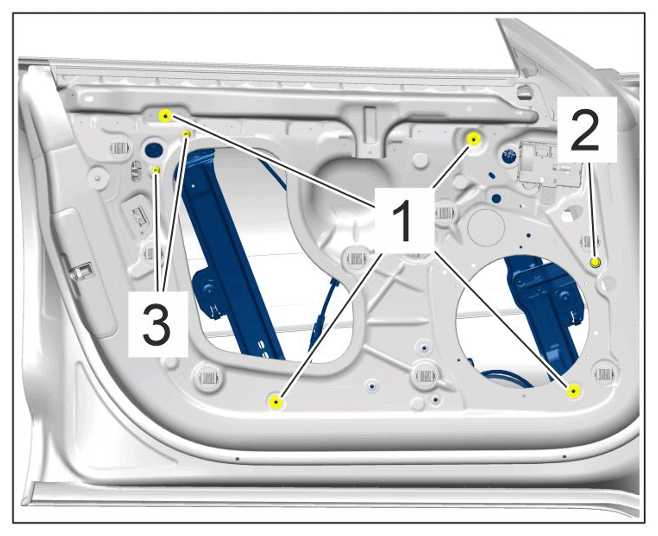

Screws securing front power windows mechanism to door body shell	Item 3	Tightening torque	9 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screw securing front power windows mechanism to door body shell	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts
Nuts securing front power windows mechanism to front body shell	Item 1	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

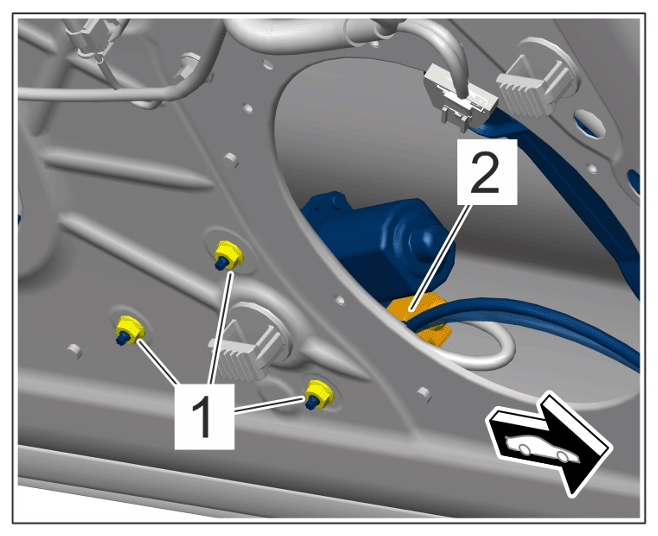

Nuts securing power window motor to door bodyshell	Item 1	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power window motor
