Installing Front Door Window

NOTE: Dirty door window glass installed

Risk of irreparable damage to front window channel seal
→ During installation, make sure that no lubricant from the window guides gets on to the door window glass.

→ Clean the door window glass and check that the front window channel seal is clean.

→ Replace damaged window channel seal.

Installation is performed in reverse order. Pay particular attention to the following:
Observe specified gap dimensions for front door window.

> 6X00IN GAP DIMENSIONS

Tighten screws to > Tightening torque 9 Nm (6.5 ftlb.) .

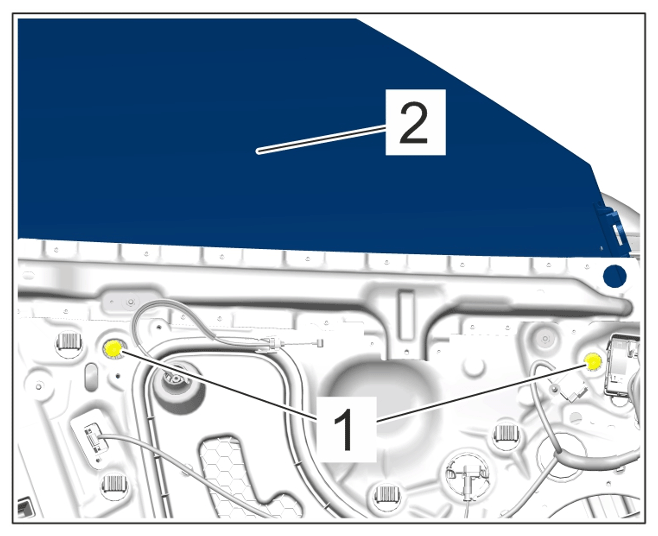

Stick on new adhesive pads -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive pads
