Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

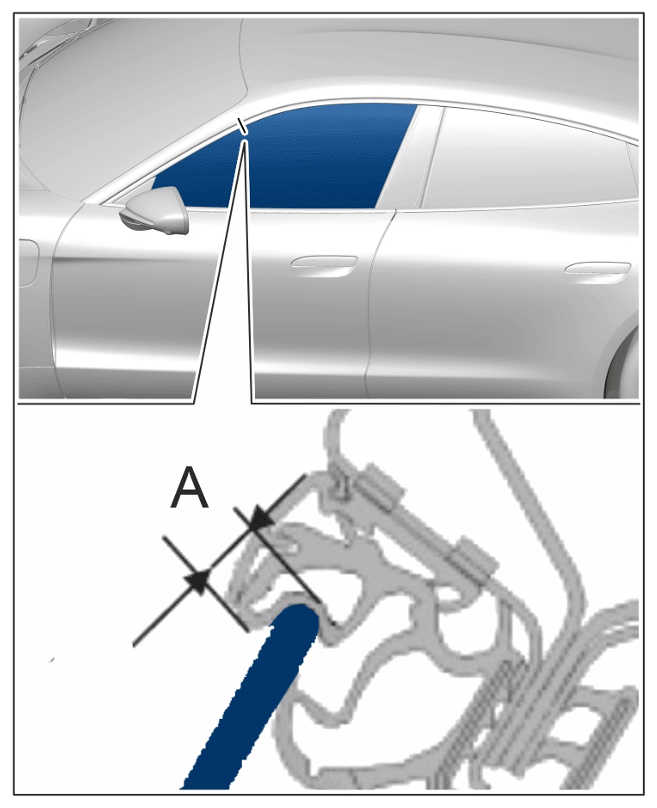

Front door window to rubber seal on door (on body side) Dimension A Gap dimension 3.6 mm +/- 1.0 mm
G15564201Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door window to rubber seal on door (on body side)

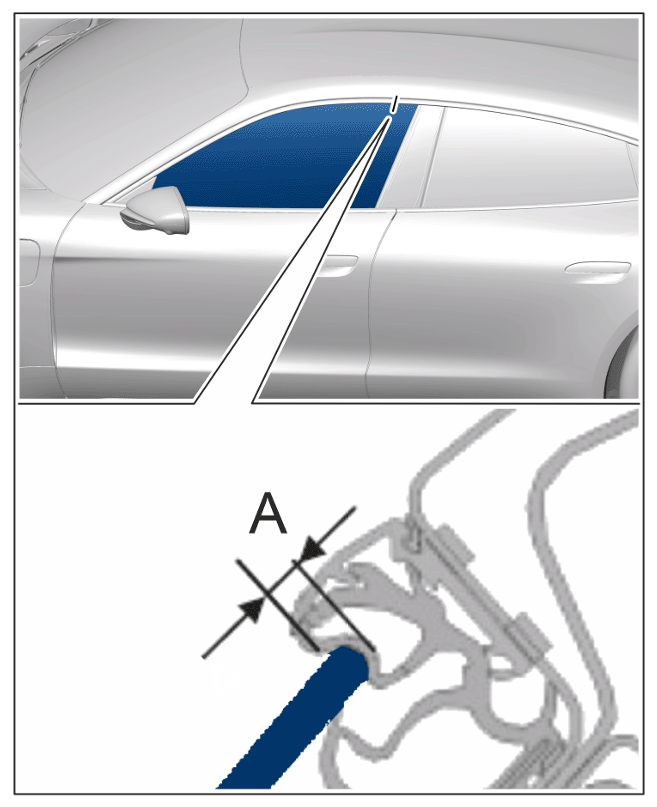

Front door window to rubber seal on door (on body side) Dimension A Gap dimension 5.2 mm +/- 1.0 mm
G15564202Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door window to rubber seal on door (on body side)

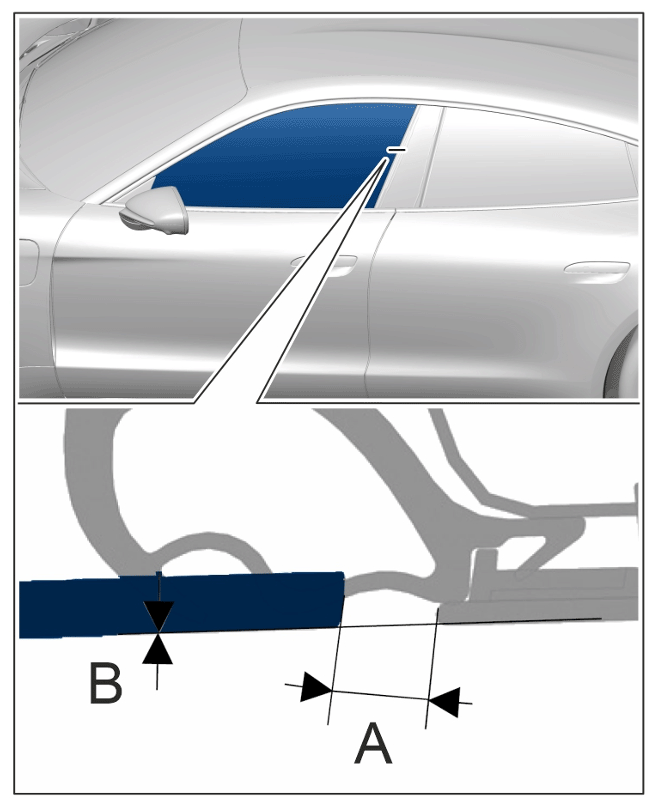

Front door window to B-pillar trim Dimension A Gap dimension 9 mm +/- 0.7 mm
G15564203Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door window to B-pillar trim
