Technical Values

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Windscreen to A-pillar	Dimension A	Gap dimension	2.5 mm +/- 0.7 mm

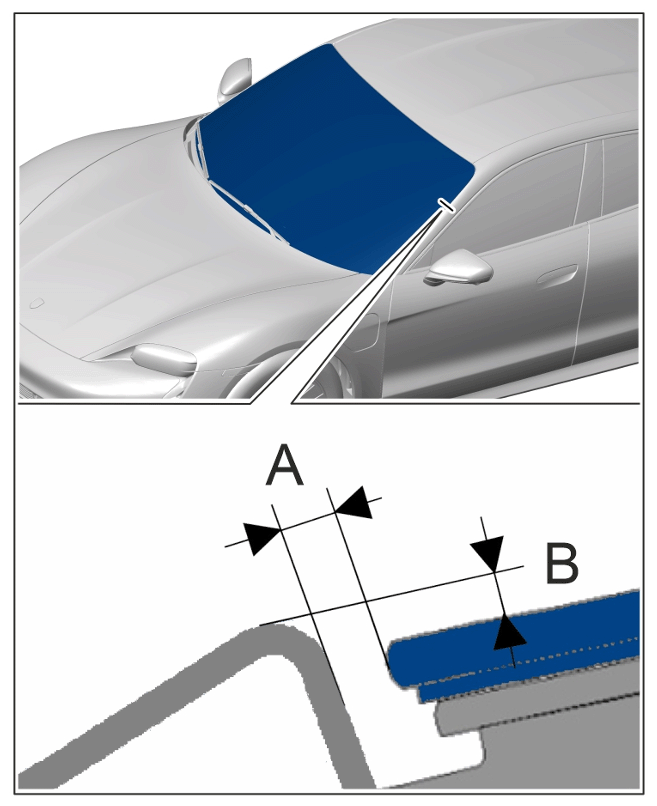

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Windscreen to A-pillar
Windscreen to A-pillar	Dimension B	Offset	- 2.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Windscreen to A-pillar
Roof assembly to windscreen	Dimension A	Gap dimension	2 mm	- 0.5 mm	+ 0.8 mm

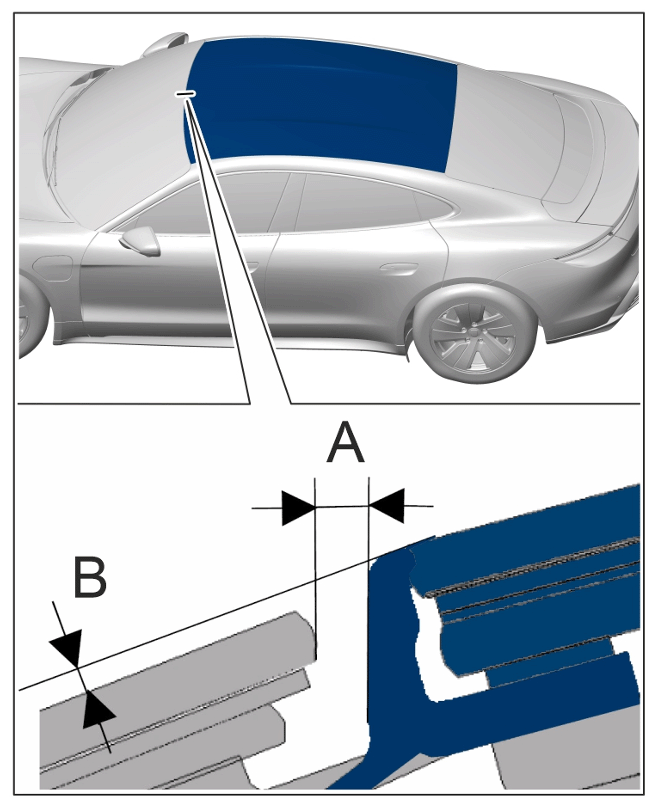

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof assembly to windscreen
Roof assembly to windscreen	Dimension B	Offset	1 mm	- 1.0 mm	+ 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof assembly to windscreen
Minimum distance between adhesive bead and seal profile		Required value	5 mm
