Removing Windscreen
WARNING:
Vehicle windows removed and installed incorrectly
- Danger of cuts
- Risk of eye injuries
→ Wear personal protective gear.
→ Always shut off power supply when replacing cutting knife.

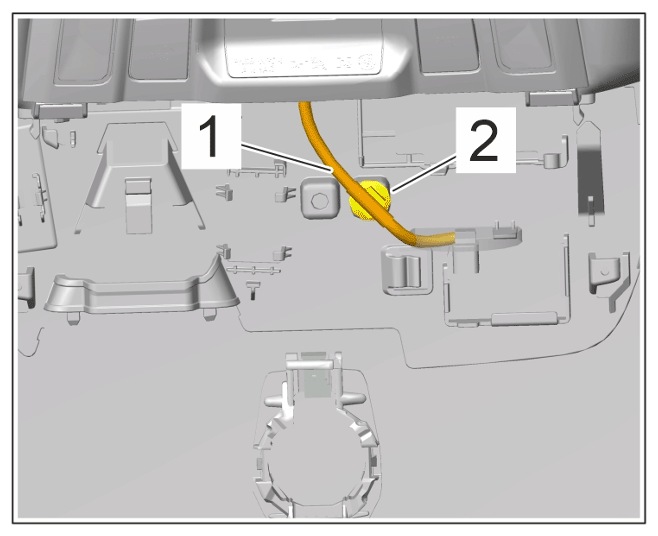

- Unclip wiring harness -1-
at clips -2-
.
clip
Information
- The general procedure for removing car windows can be found in
- Remove the windscreen using cutting wire > VAS 861 001A - window removal set
or cutting cord.
Information
- To prevent damage, make sure that the vehicle identification number (VIN) is completely masked by the protective film when piercing the adhesive bead.
- 2.1 The adhesive bead on the windscreen is pierced from the inside out in the vehicle identification number area.
