Removing Padding For Rear Backrest

Remove rear-seat headrests -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

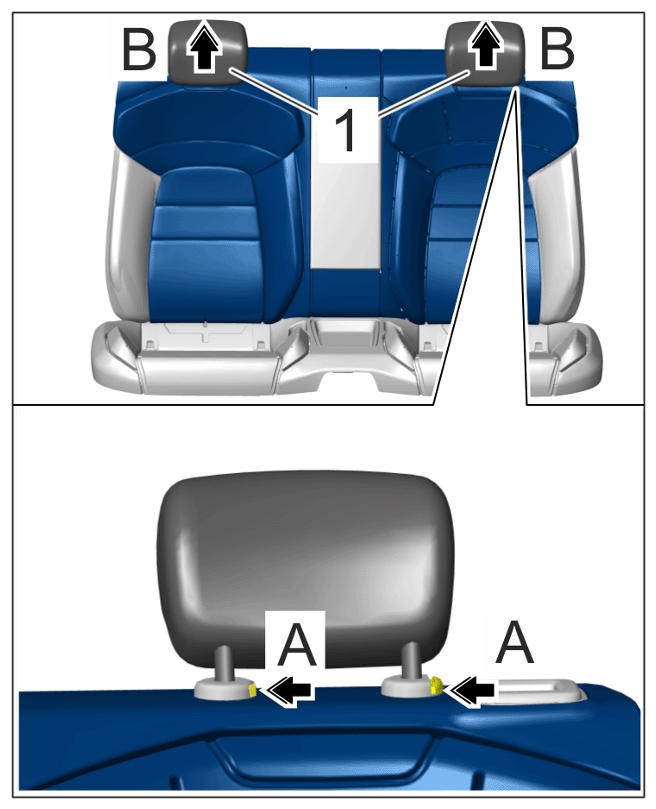

Headrests on rear seat
1. 1.1 Press release mechanism -Arrows A- .
2. 1.2 Pull headrests for rear seat -1- upwards -Arrows B- and remove them.
Detach cover for rear backrest -1- using a suitable tool -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

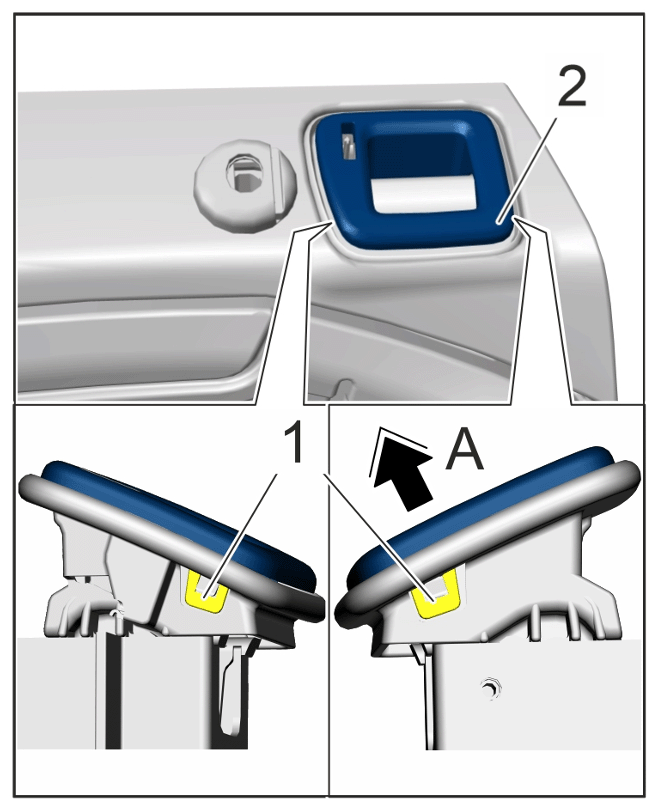

Cover for rear backrest
Releasing -1- and taking out the cover -2-Arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover
Fold padding for rear backrest -1- up -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Padding for rear backrest
Remove guide bushes -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

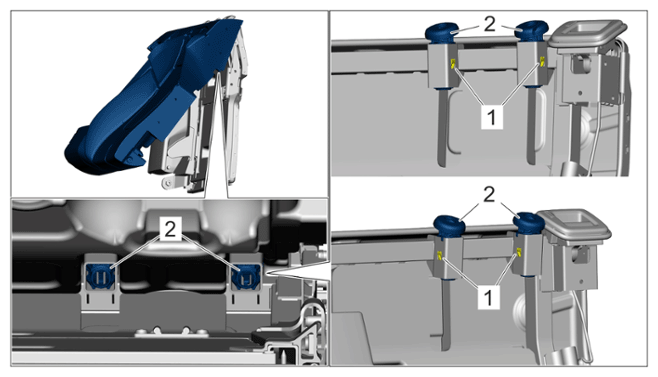

Guide bushes
1. 5.1 Release locking lugs -1- .
2. 5.2 Pull guide bushes -2- up and out.
Detach padding for rear backrest -1- all the way around -Arrows- and remove together with cover for rear backrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

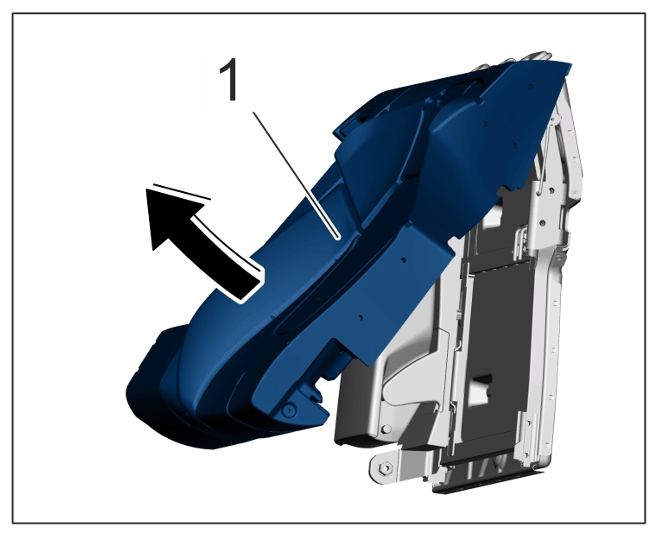

Padding for rear backrest
