Removing Padding For Front Seat

Information

Shown on the left side.

Right side same as left side.

Information

Make sure not to trap or damage the wire harness when pulling it through.

1. Move the seat up fully.
2. Extend seat surface extension fully.

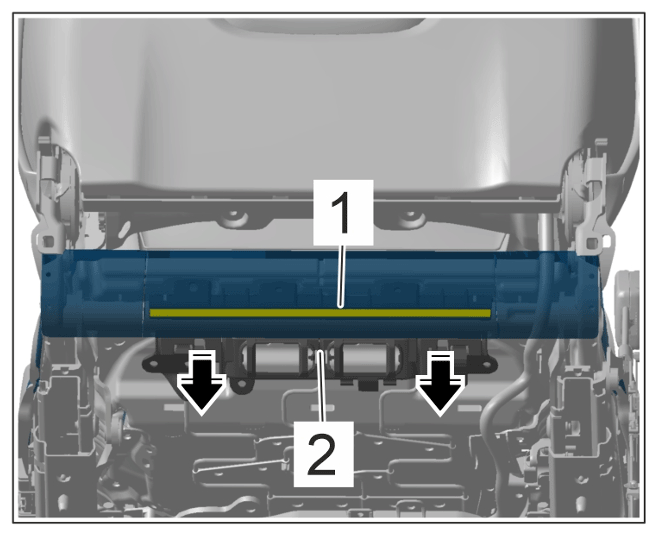

3. Detach rear clamping strip -1-  from cover holder -2-  (-Arrows-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear clamping strip

   Information

   If there is no heating element - depending on equipment, disconnect electric plug connection.

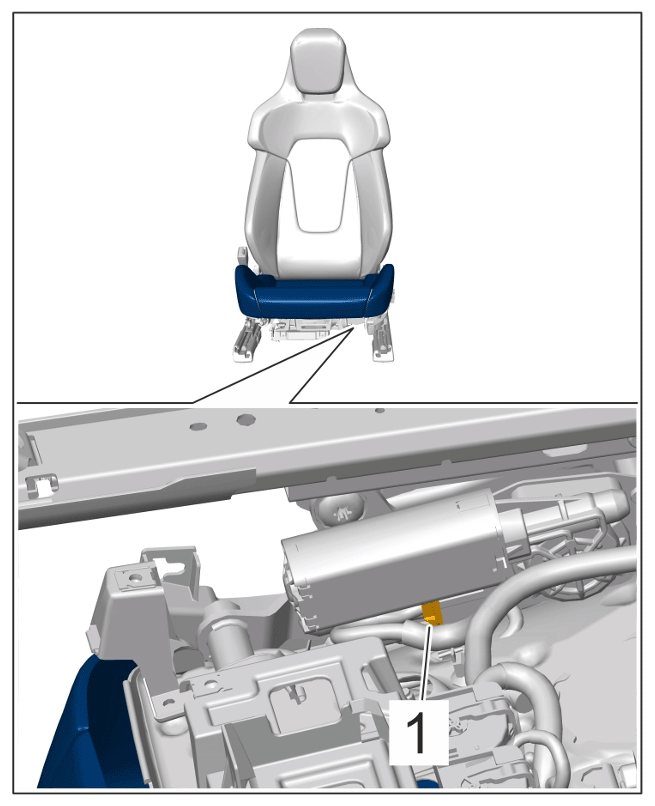

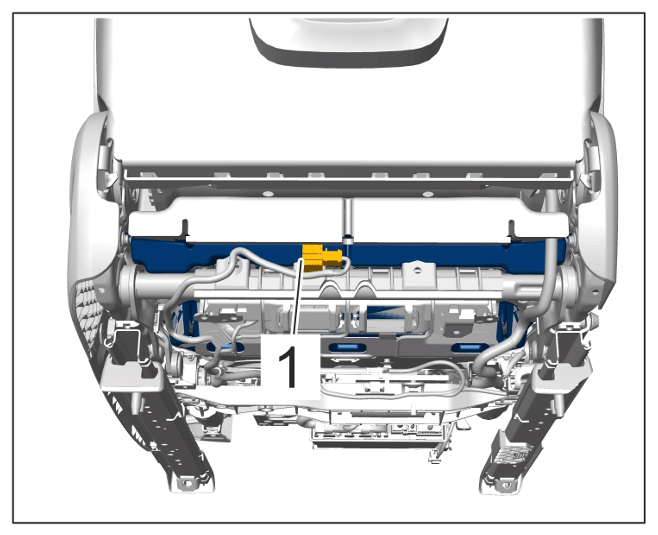

4. Release and disconnect electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

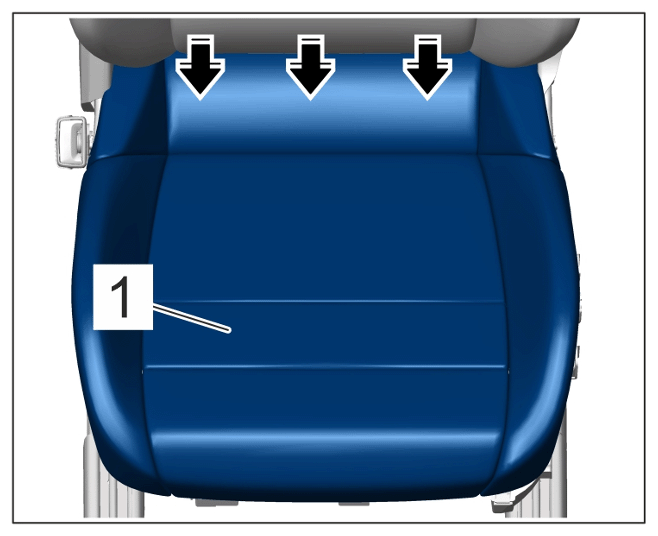

5. Guide front seat cover -1-  through towards the seat surface -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

6. Unclip clips -1-  and fold cover -2-  over towards the seat surface.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front seat at the sides

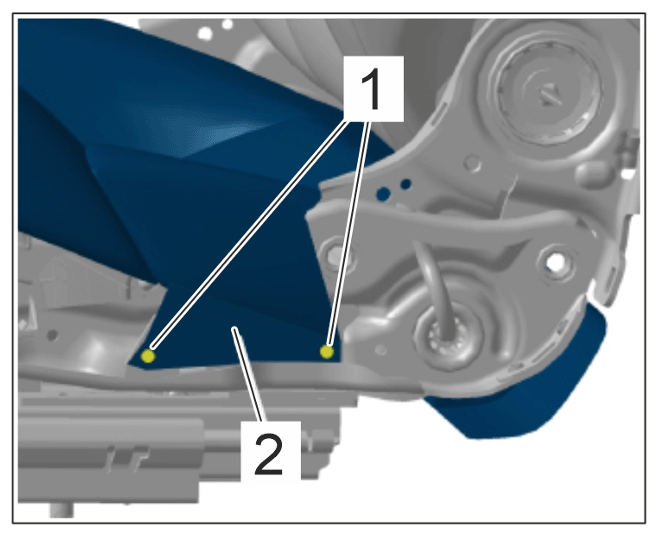

7. Unscrew screws -1-  and remove trim panel holder -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

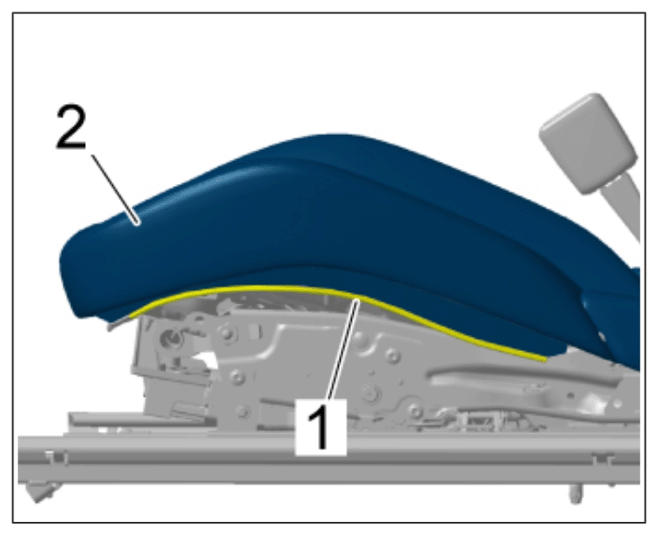

8. Disengage clamping strip at the sides -1-  and detach cover for front seat -2-  from the seat frame.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clamping strip at the sides

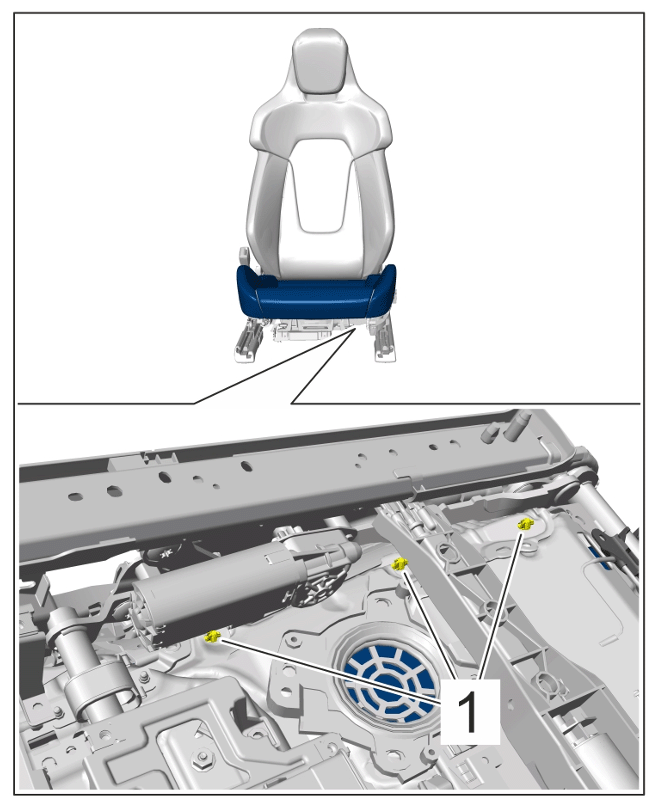

9. Release and unclip clips -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clips

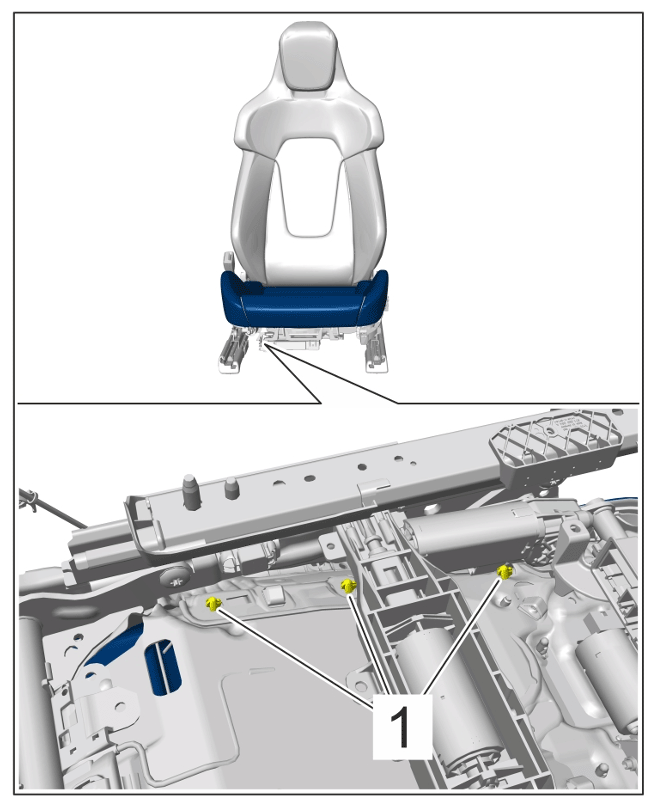

10. Release and unclip clips -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips

11. Release and disconnect electric plug connection -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

12. Unclip trim panel -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel

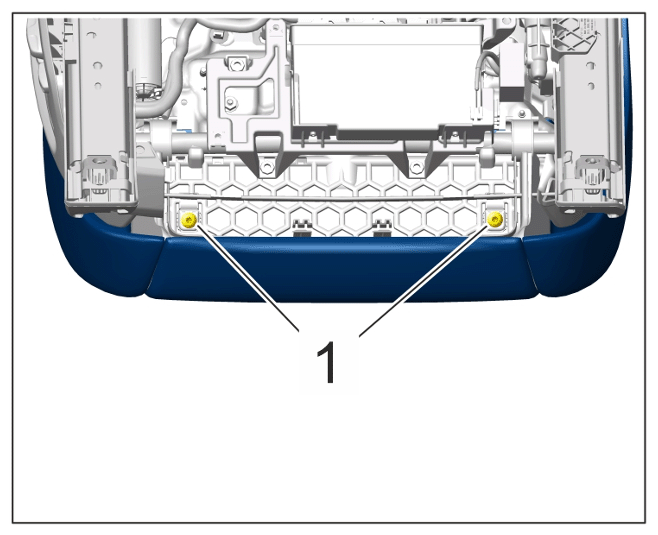

13. Unscrew screws -1-  and fold cushion for seat surface extension upwards.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

14. Detach padding for front seat.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clamping strip

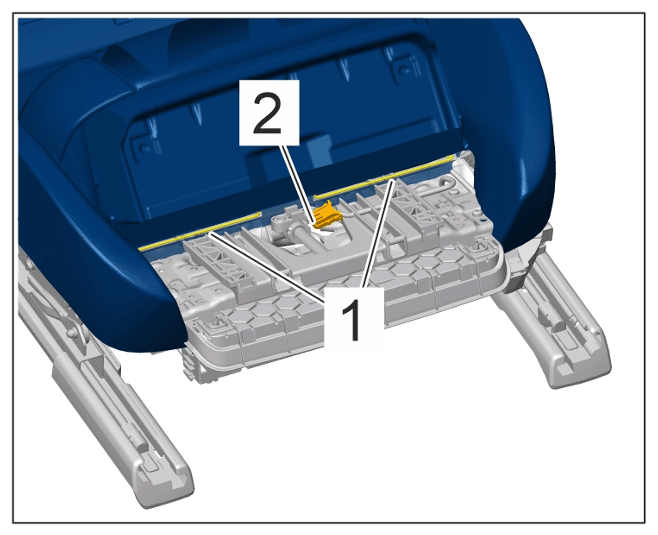

    1. 14.1 Disengage clamping strip on front seat surface extension -1-  .
    2. 14.2 Release and disconnect electric plug connection -2-  .
15. Remove padding for front seat with cover.
