Removing Trim Panel For Rear Lid

Information

To prevent damage, use a suitable tool as a support during removal at accessible connection points.

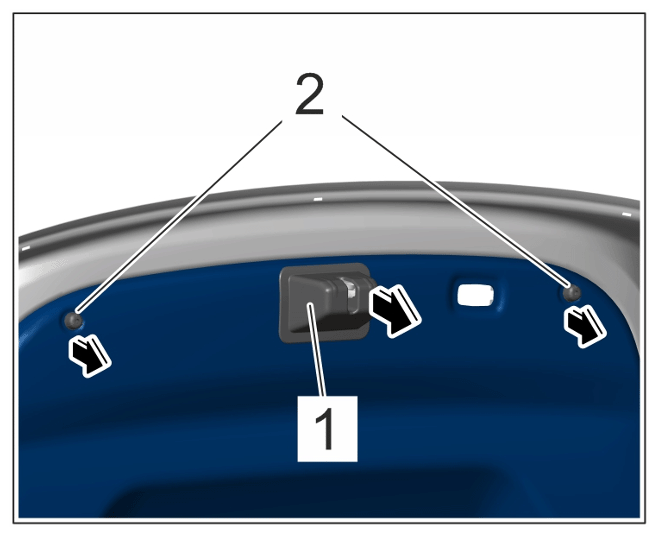

1. Unclip trim panel for rear lid lock -1-  and rubber stop -2-  (-Arrows-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Trim panel for rear lid lock

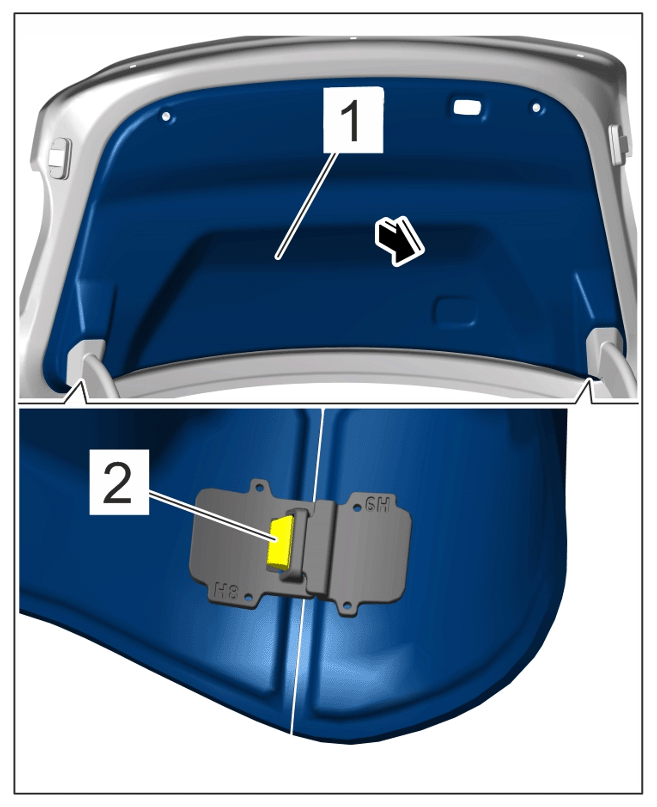

2. Remove trim panel for rear lid -1-  .
   1. 2.1 Unclip slit on hinge column -2-  .
   2. 2.2 Unclip trim panel for rear lid -1-  all the way around and remove it -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Trim panel for rear lid
