Removing Front Door Panel

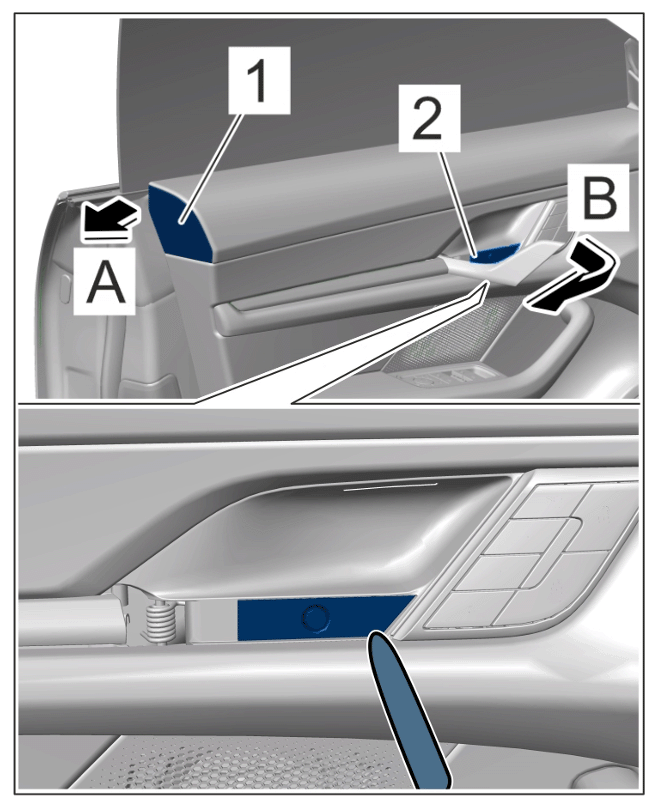

  1. Remove covers -1-  and -2-  .
    G15565002Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Covers

    1. 1.1 Unclip cover -1-  (-arrow A-  ).
    2. 1.2 Unclip cover -2-  (-arrow B-  ).

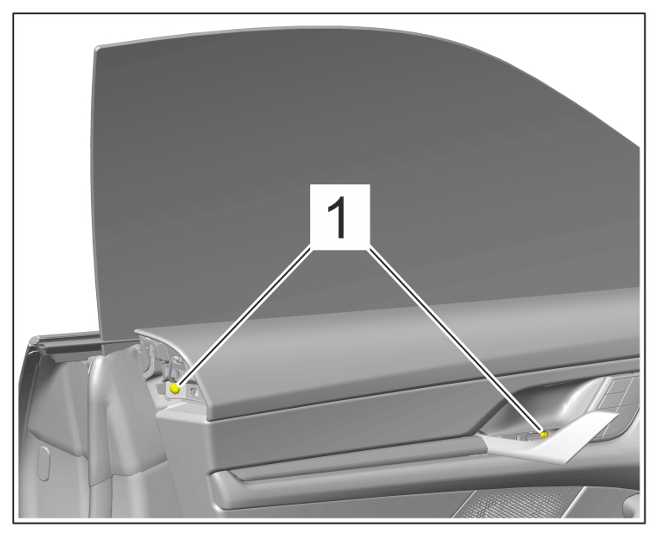

  2. Unscrew and remove screws -1-  .
    G15565003Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

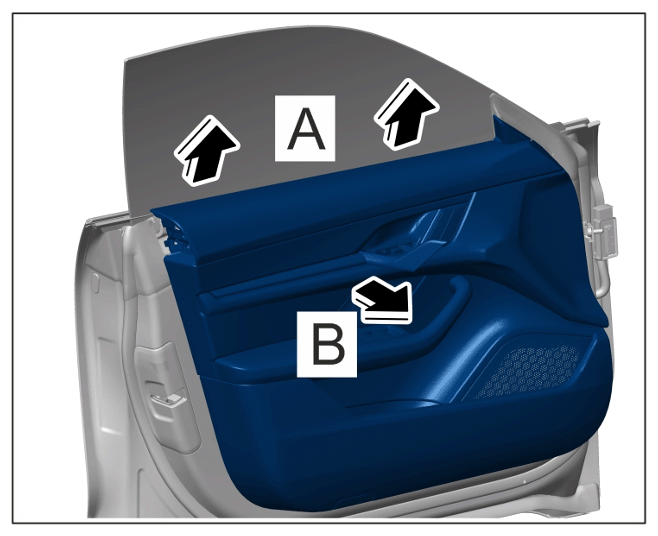

  3. Remove front door panel by pulling it up out of the brackets -arrows A-  and tilt it to the rear -arrow B-  .
    G15565004Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Door panel

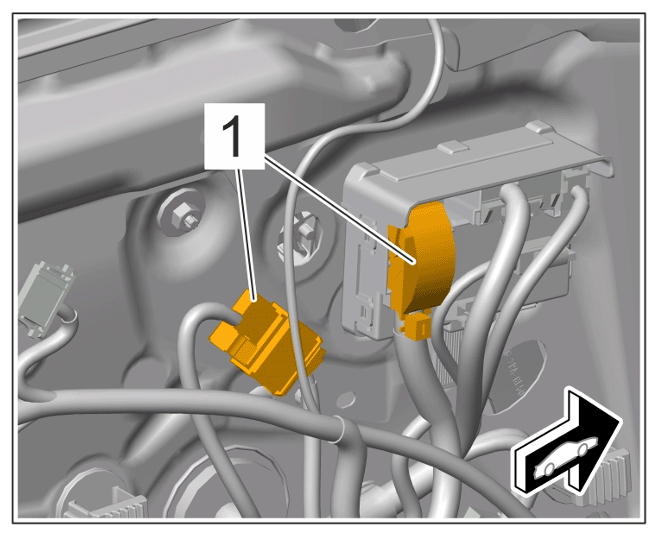

  4. Release and unplug electric plug connections -1-  .
    G15565005Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

  5. Disengage bowden cable from inner door release.

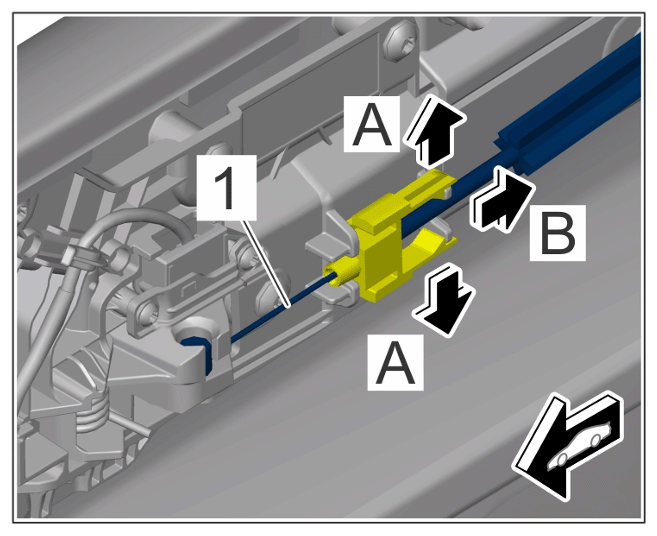

    1. 5.1 Unclip bowden cable -1-  (-arrows A-  ) and remove clip from door panel -arrow B-  .
      G15565006Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Bowden cable

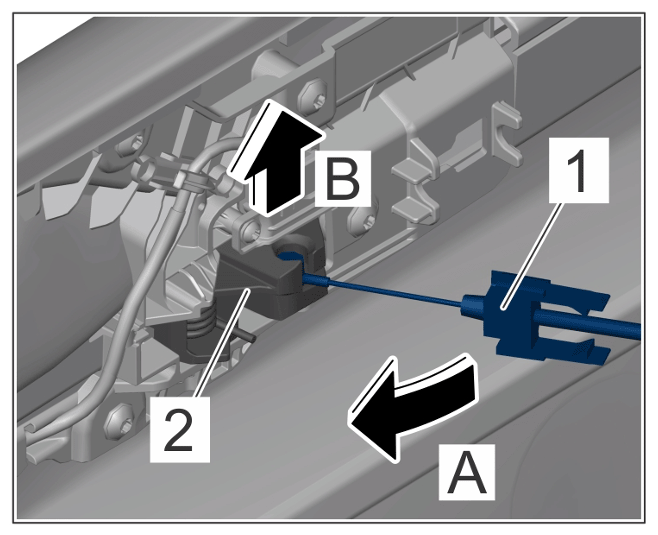

    2. 5.2 Turn bowden cable -1-  towards the front -arrow A-  and disengage it from the inner door release -2-  by pulling it upwards -arrow B-  .
    G15565007Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bowden cable

  6. Remove front door panel.
