Removing Trim Panel For Dashboard (Passenger's Side)

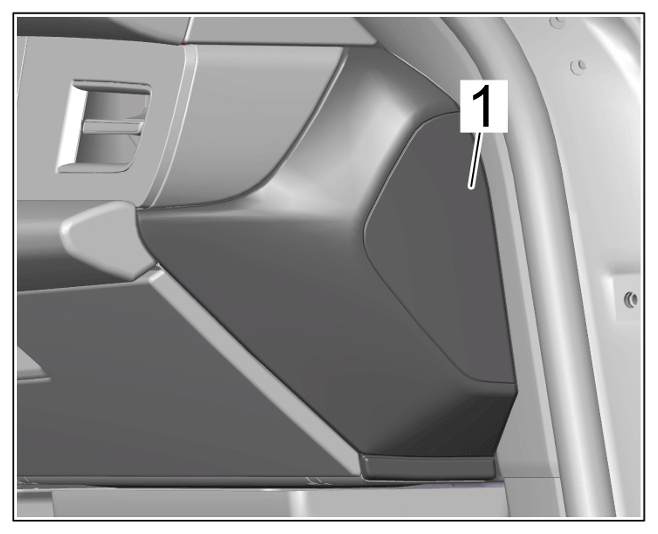

Unclip trim panel -1- using a plastic wedge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel

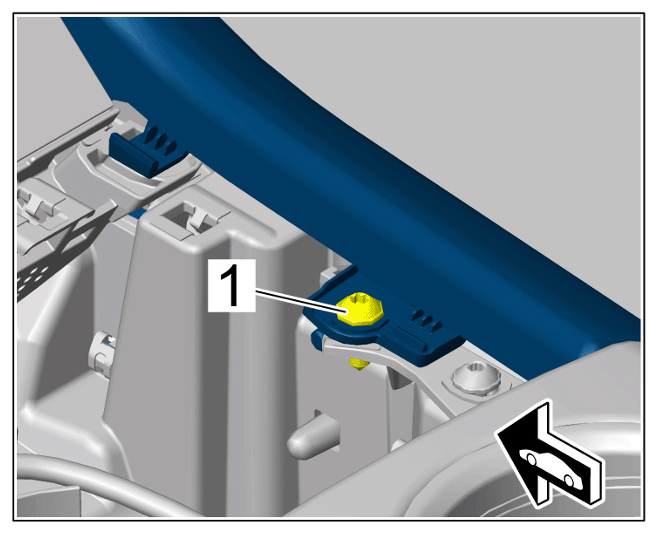

Unscrew centre screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre screw

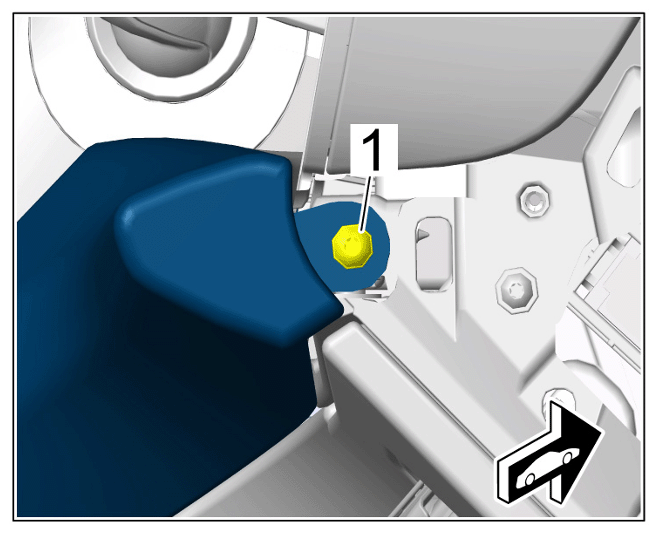

Unscrew screw at the sides -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side screw
Open the glove compartment.

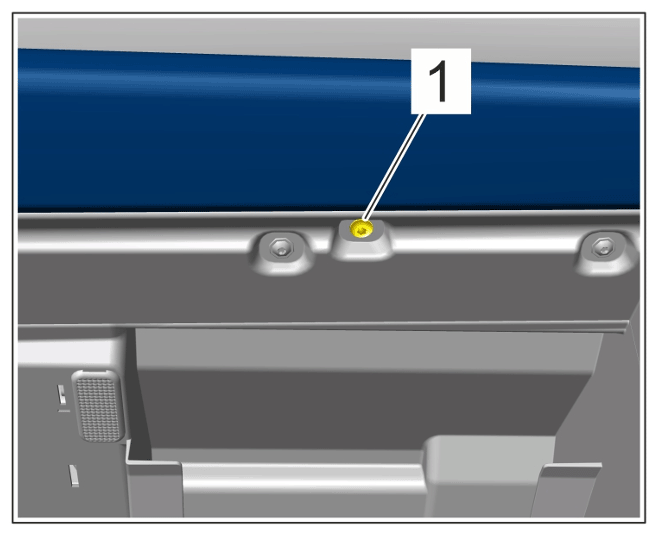

Unscrew screw -1- in the glove box.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

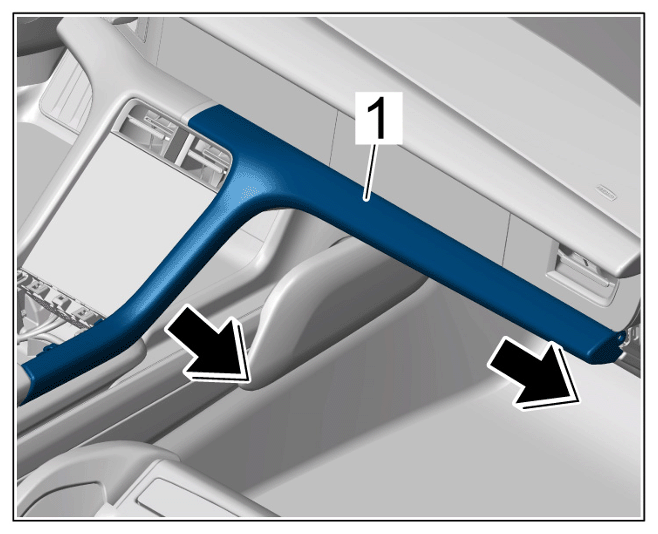

Unclip trim panel for dashboard (passenger's side) -1- (-Arrows- ) and remove.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel for dashboard (passenger's side)
