Removing Trailer Hitch Control Unit

  1. Release and disconnect electric plug connections.

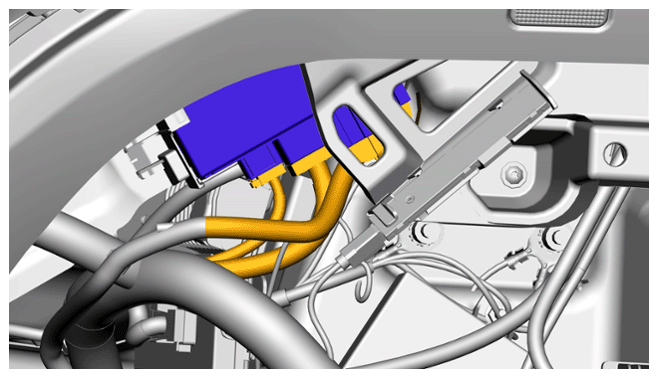

    G15564442Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Unclip trailer hitch control unit from holder.

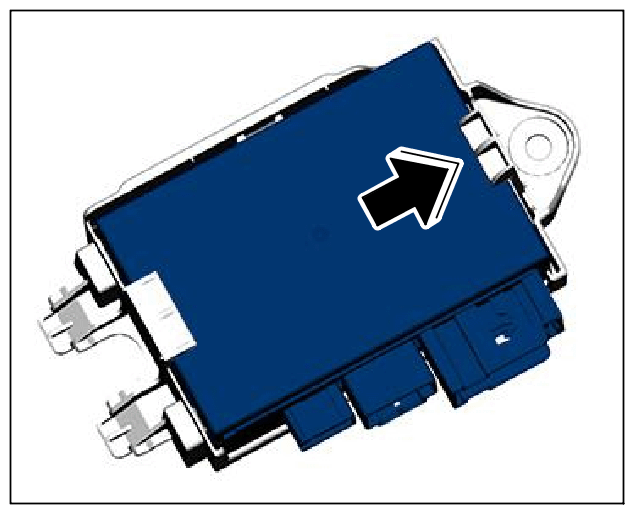

G15564443Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trailer hitch control unit
