Removing Trim Frame For Side Window

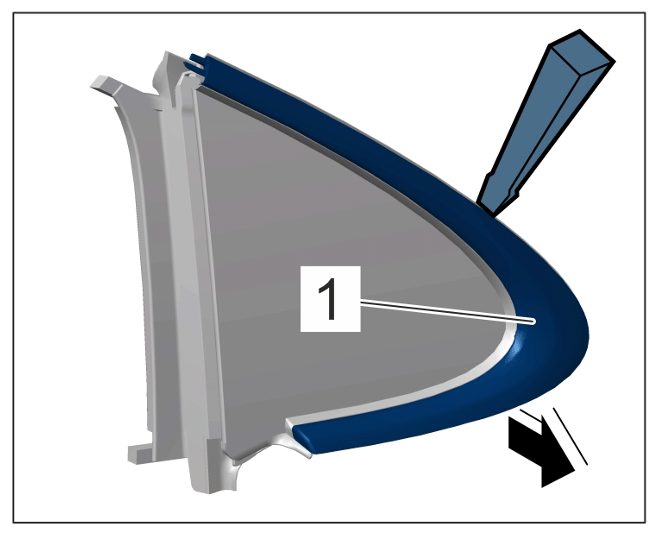

  1. Carefully unclip trim frame for side window -1-  using a plastic wedge and remove it -arrow-  .
G15564385Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side-window trim frames
