WM, 635719 Removing And Installing Rear Retaining Strip: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

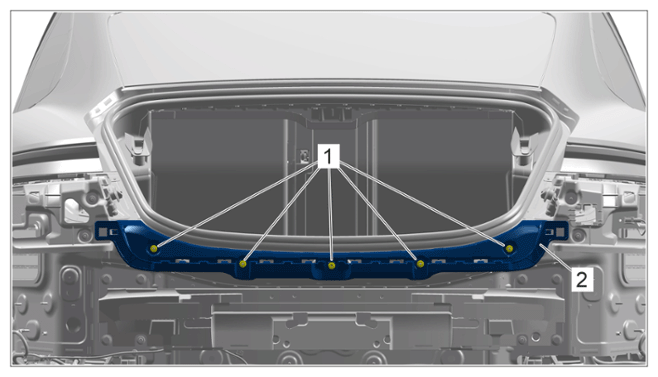

Nut securing rear retaining strip at the centre to rear end section	Item 1	Tightening torque	6 (4.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Centre retaining strip

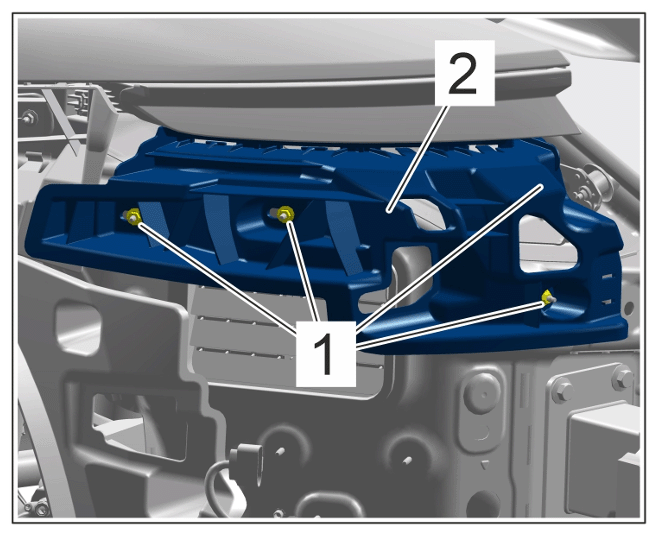

Nut securing rear retaining strip for tail light to corner piece in luggage compartment	Item 1	Tightening torque	6 (4.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Centre retaining strip

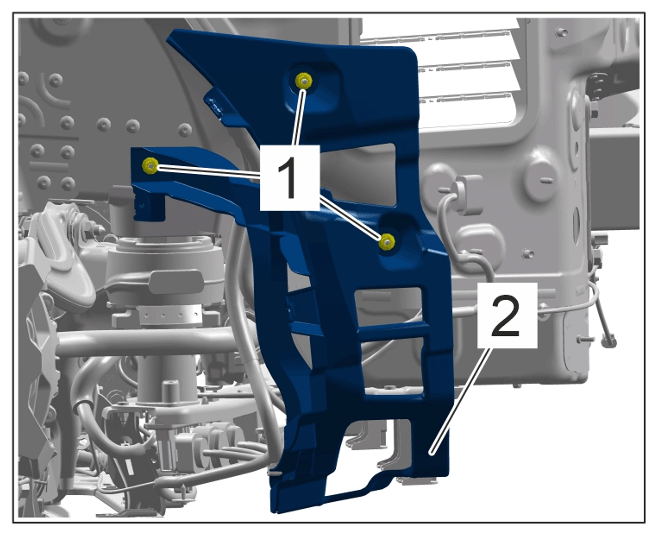

Nuts securing rear retaining strip at the sides to rear part of luggage compartment	Item 1	Tightening torque	6 (4.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side retaining strip

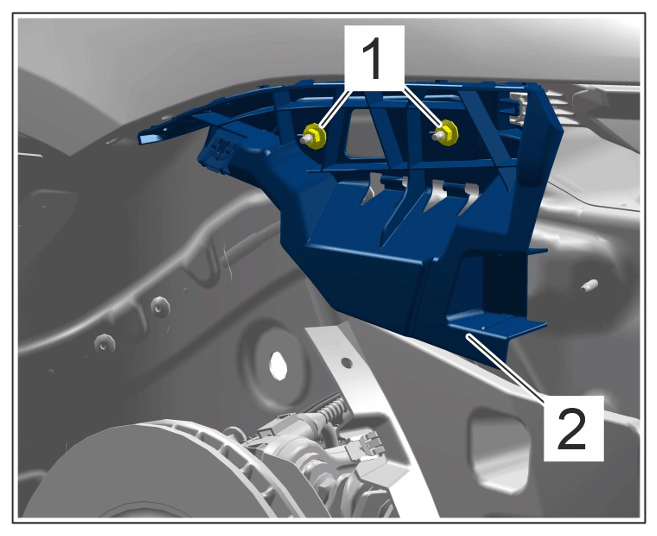

Nuts securing rear retaining strip at the sides to bottom of corner piece in luggage compartment	Item 1	Tightening torque	6 (4.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side retaining strip, bottom
