WM, 635519 Removing And Installing Rear Apron: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

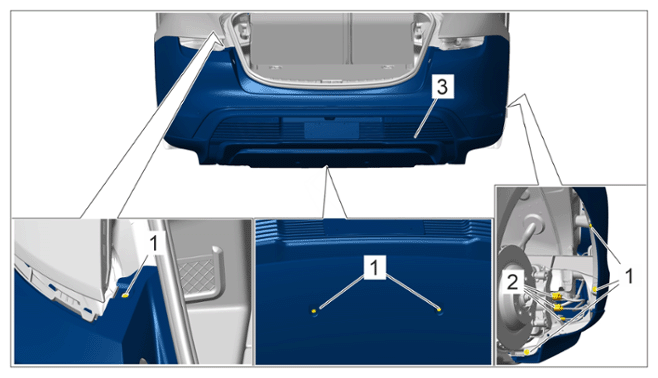

Screws securing rear apron to body	Item 1	Tightening torque	2.8 (2 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear apron

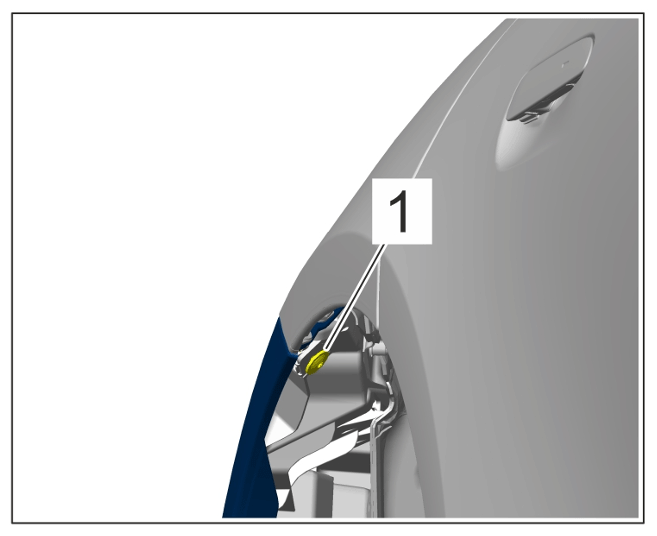

Top screw securing rear apron to body	Item 1	Tightening torque	6 (4.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

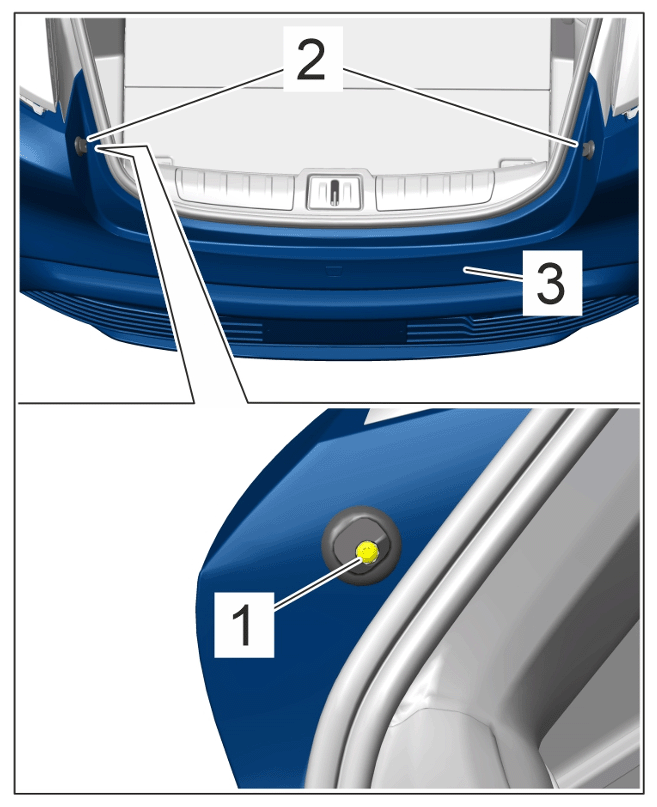

Screw securing guide pin to rear apron	Item 1	Tightening torque	6 (4.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Guide pin
