WM, 631519 Removing And Installing Front Apron: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

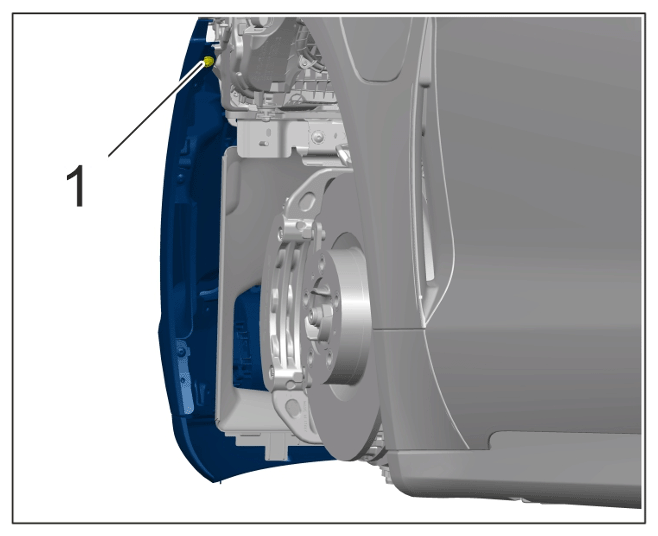

Screw securing front apron to front guide element	Item 1	Tightening torque	2.8 (2 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for wheel housing

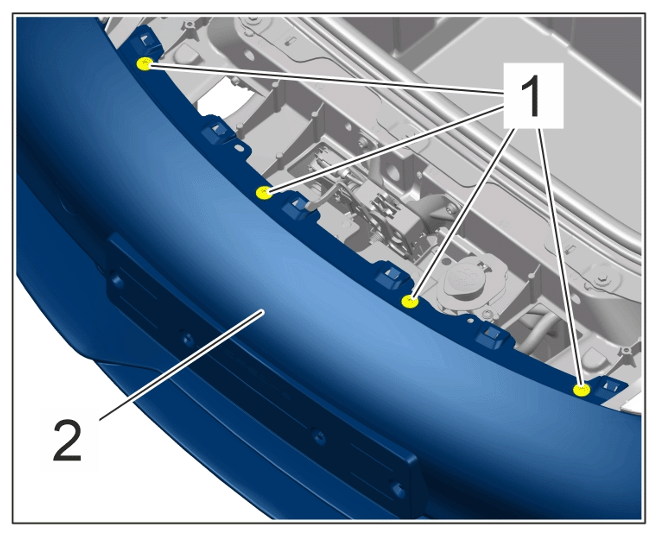

Screws securing front apron to bracket	Item 1	Tightening torque	5.5 (4 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on lock carrier

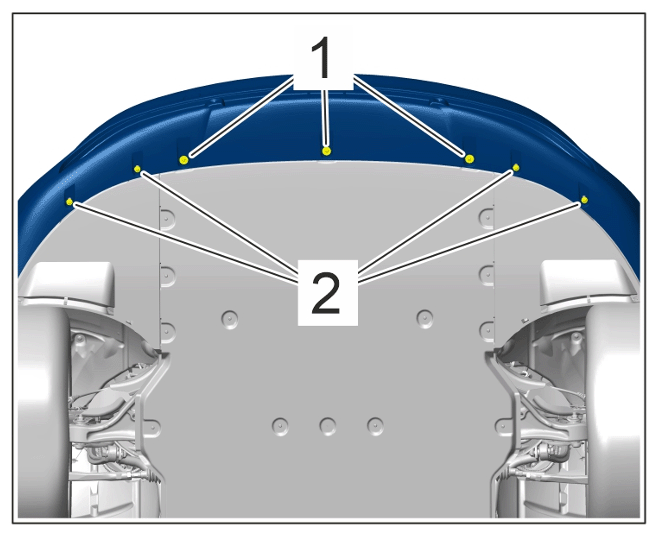

Side screws securing front apron to underbody cover	Item 2	Tightening torque	5.5 (4 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Centre screws securing front apron to underbody cover	Item 1	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
