WM, 5X00IN26 Replacing Coarse Threaded Bolts: Notes

Parts

PART NUMBER DESCRIPTION

TOOL DESCRIPTION

Tool denomination	Type	Tool number	Image

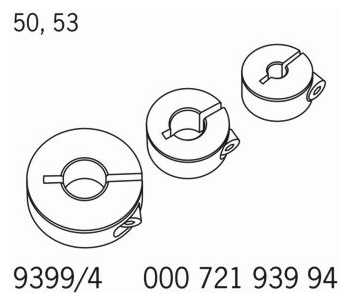

Set of setting collars	Special tool	> 9399/4	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

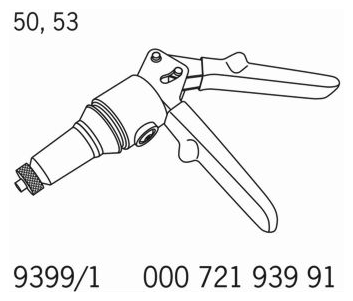

Riveting tool for ground pins	Special tool	> 9399/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

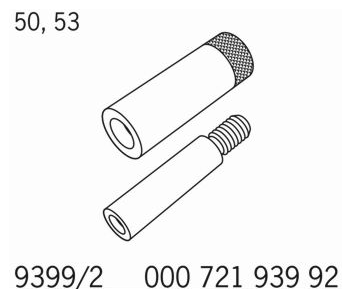

Threaded mandrel + mouth piece	Special tool	> 9399/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

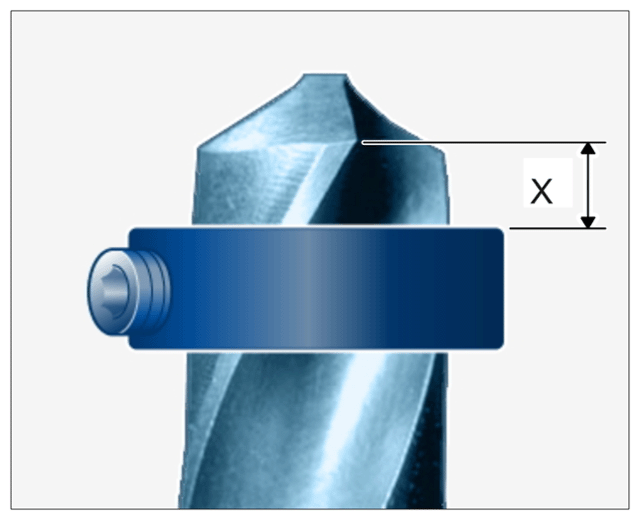

Drilling depth Courtesy of PORSCHE CARS NORTH AMERICA, INC. Drilling depth	X	Length	3.0 mm
Drill bit		Diameter	4.0 mm
Drill bit		Diameter	7.0 mm
Drill bit		Diameter	9.0 mm
