WM, 5X00IN25 Making Ground Connections: Notes

Parts

PART NUMBER DESCRIPTION

Part number	Description	Addition	Quantity
> 99907354901	COUNTERSUNK SCREW 999.073.549.01
> 90037700301	HEXAGON NUT 900.377.003.01
> 99907354901	COUNTERSUNK SCREW 999.073.549.01
> 90037700301	HEXAGON NUT 900.377.003.01
> 99950019601	BLIND RIVET NUT 999.500.196.01
> 99907354901	COUNTERSUNK SCREW 999.073.549.01

Tools

TOOL DESCRIPTION

Tool denomination	Type	Tool number	Image

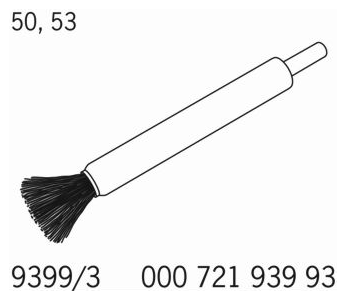

end brush	Special tool	> 9399/3	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

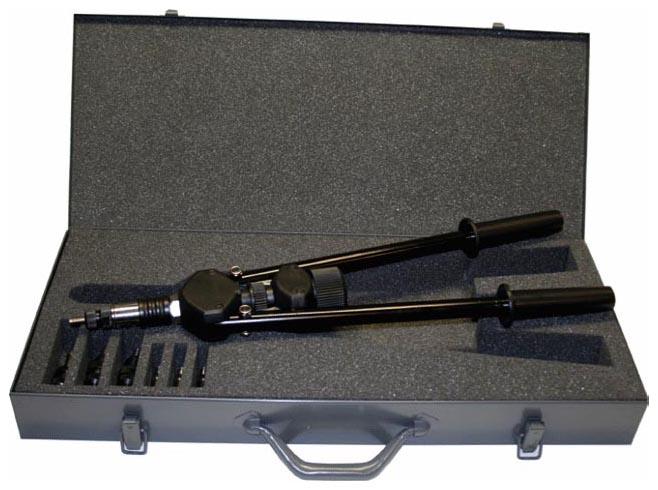

Pop Rivet Nut Pliers	Vehicle-specific workshop equipment	> V.A.G 1765C	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Drill bit		Diameter	4 mm
Drill bit		Diameter	8 mm
Threaded joint for ground connection	Tightening torque	15 (11 ftlb.) Nm
Drill bit		Diameter	4 mm
Drill bit		Diameter	11 mm
Threaded joint for ground connection		Tightening torque	15 (11 ftlb.) Nm
