WM, 5X00IN Technical Values: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2

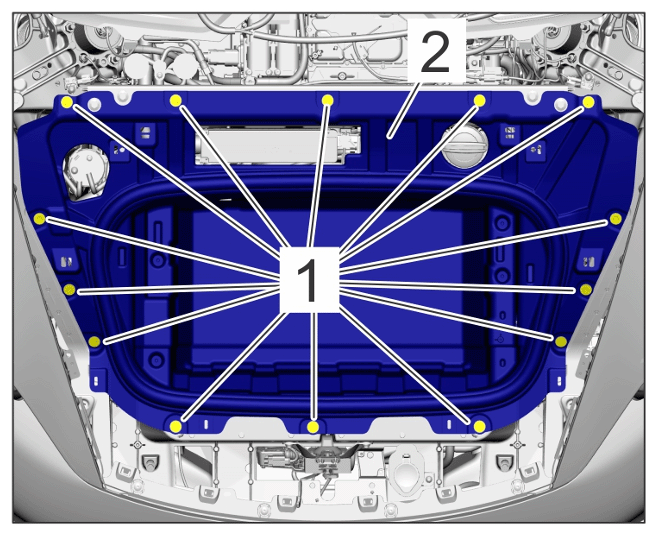

Screws securing luggage compartment liner to body
G14404922Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pan		 Item 1 Tightening torque 8 (6 ftlb.) Nm

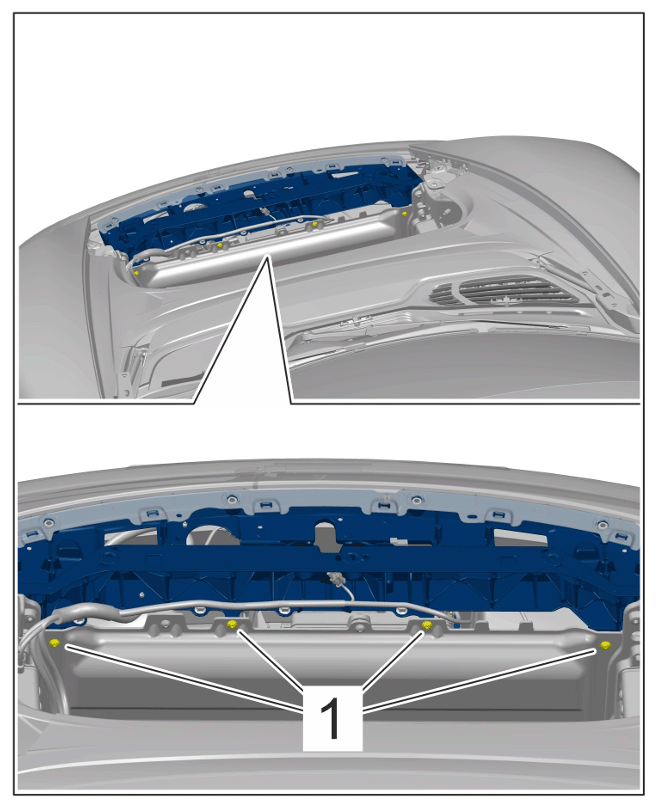

Screws securing pull strap to lock carrier
G14404923Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 8 (6 ftlb.) Nm
Screws securing lock carrier to impact absorber
G14404924Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 20 (15 ftlb.) Nm

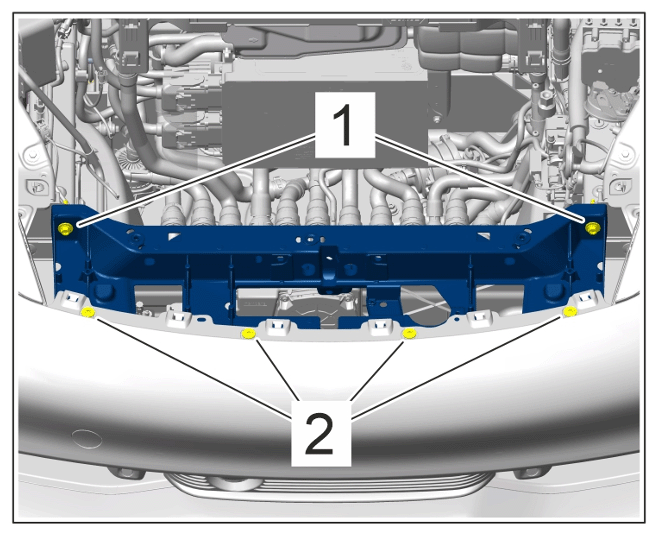

Screws securing front apron to lock carrier
G14404925Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 2 Tightening torque 5.5 (4 ftlb.) Nm

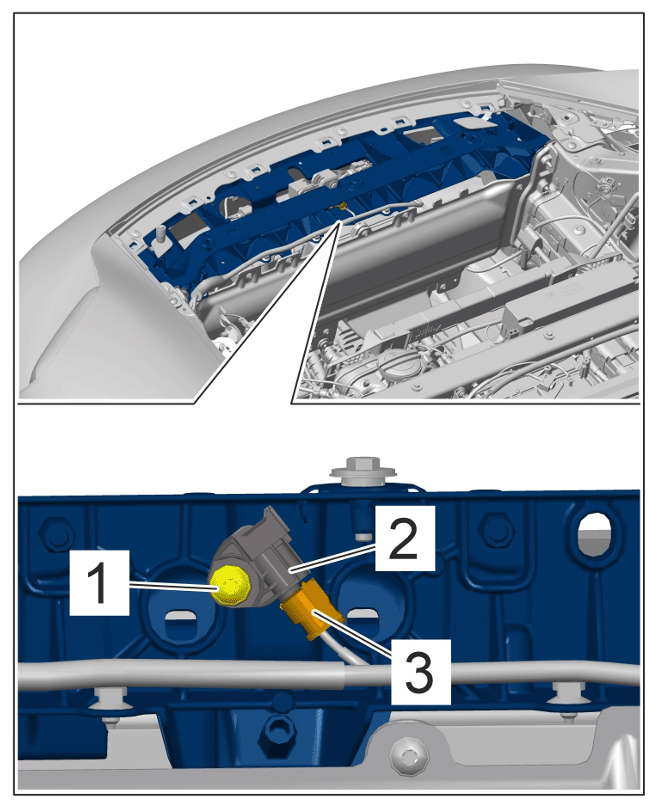

Screw securing sensor to lock carrier
G14404926Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front sensor		 Item 1 Tightening torque 9 (6.5 ftlb.) Nm

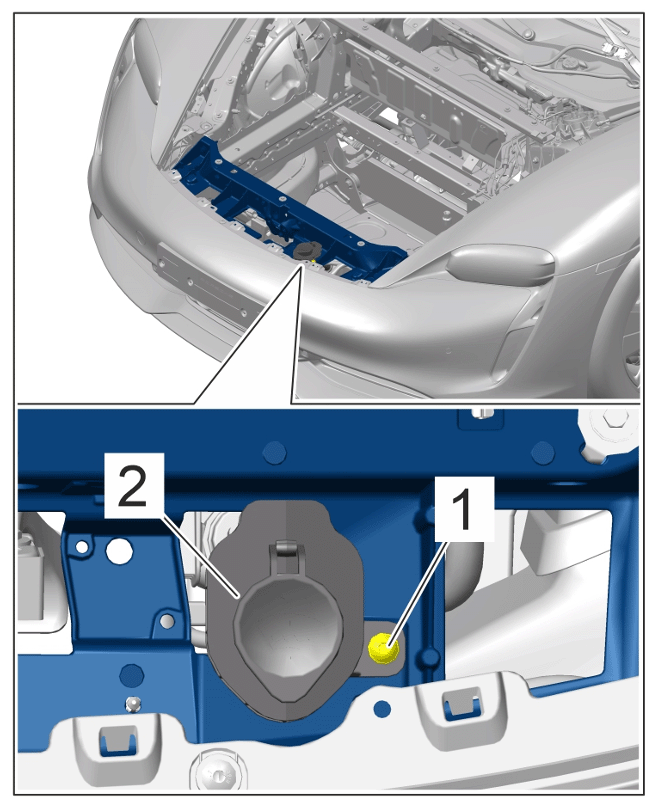

Screw securing washer-fluid reservoir to lock carrier
G14404927Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Washer-fluid reservoir		 Item 1 Tightening torque 9 (6.5 ftlb.) Nm

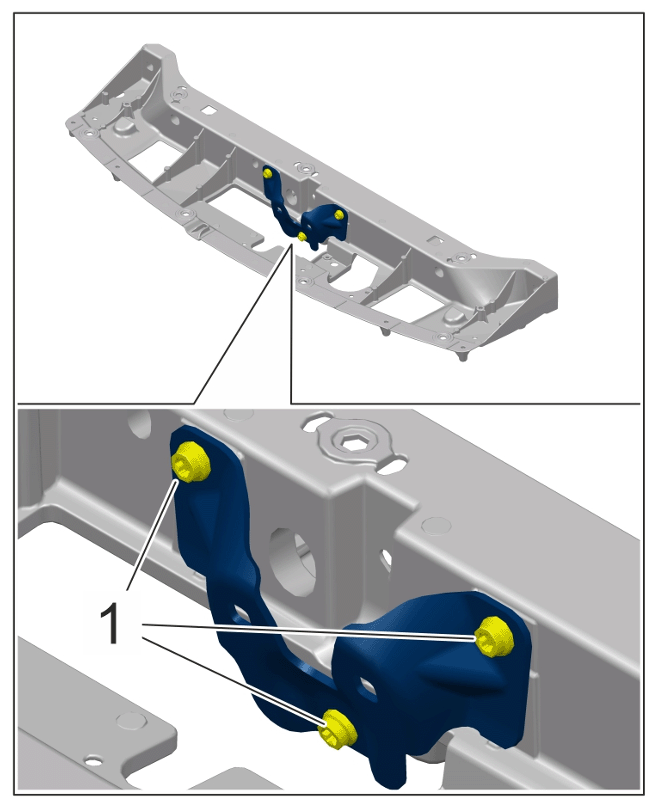

Screw securing bracket reinforcement to lock carrier
G14404928Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 13 (9.5 ftlb.) Nm

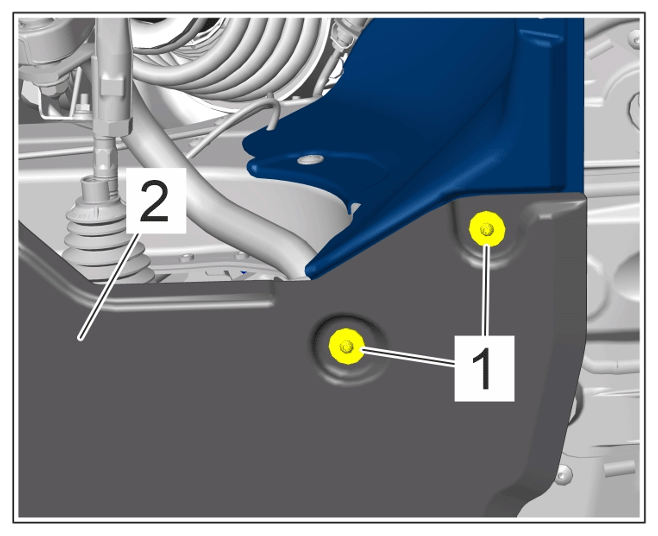

Bottom screws securing front wheel housing liner to underbody cover
G14404929Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm

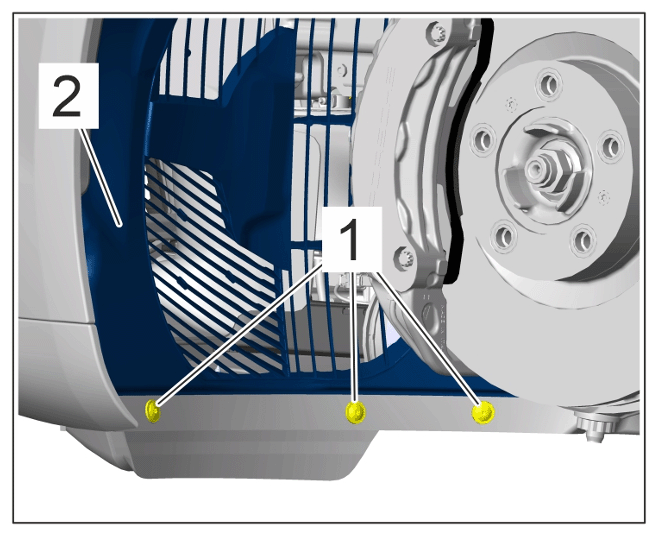

Bottom screws securing front wheel housing liner to front apron
G14404930Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom screws		 Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm

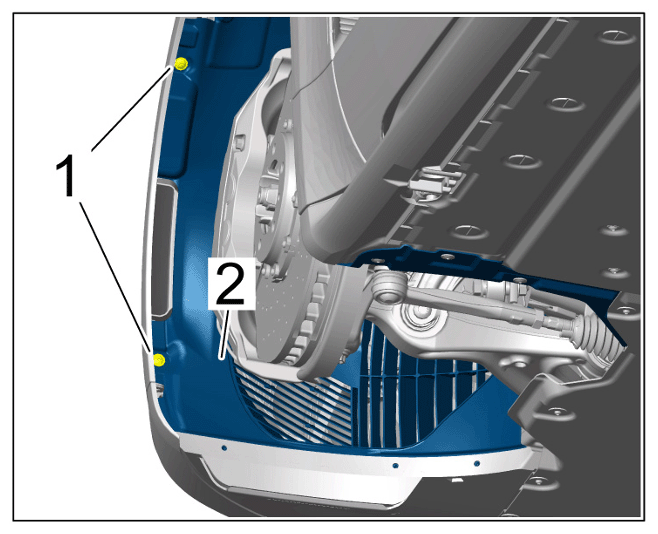

Side screws securing front wheel housing liner to body
G14404931Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm

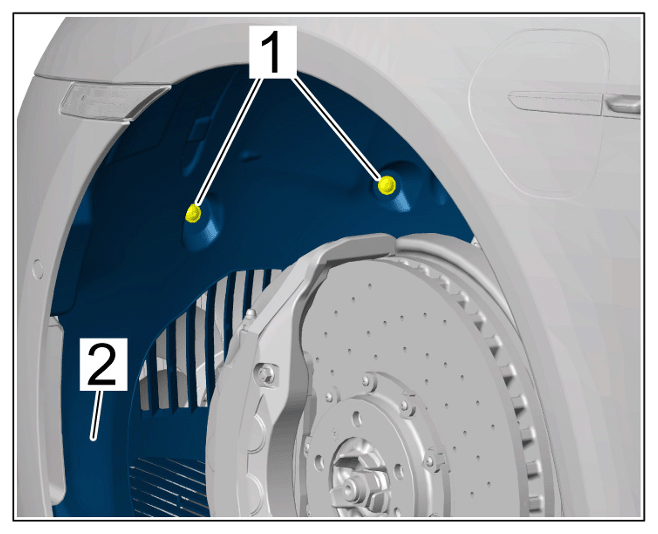

Top screws securing front wheel housing liner to body
G14404932Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm

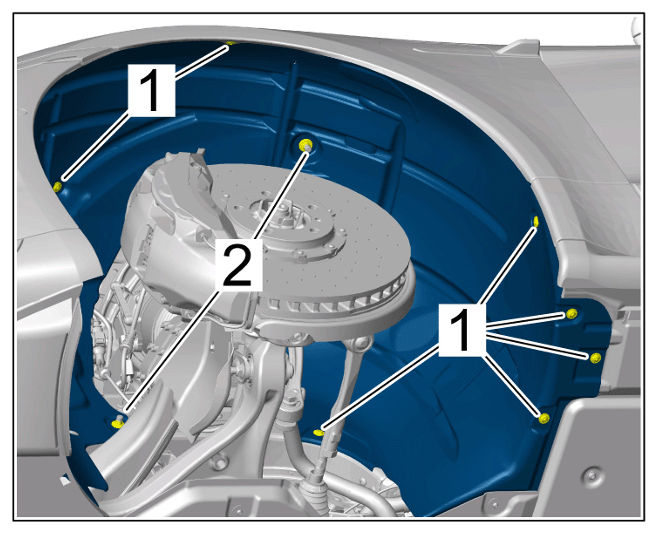

Bottom screws securing front wheel housing liner to body
G14404933Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
Bottom nuts securing front wheel housing liner to body
G14404934Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 2 Tightening torque 2.5 (1.75 ftlb.) Nm

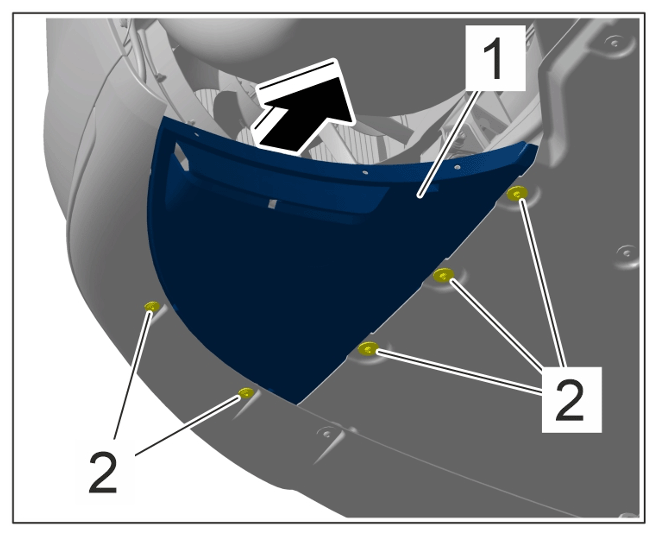

Screws securing front wheel housing liner (front section) to front apron and front underbody panelling
G14404935Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wheel housing liner (front section)		 Item 2 Tightening torque 2.5 (1.8 ftlb.) Nm
Bolt securing cross member to body (front)
G14404936Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts near steering gear		 Initial tightening/Item 1/Always replace bolts following removal Tightening torque 40 (30 ftlb.) Nm

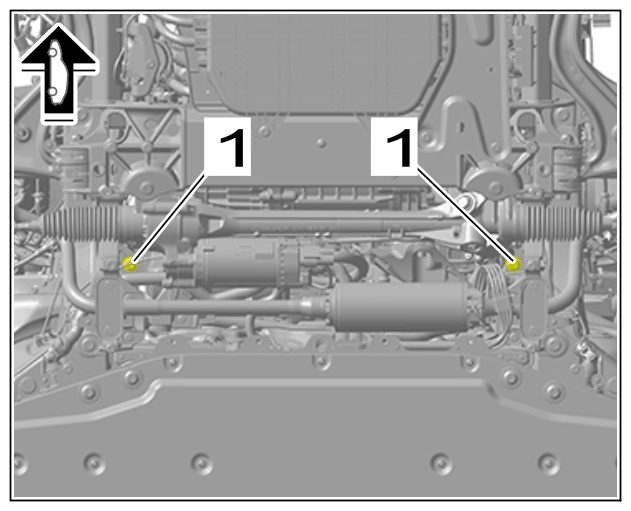

Bolt securing cross member to body (front)
G14404937Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts near steering gear		 Final tightening/Item 1/Always replace bolts following removal Torque angle + 90 °

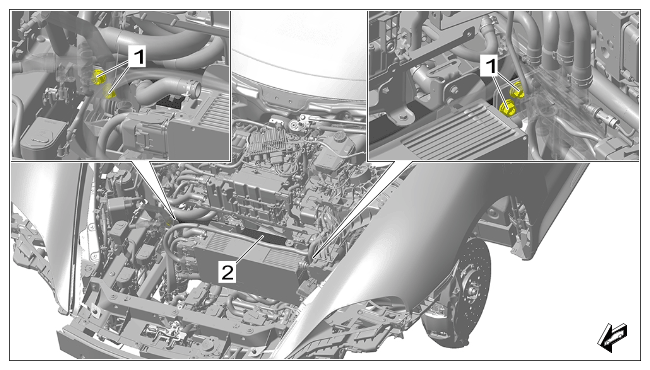

Bolt securing cross member to body (bottom)
G14404938Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross member bolts		 Initial tightening/Item 1/Always replace bolts following removal Tightening torque 50 (37 ftlb.) Nm
Bolt securing cross member to body (bottom)
G14404939Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross member bolts		 Final tightening/Item 1/Always replace bolts following removal Torque angle + 180 °

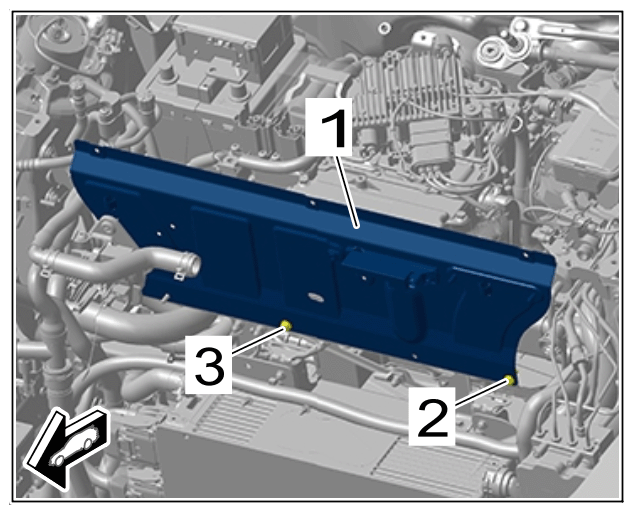

Nut securing cross panel to body
G14404940Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross panel		 Item 3 Tightening torque 8 (6 ftlb.) Nm
Screw securing cross panel to body
G14404941Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross panel		 Item 2 Tightening torque 5 (3.5 ftlb.) Nm

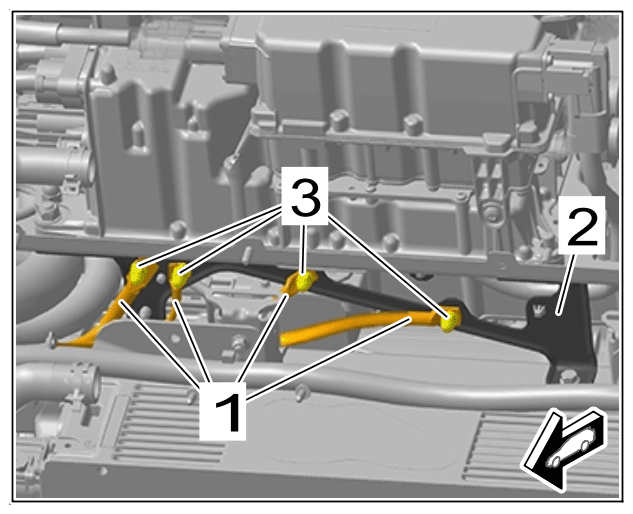

Nut securing ground lines to floor plate
G14404942Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground lines to floor plate		 Item 3 Tightening torque 8 (6 ftlb.) Nm

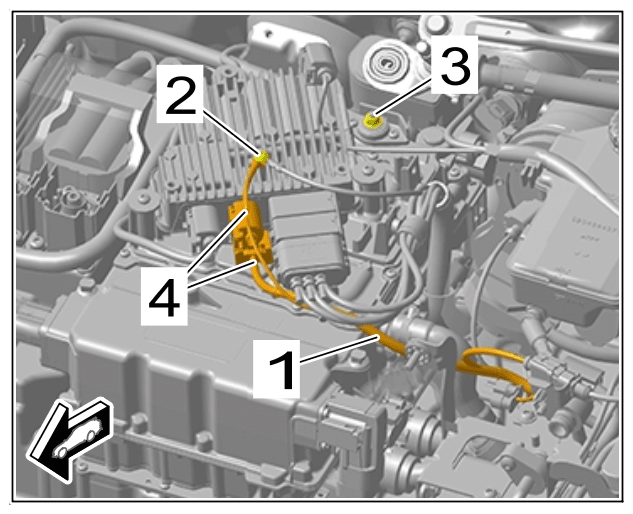

Nut on front PDCC ground line
G14404943Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness near brake fluid reservoir		 Item 3 Tightening torque 5 (3.5 ftlb.) Nm

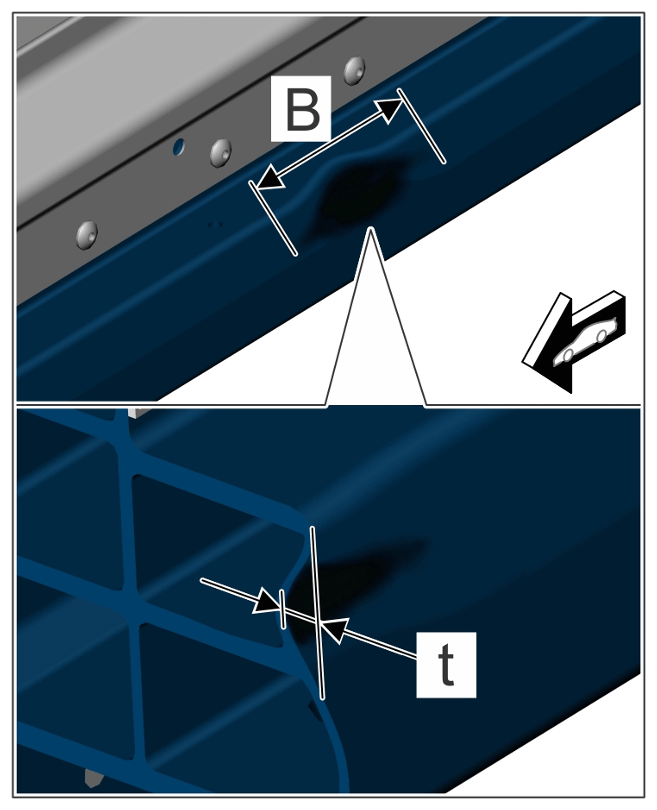

Maximum damage width - deformation
G14404944Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Damage width		 Item B Length 90 mm
Maximum damage depth
G14404945Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Damage depth		 Item t Length 10 mm

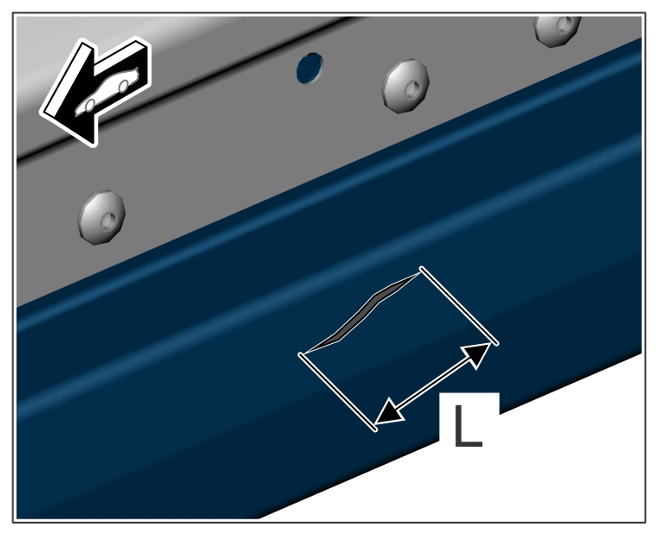

Maximum crack length
G14404946Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crack length		 Item L Length 20 mm

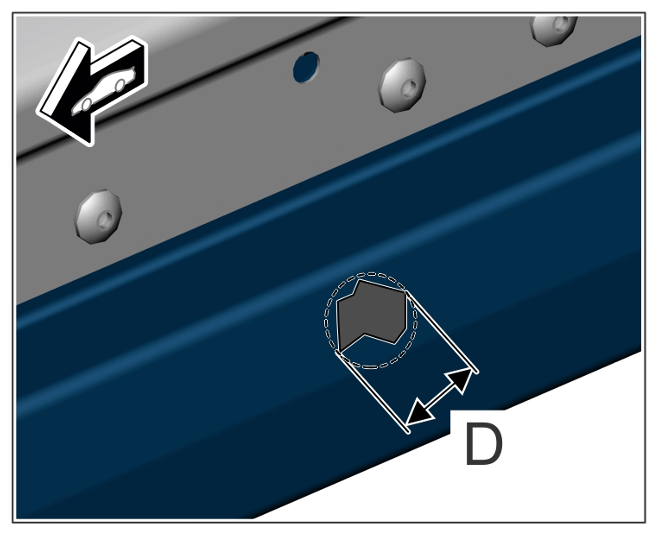

Maximum hole diameter
G14404947Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hole diameter		 Item D Diameter 10 mm
Nuts securing dashboard bracket to body
G14404948Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts at the sides		 Item 2 Tightening torque 20 (15 ftlb.) Nm

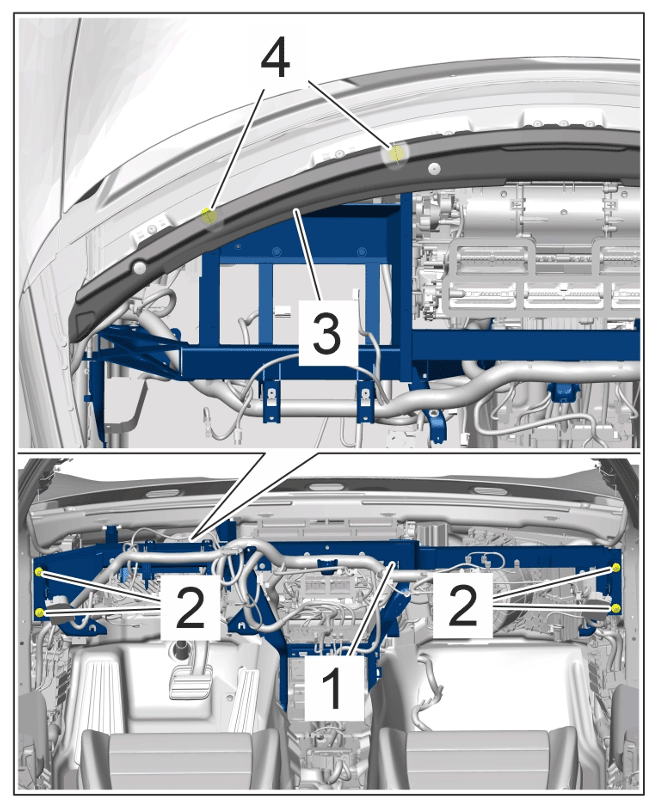

Screws securing dashboard bracket at the top to body
G14404949Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Top screws		 Item 4 Tightening torque 20 (15 ftlb.) Nm

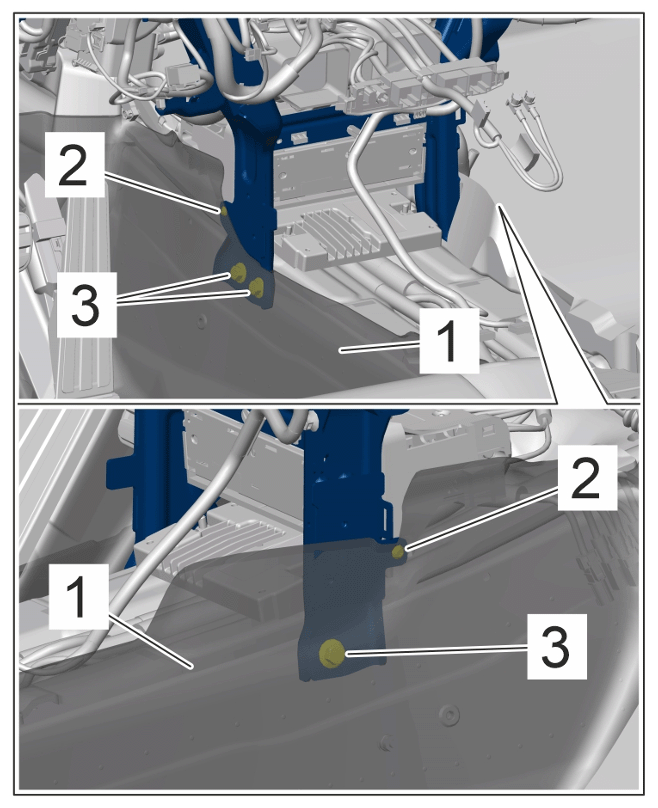

Screws securing dashboard bracket at the bottom to body
G14404950Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom screws		 Item 3 Tightening torque 20 (15 ftlb.) Nm

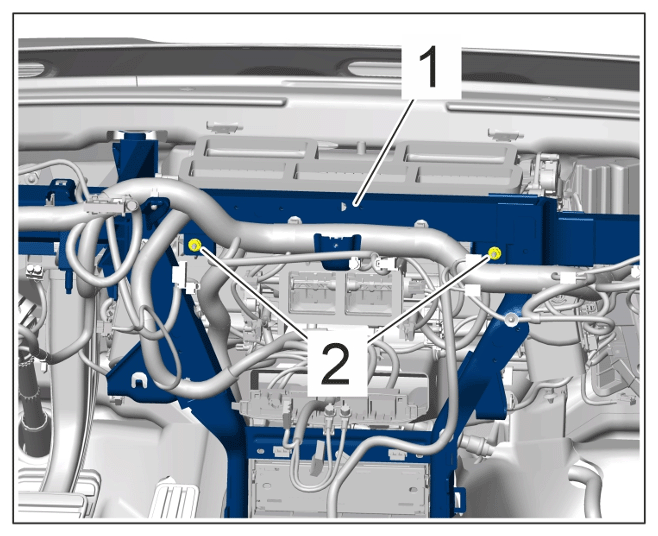

Nuts securing dashboard bracket to heater/air-conditioning unit
G14404951Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts		 Item 2 Tightening torque 8 (6 ftlb.) Nm

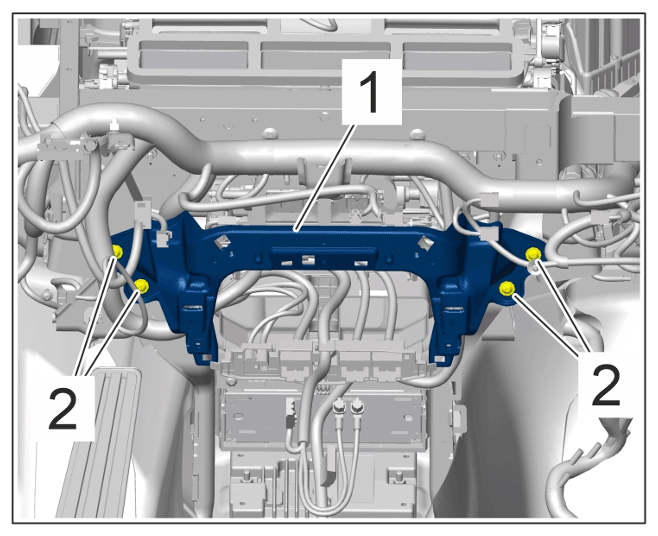

Screws securing centre console holder to dashboard bracket
G14404952Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre console holder		 Item 2 Tightening torque 4 (3 ftlb.) Nm

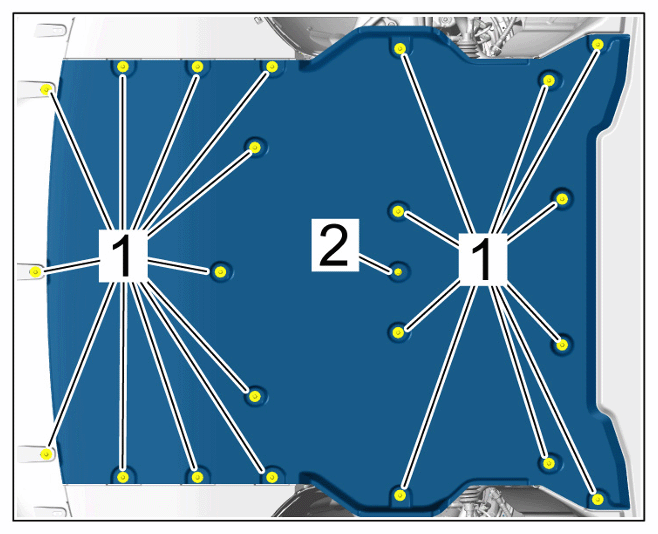

Screws securing underbody cover to body
G14404953Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 2.5 (1.8 ftlb.) Nm

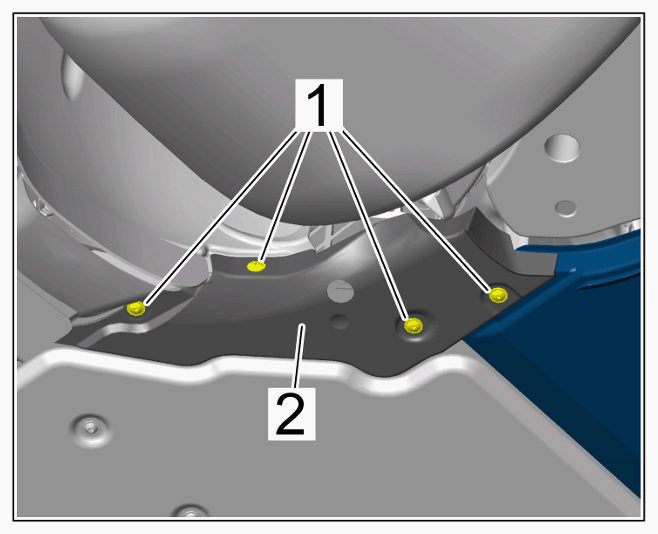

Screws securing left and right cover to body
G14404954Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm

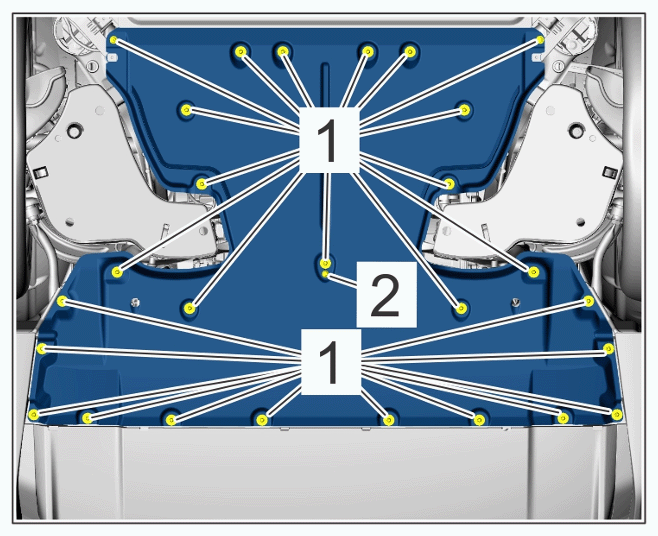

Screws securing rear underbody cover to body
G14404955Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening elements		 Item 1 Tightening torque 2.5 (1.8 ftlb.) Nm
Inner screw securing rear wheel housing liner to body
G14404956Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 2 Tightening torque 2.5 (1.75 ftlb.) Nm

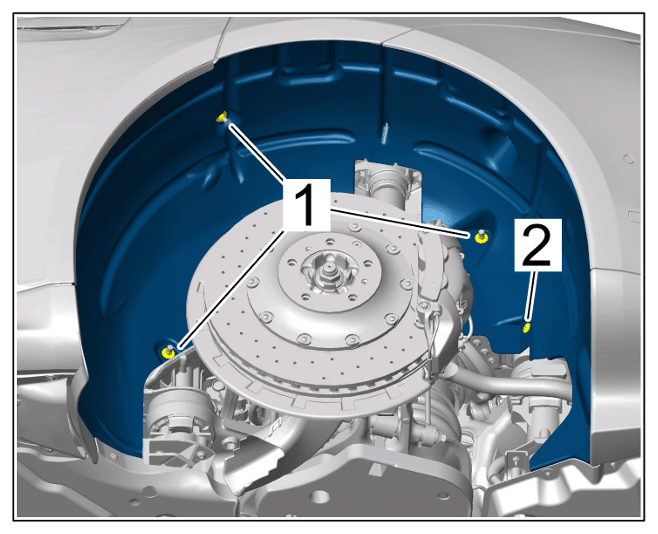

Inner nuts securing rear wheel housing liner to body
G14404957Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm

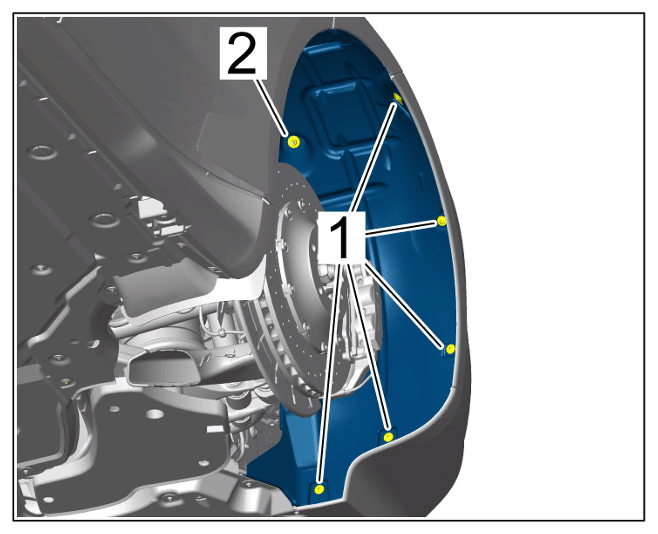

Outer screws securing rear wheel housing liner to body
G14404958Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
Outer nut securing rear wheel housing liner to body
G14404959Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 2 Tightening torque 2.5 (1.75 ftlb.) Nm

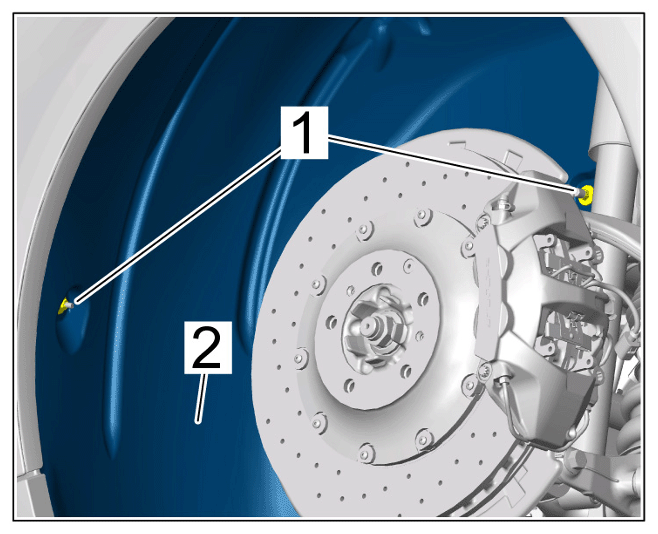

Side nut securing rear wheel housing liner to body
G14404960Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut		 Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
Screw securing strut to body
G14404961Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut		 Item 5 Tightening torque 30 (22 ftlb.) Nm

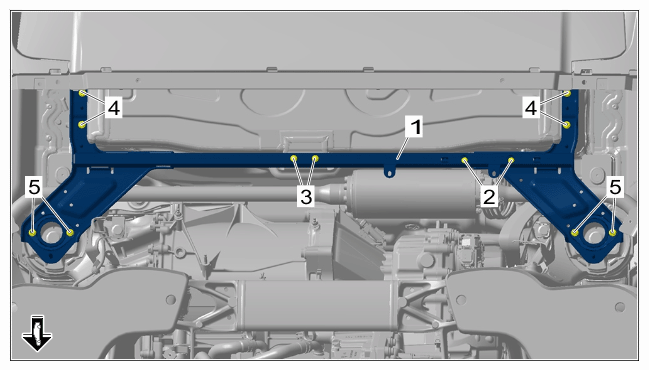

Nut securing strut to body
G14404962Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut		 Item 4 Tightening torque 10 (7.5 ftlb.) Nm
Screw securing strut to body
G14404963Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut		 Item 3 Tightening torque 10 (7.5 ftlb.) Nm
Screw securing strut to body
G14404964Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut		 Item 2 Tightening torque 8 (6 ftlb.) Nm

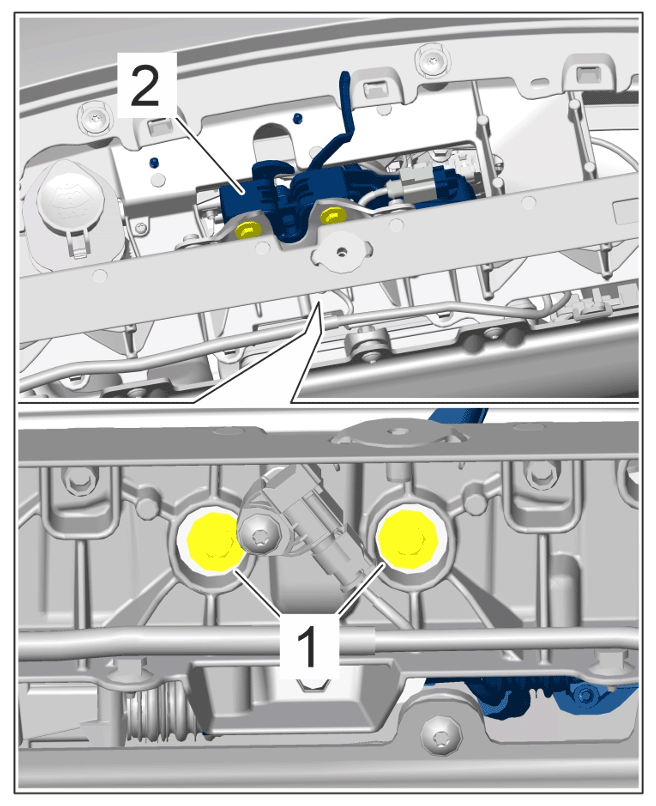

Screws securing lower part of front lock to lock carrier
G14404965Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 8 (6 ftlb.) Nm

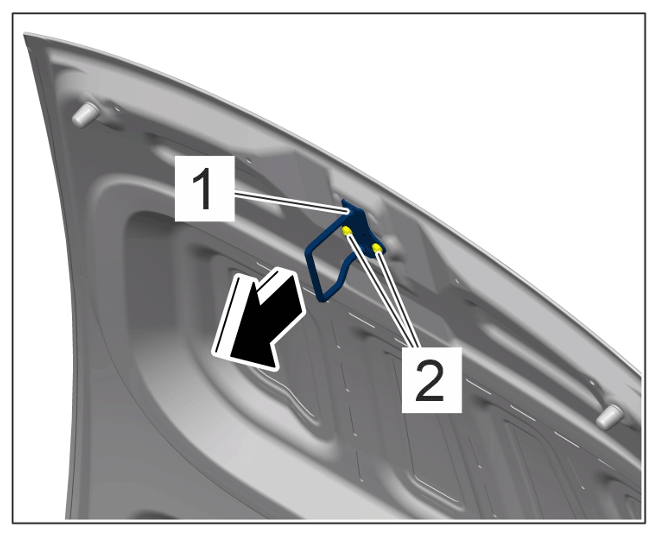

Screws securing upper part of front lock to front lid
G14404966Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of front lock		 Item 2 Tightening torque 8 (6 ftlb.) Nm

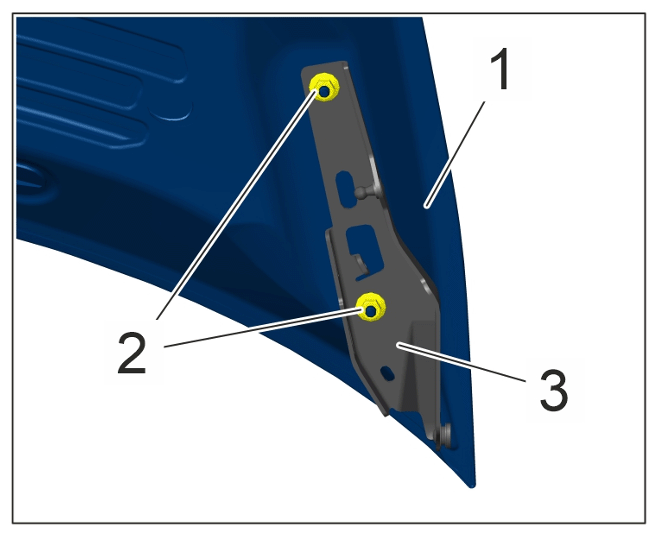

Nuts securing front lid to front lid hinge
G14404967Courtesy of PORSCHE CARS NORTH AMERICA, INC.

ront lid		 Item 2 Tightening torque 14 (10.5 ftlb.) Nm

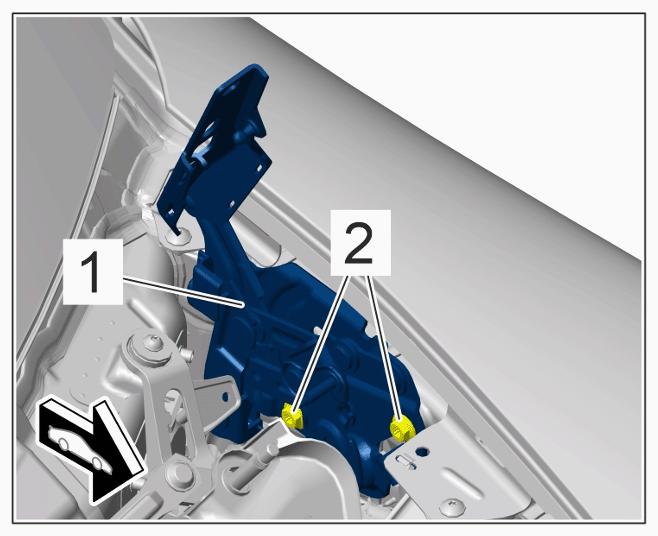

Screws securing front lid hinge to body
G14404968Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid hinge		 Item 2 Tightening torque 20 (15 ftlb.) Nm

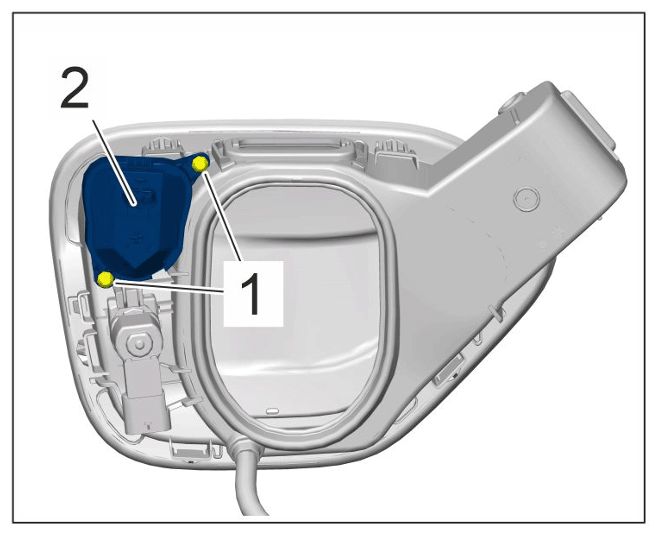

Mechanical holder on mechanical power supply flap (module)
G14404969Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mechanical holder for mechanical power supply flap (module)		 Item 1 Tightening torque 2.5 (1.844 ftlb.) Nm

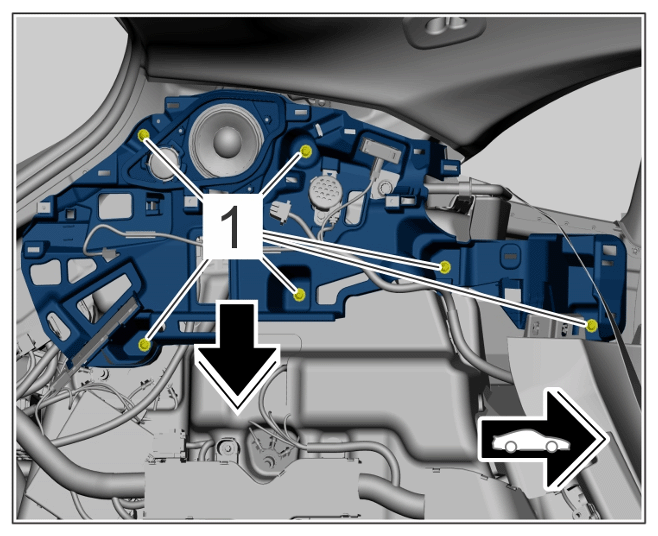

Screws securing retaining frame
G14404970Courtesy of PORSCHE CARS NORTH AMERICA, INC.

rim panel		 Item 1 Torque 6 (4.5 ftlb.) Nm

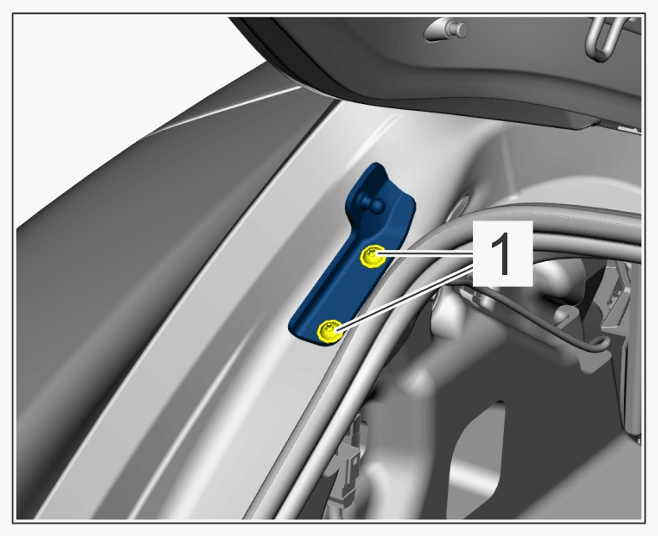

Screws securing bearing block
G14404971Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bearing block		 Item 1 Tightening torque 10 (7.5 ftlb.) Nm

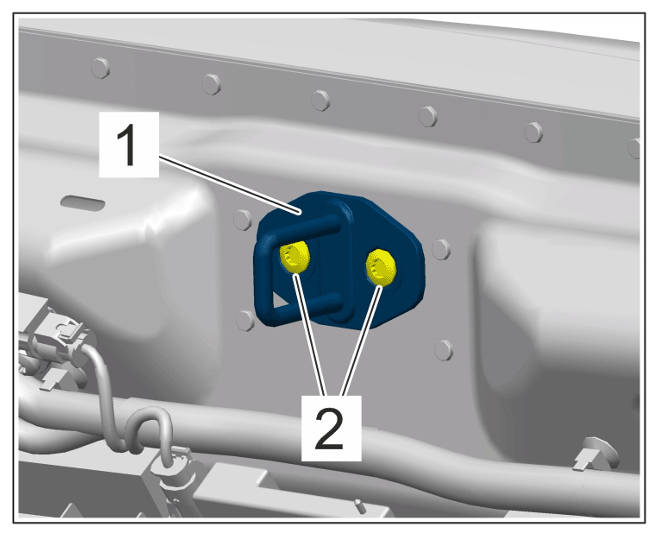

Screws securing lower part of rear lock to lock carrier on Coupe
G14404972Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for lower part of lock		 Item 2 Tightening torque 20 (15 ftlb.) Nm

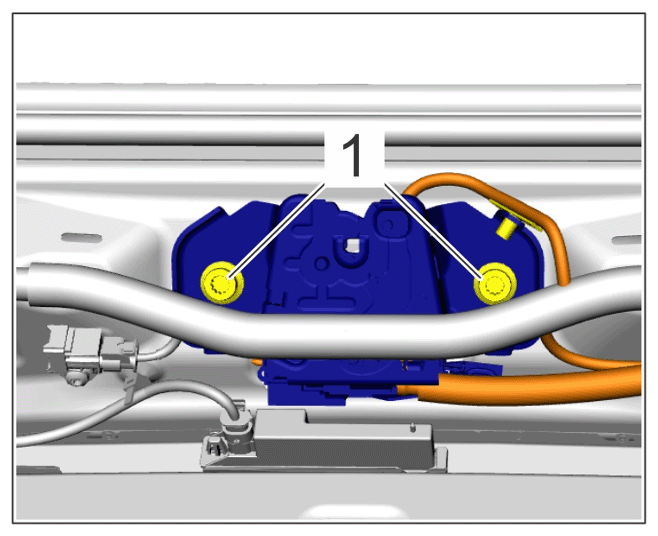

Screws securing lower part of lock to lock carrier on Cross Turismo
G14404973Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 20 (15 ftlb.) Nm

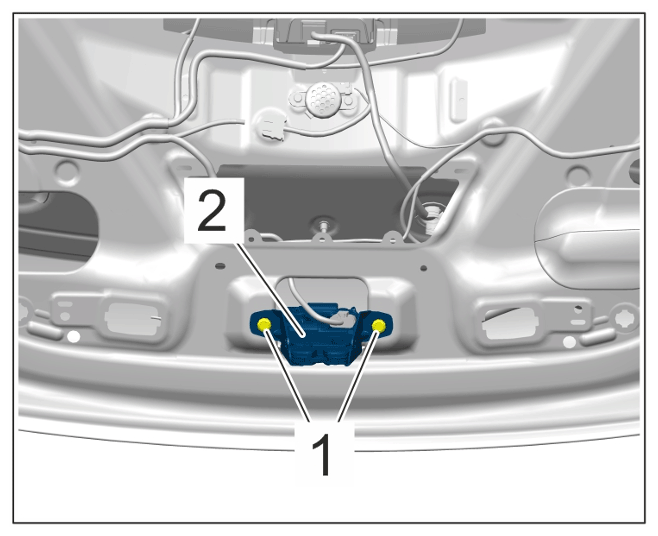

Screws securing upper part of lock, saloon
G14404974Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on upper part of lock		 Item 1 Tightening torque 20 (15 ftlb.) Nm

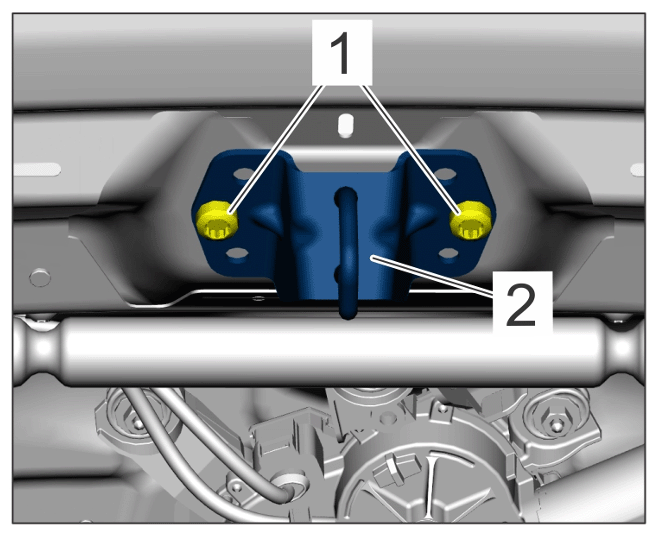

Screws securing upper part of lock, Cross Turismo
G14404975Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Torque 20 (15 ftlb.) Nm

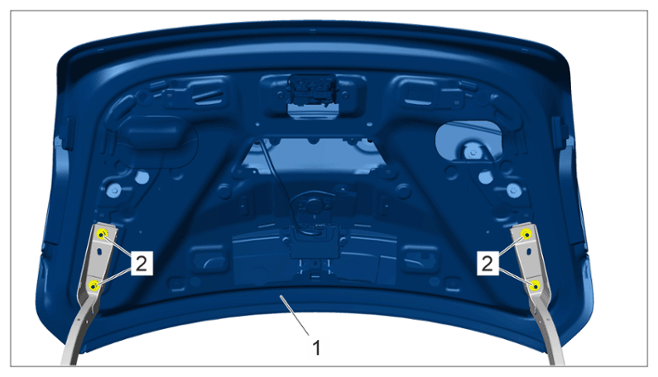

Nuts securing rear lid to hinge
G14404976Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid		 Item 2 Tightening torque 20 (15 ftlb.) Nm

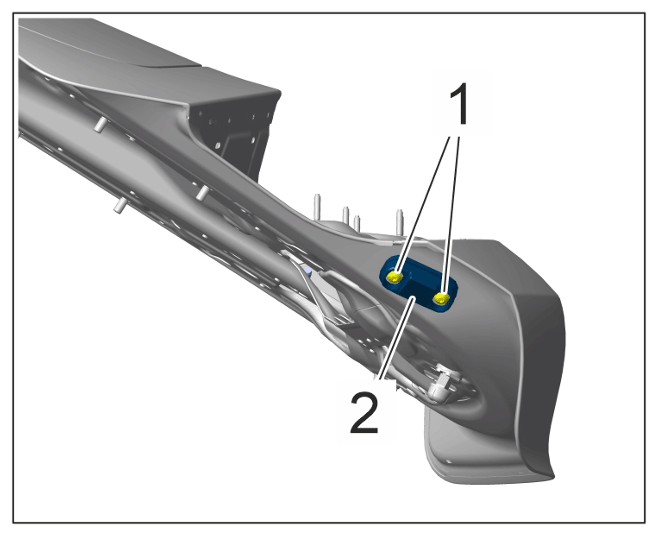

Screws securing guide wedge to inner part of lid
G14404977Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide wedge		 Item 1 Tightening torque 6 (4.5 ftlb.) Nm

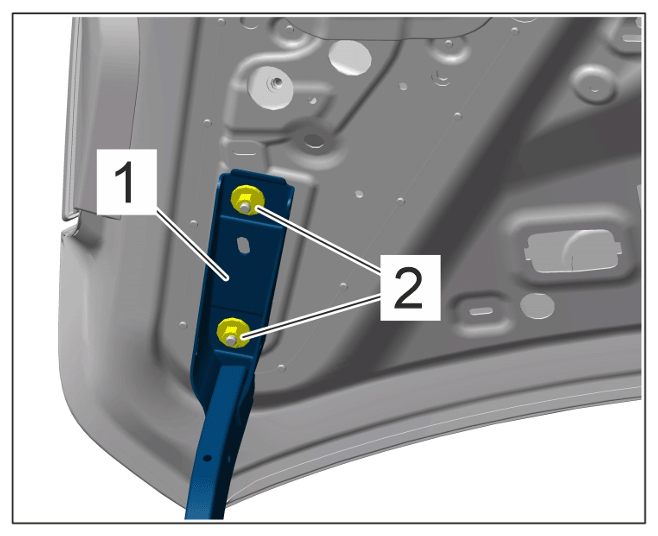

Nuts securing rear lid hinge to rear lid
G14404978Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid hinge		 Item 2 Tightening torque 20 (15 ftlb.) Nm

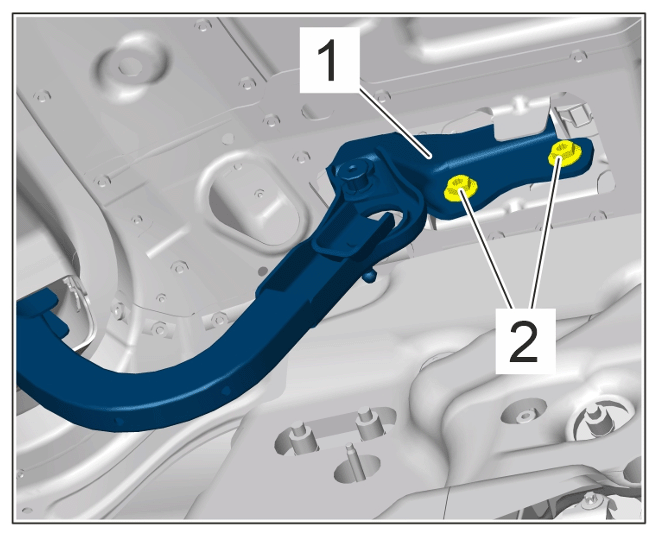

Nuts securing rear lid hinge to rear frame
G14404979Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts on rear lid hinge		 Item 2 Tightening torque 20 (15 ftlb.) Nm

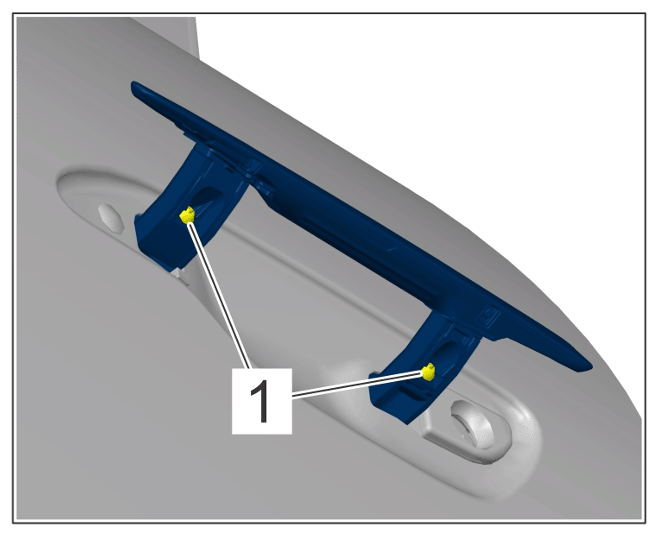

Door handle to supporting bow
G14404980Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 2 (1.5 ftlb.) Nm
Locking mechanism
G14404981Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking mechanism		 Item 2 Tightening torque 4 (3 ftlb.) Nm

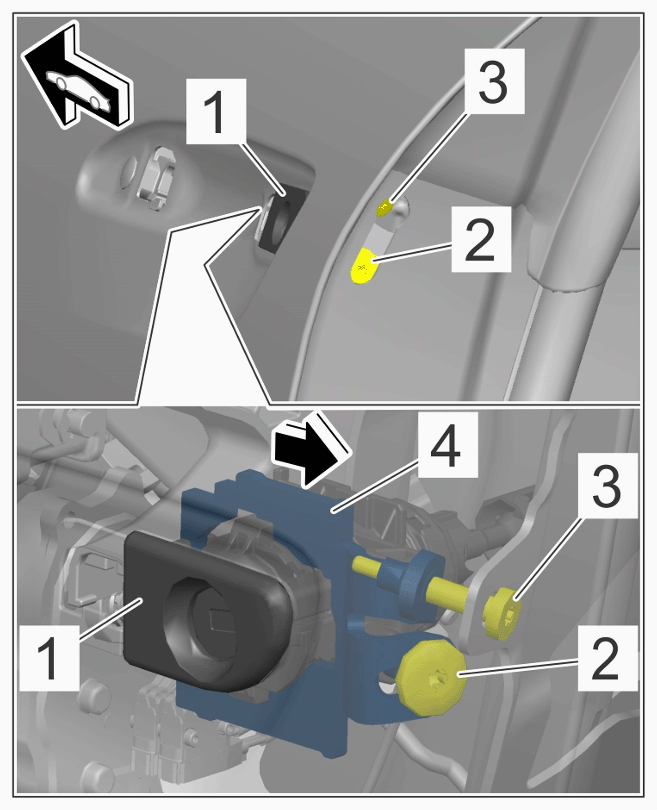

Locking mechanism
G14404982Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking mechanism		 Item 3 Tightening torque 2 (1.5 ftlb.) Nm

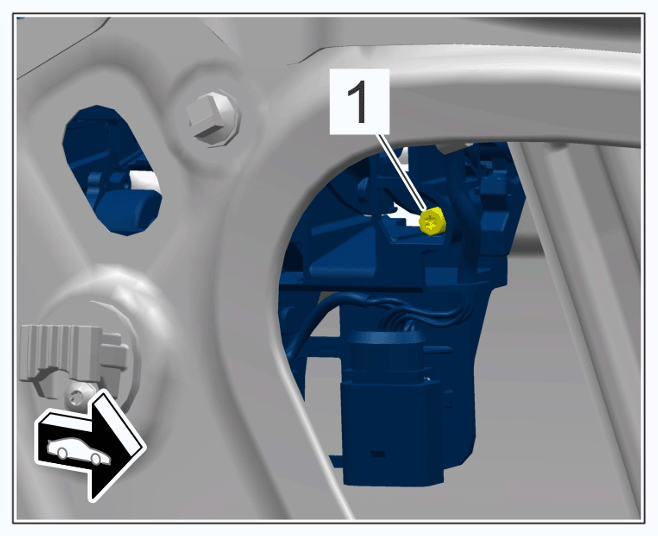

Screw, inner
G14404983Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw		 Item 1 Tightening torque 4 (3 ftlb.) Nm

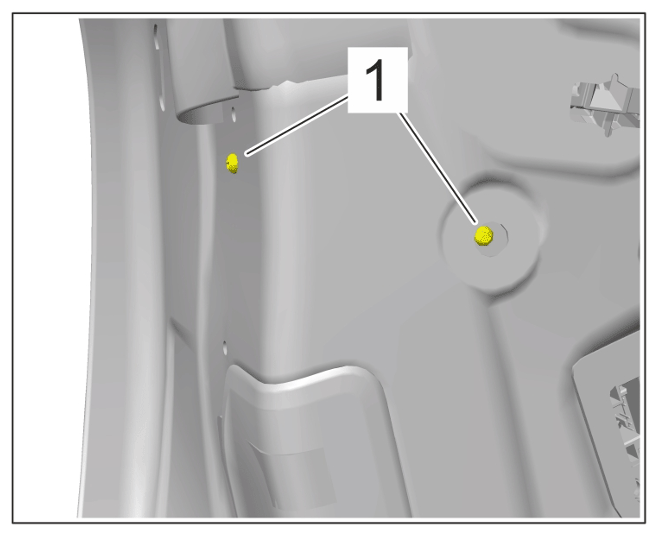

Screw securing cover for door lock to door bodyshell
G14404984Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 1.6 (1 ftlb.) Nm

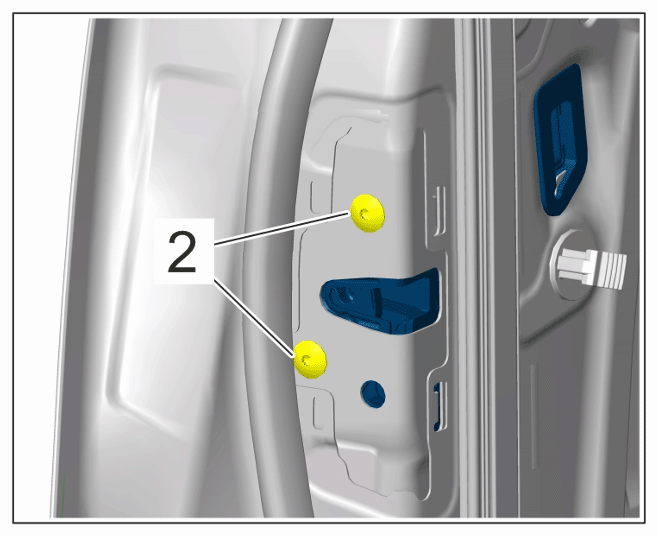

Screw securing door lock to door bodyshell
G14404985Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 2 Tightening torque 20 (15 ftlb.) Nm

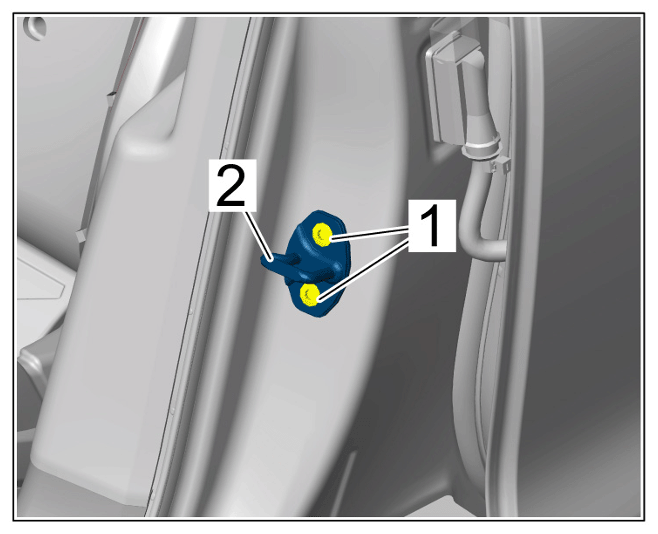

Screws securing lock peg to body
G14404986Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock peg		 Item 1 Tightening torque 25 (19 ftlb.) Nm

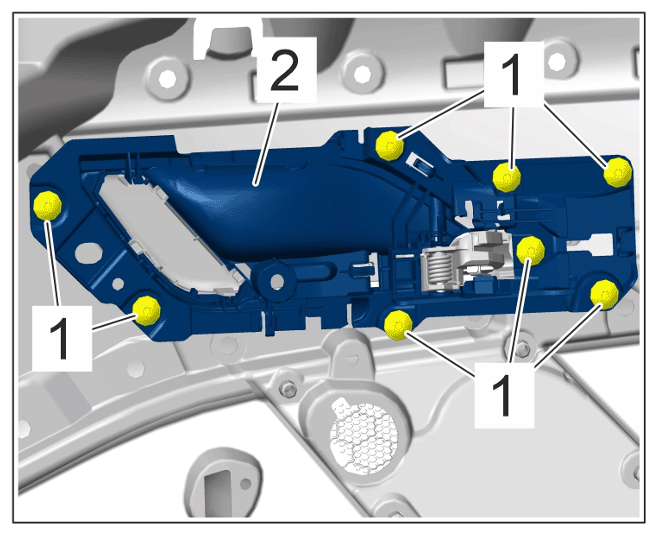

Screws securing door opener to door panel
G14404987Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 3 (2 ftlb.) Nm

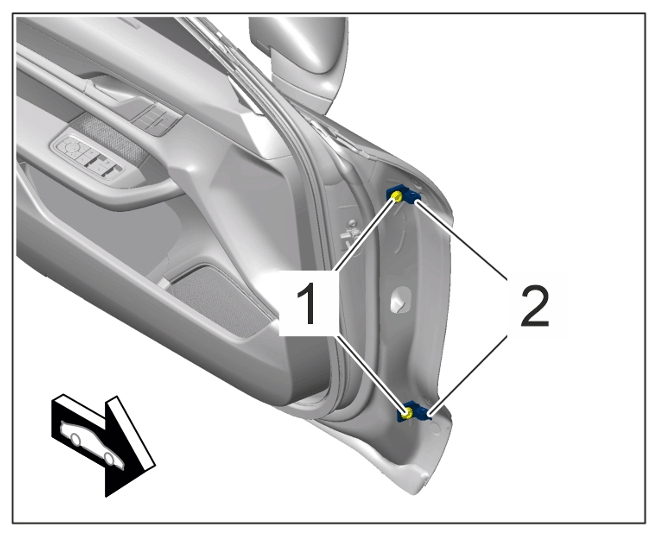

Screw securing door hinge to door
G14404988Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 50 (37 ftlb.) Nm

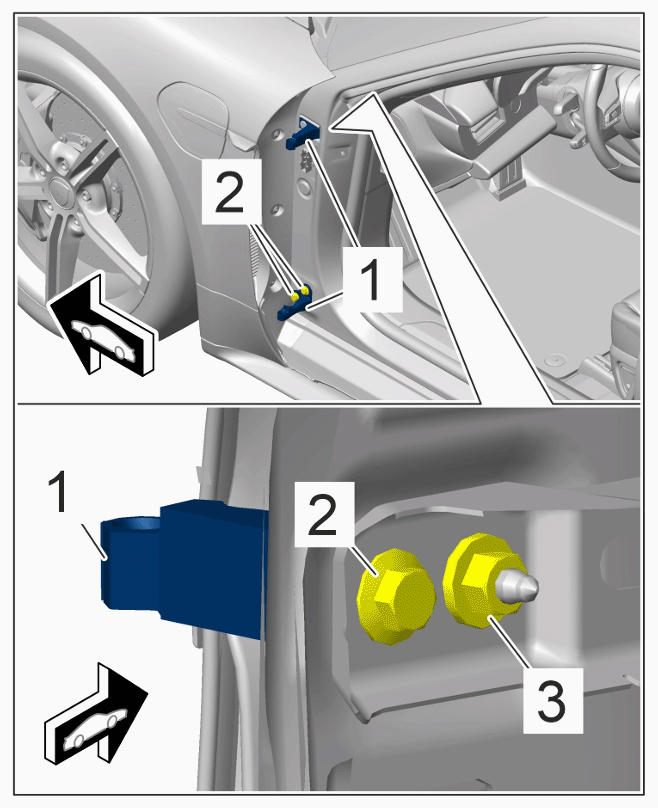

Screw securing door hinge to body
G14404989Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 2 Initial tightening 20 (15 ftlb.) Nm
Screw securing door hinge to body
G14404990Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 2 Final tightening 45 Grad
Nut securing door hinge to body
G14404991Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut		 Item 3 Initial tightening 20 (15 ftlb.) Nm
Nut securing door hinge to body
G14404992Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut		 Item 3 Final tightening 45 Grad

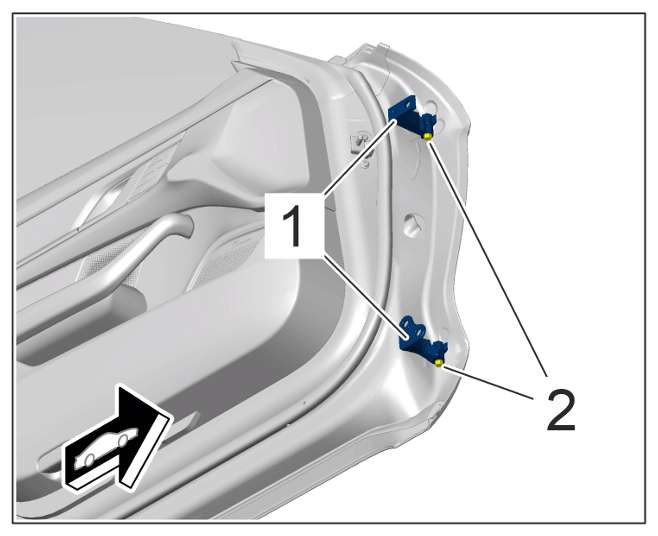

Screw for door hinge
G14404993Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for door hinge		   Tightening torque 8 (6 ftlb.) Nm

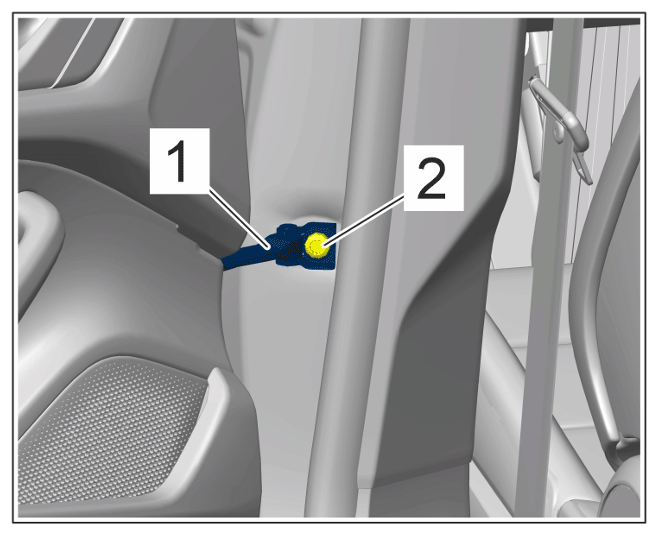

Screw securing door arrester to B-pillar

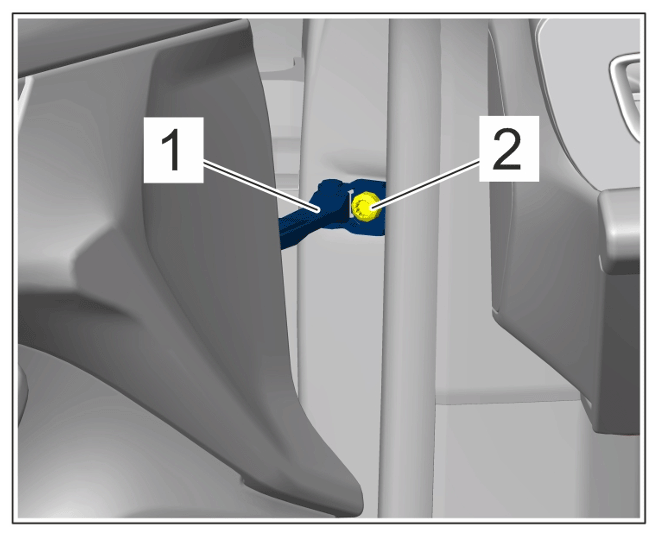

G14404994Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on door arrester		 Item 2 Tightening torque 33 (24 ftlb.) Nm

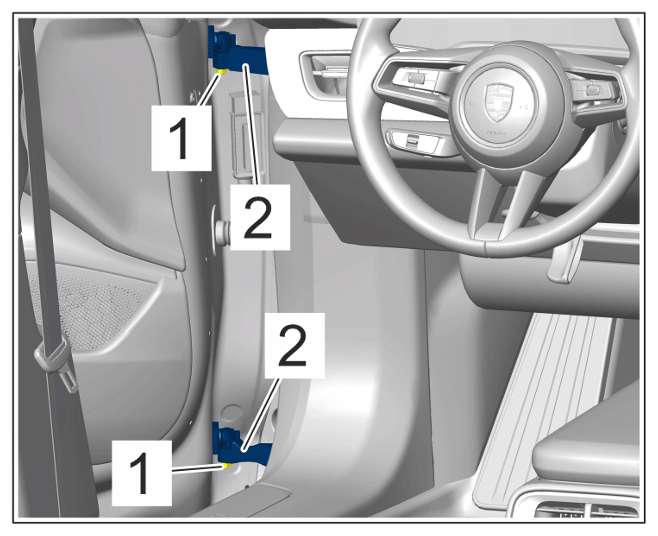

Screw securing hinge half on bodyshell to hinge half on door
G14404995Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinges		 Item 1 Tightening torque 13 (9.5 ftlb.) Nm
Screw securing door hinge to door

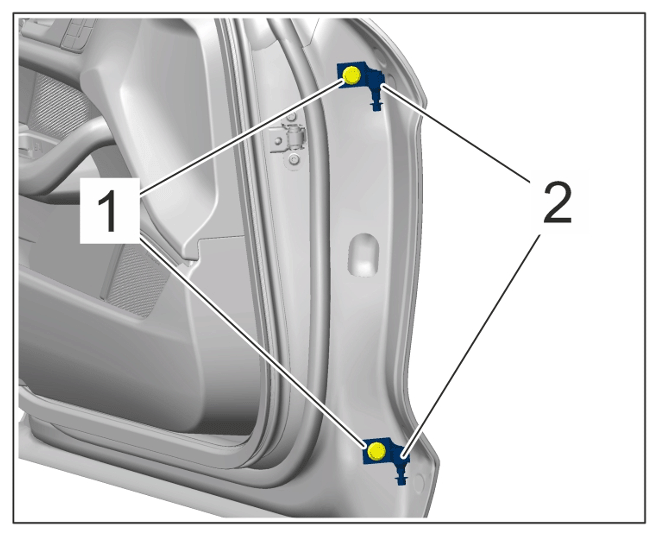

G14404996Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 50 (37 ftlb.) Nm
Screws securing door arrester to door bodyshell

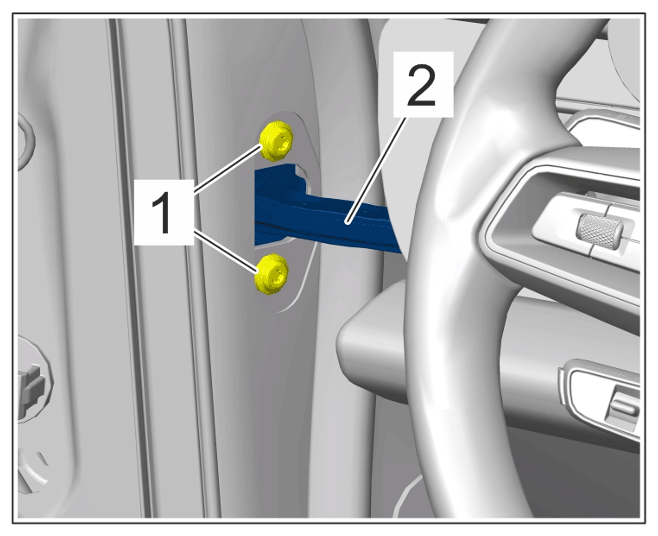

G14404997Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 8 (6 ftlb.) Nm
Screw securing door arrester to A-pillar
G14404998Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on door arrester		 Item 2 Tightening torque 33 (24 ftlb.) Nm
Screws securing side window (centre) to Bpillar

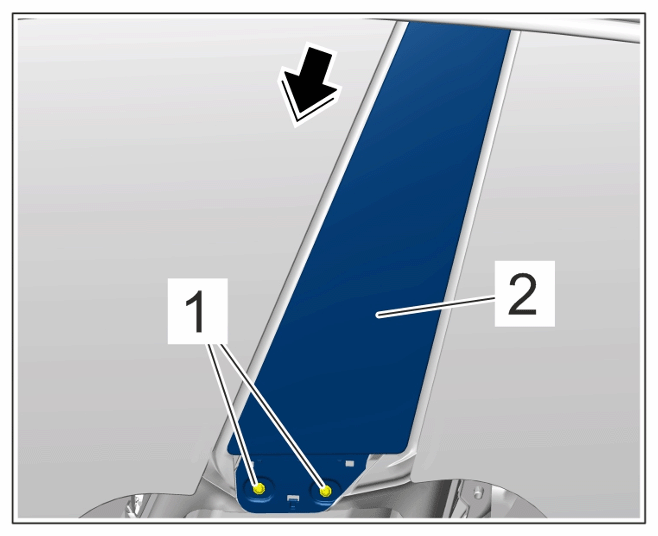

G14404999Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side window (centre)		 Item 1 Tightening torque 4 (3 ftlb.) Nm
Nut securing control unit for rear-end electronics to body

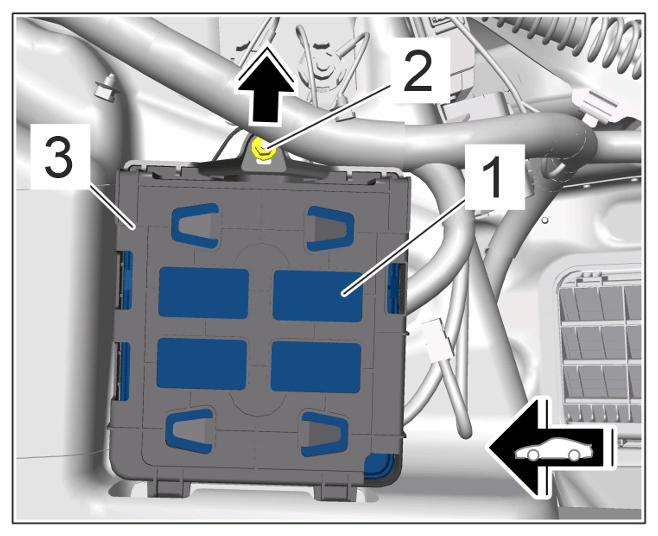

G14405000Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw		 Item 2 Tightening torque 2.5 (1.75 ftlb.) Nm

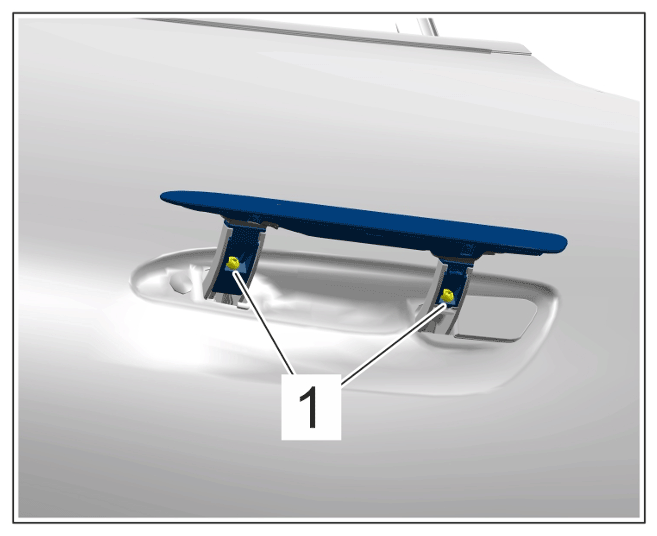

Door handle to supporting bow
G14405001Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 2 (1.5 ftlb.) Nm
Screw, inner
G14405002Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw		 Item 1 Tightening torque 4 (3 ftlb.) Nm
Screw securing door lock to door bodyshell

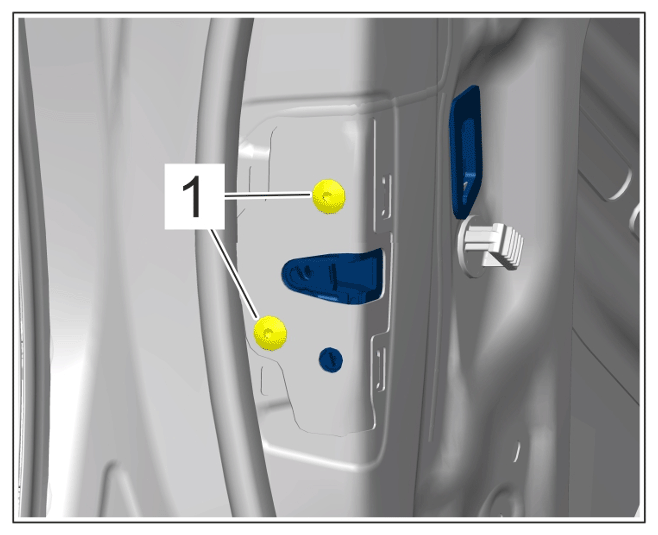

G14405003Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 20 (15 ftlb.) Nm

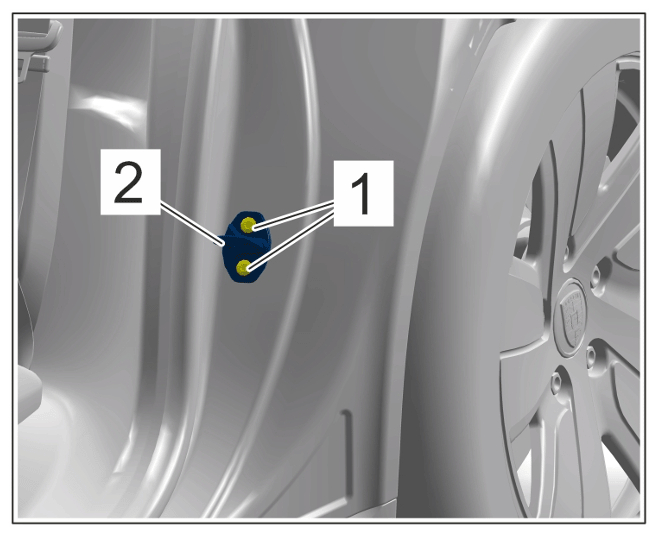

Screws securing lock peg to body
G14405004Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock peg		 Item 1 Tightening torque 25 (19 ftlb.) Nm
Screw securing door hinge to body

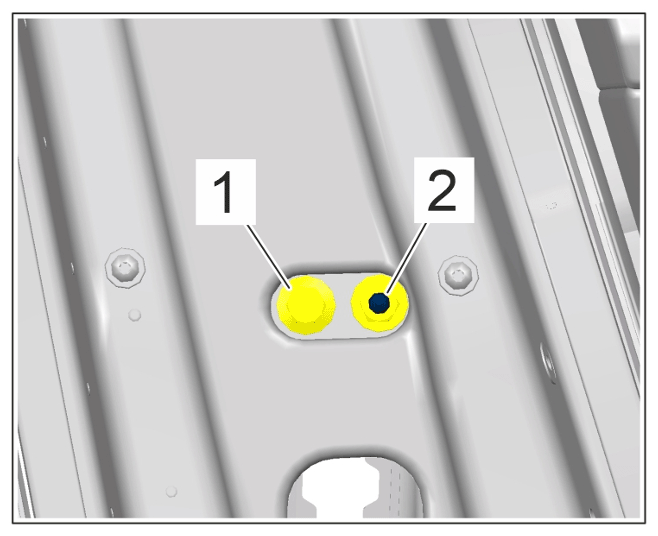

G14405005Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)		 Item 3 Initial tightening 20 (15 ftlb.) Nm
Screw securing door hinge to body
G14405006Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)		 Item 1 Final tightening + 45 °
Nut securing door hinge to body
G14405007Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)		 Item 2 Initial tightening 20 (15 ftlb.) Nm
Nut securing door hinge to body
G14405008Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)		 Item 2 Final tightening + 45 °
Screw securing door arrester to B-pillar
G14405009Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door arrester		 Item 2 Tightening torque 33 (24 ftlb.) Nm
Screws securing door arrester to door bodyshell

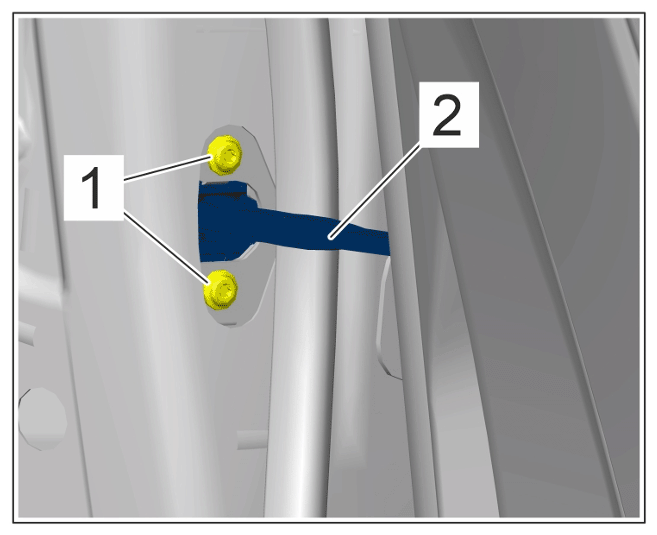

G14405010Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		 Item 1 Tightening torque 8 (6 ftlb.) Nm
scientia non olet · About LEMON Manuals
