Door Hinge

Information

Fastening screws and fastening nuts must not be re-used and must be replaced with new ones.

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value

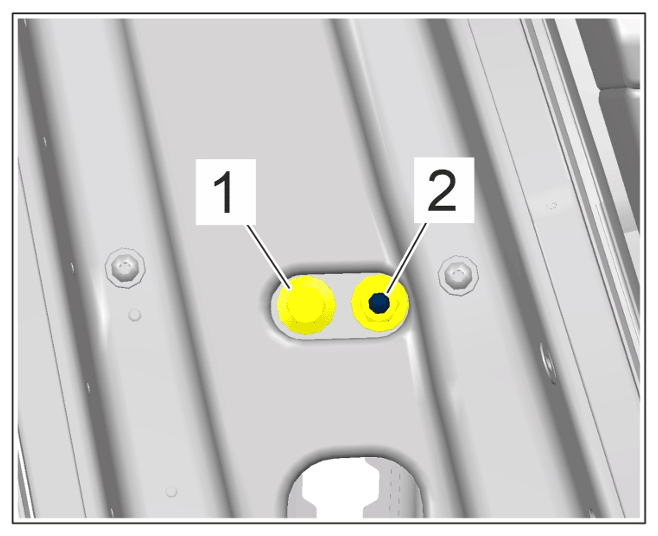

Screw securing door hinge to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)	Item 1	Initial tightening	20 (15 ftlb.) Nm
Screw securing door hinge to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)	Item 1	Final tightening	+ 45 °
Nut securing door hinge to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)	Item 2	Initial tightening	20 (15 ftlb.) Nm
Nut securing door hinge to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)	Item 2	Final tightening	+ 45 °
