Door Handle
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance |

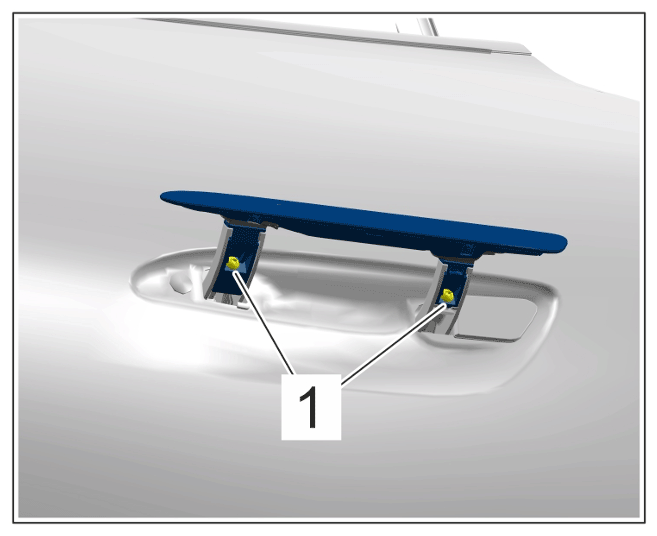

Door handle to supporting bow
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
Item 1 |
Tightening torque |
2 (1.5 ftlb.) Nm |
|

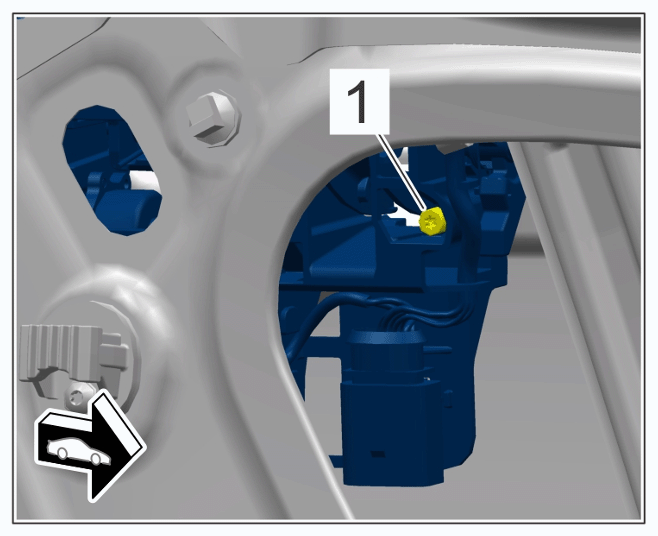

Screw, inner
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw |
Item 1 |
Tightening torque |
4 (3 ftlb.) Nm |
|
