57 - Front Door, Central Locking: Door

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value

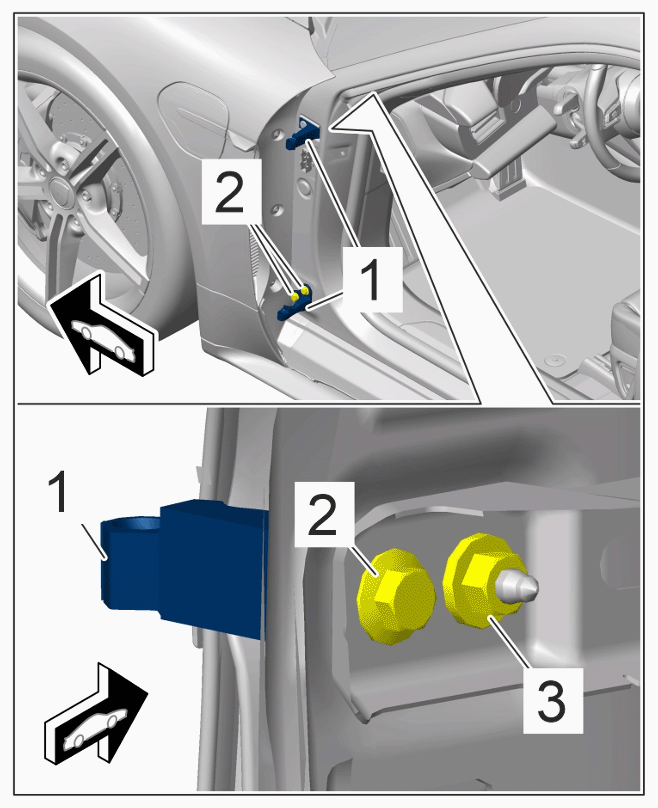

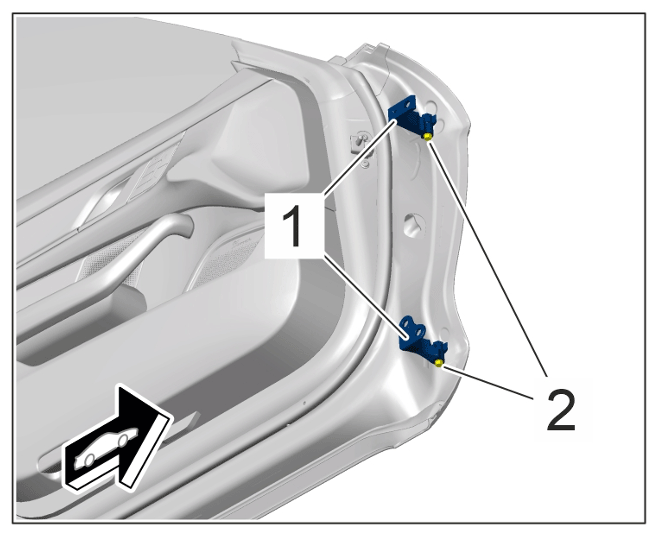

Screw securing door hinge to door Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	50 (37 ftlb.) Nm
Screw securing door hinge to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 2	Initial tightening	20 (15 ftlb.) Nm
Screw securing door hinge to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 2	Final tightening	45 Grad
Nut securing door hinge to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut	Item 3	Initial tightening	20 (15 ftlb.) Nm
Nut securing door hinge to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut	Item 3	Final tightening	45 Grad

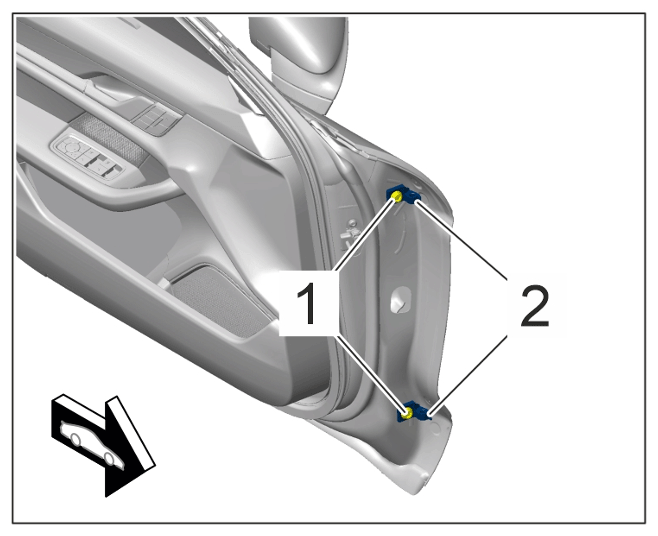

Screw for door hinge Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for door hinge		Tightening torque	8 (6 ftlb.) Nm
