Door Hinge
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance |

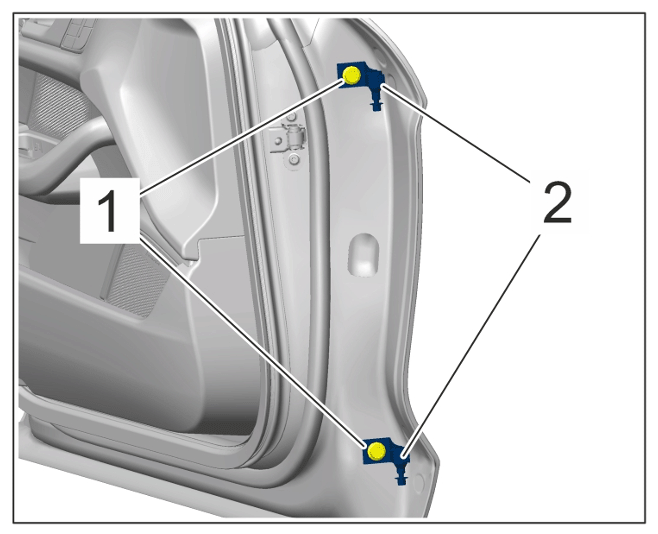

Screw securing hinge half on bodyshell to hinge half on door
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door hinges |
Item 1 |
Tightening torque |
13 (9.5 ftlb.) Nm |
|
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance |

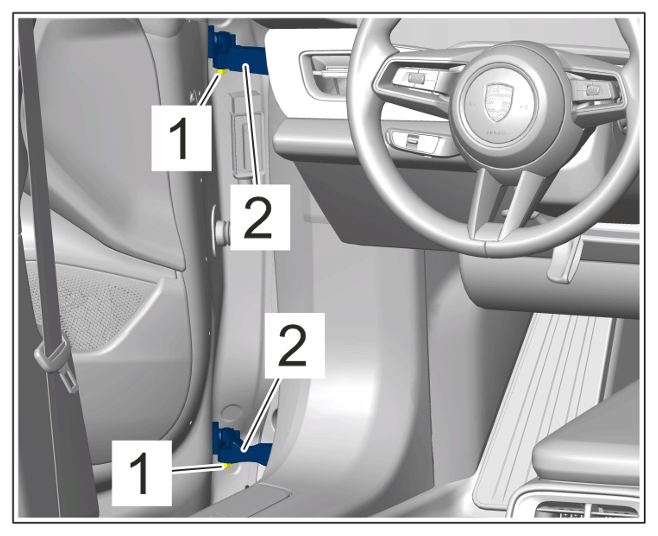

Screw securing door hinge to door
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
Item 1 |
Tightening torque |
50 (37 ftlb.) Nm |
|
