Door Arrester

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance

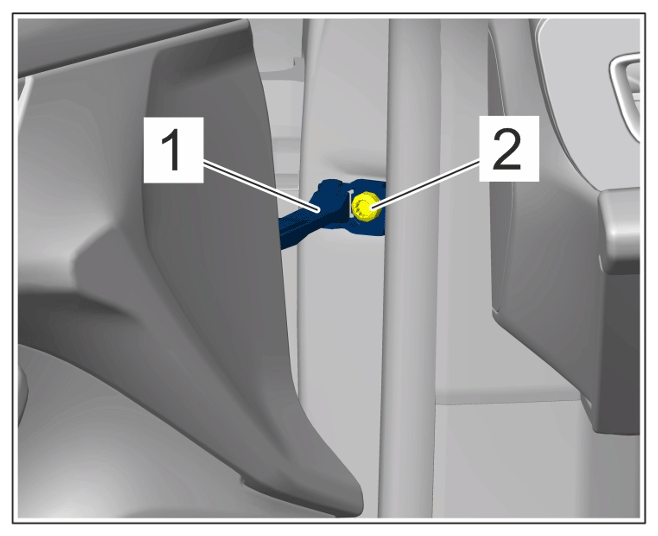

Screw securing door arrester to B-pillar Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on door arrester	Item 2	Tightening torque	33 (24 ftlb.) Nm

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance

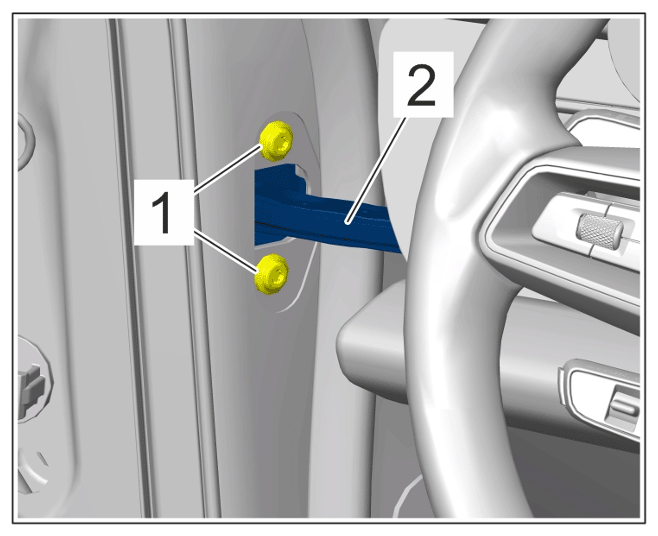

Screws securing door arrester to door bodyshell Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	8 (6 ftlb.) Nm

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance
Screw securing door arrester to A-pillar Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on door arrester	Item 2	Tightening torque	33 (24 ftlb.) Nm
