Removing And Installing Actuating Cylinder For Rear Lid
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance |

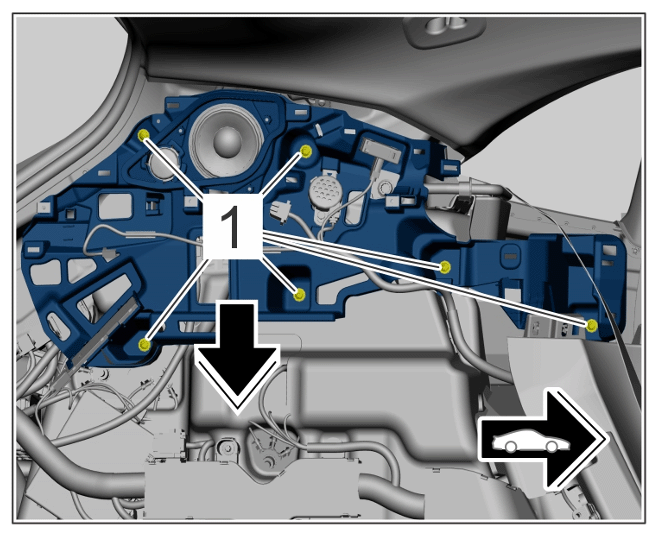

Screws securing retaining frame
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Trim panel |
Item 1 |
Torque |
6 (4.5 ftlb.) Nm |
|

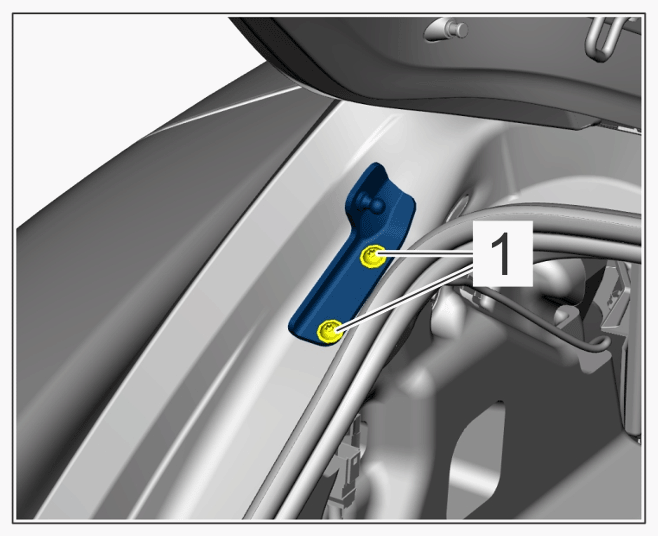

Screws securing bearing block
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bearing block |
Item 1 |
Tightening torque |
10 (7.5 ftlb.) Nm |
|
