Rear Lock Lower Part

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance

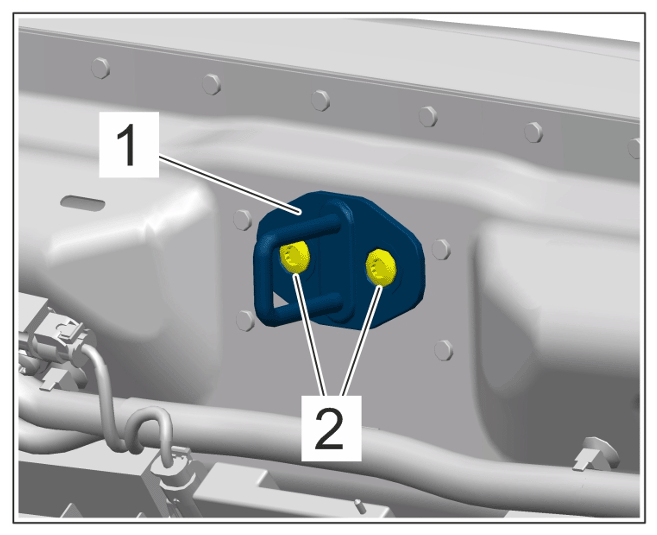

Screws securing lower part of rear lock to lock carrier on Coupe Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for lower part of lock	Item 2	Tightening torque	20 (15 ftlb.) Nm

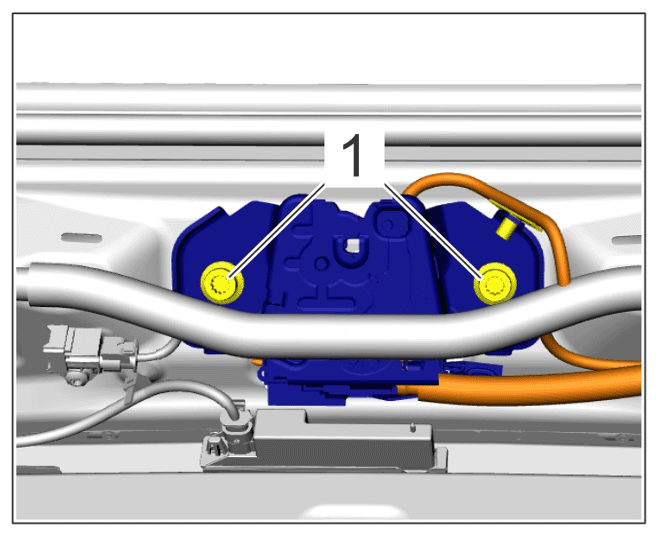

Screws securing lower part of lock to lock carrier on Cross Turismo Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	20 (15 ftlb.) Nm
