Rear Lid
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance |

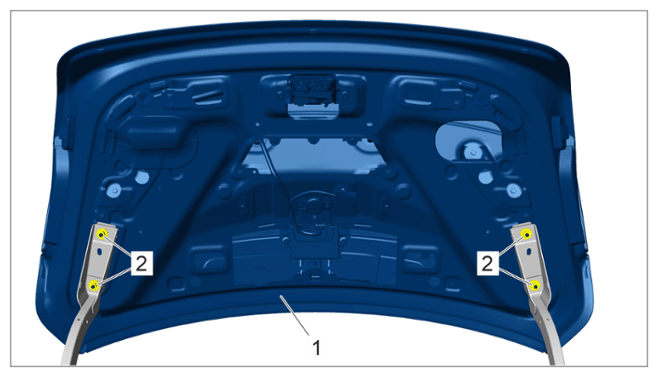

Nuts securing rear lid to hinge
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid |
Item 2 |
Tightening torque |
20 (15 ftlb.) Nm |
|
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance |
Screws securing guide wedge to inner part of lid
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide wedge |
Item 1 |
Tightening torque |
6 (4.5 ftlb.) Nm |
|
