Rear Lid Hinge
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance |

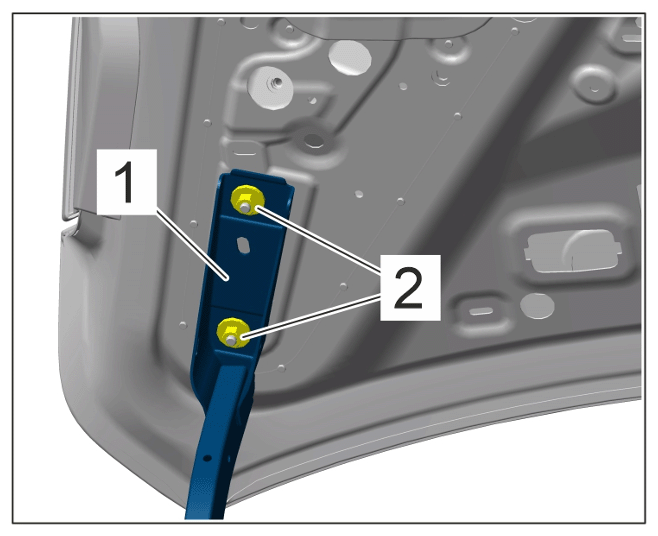

Nuts securing rear lid hinge to rear lid
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid hinge |
Item 2 |
Tightening torque |
20 (15 ftlb.) Nm |
|

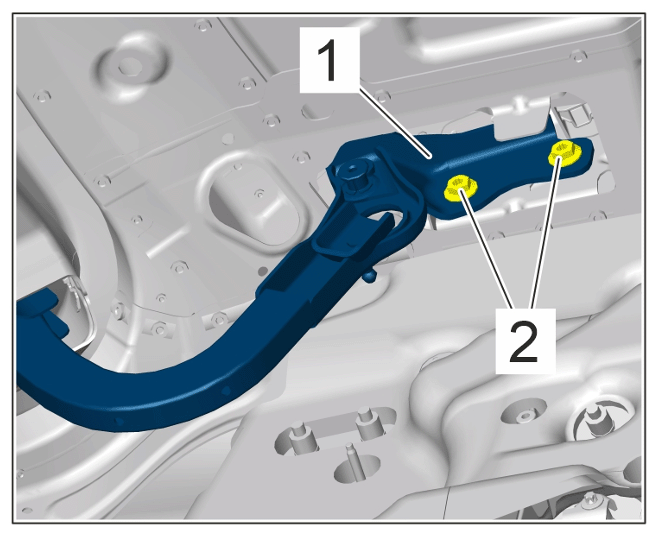

Nuts securing rear lid hinge to rear frame
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nuts on rear lid hinge |
Item 2 |
Tightening torque |
20 (15 ftlb.) Nm |
|
