Mechanical Holder
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance |

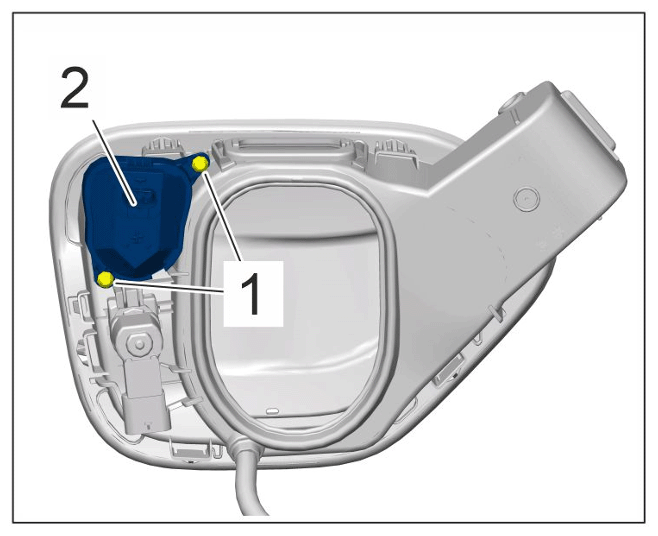

Mechanical holder on mechanical power supply flap (module)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mechanical holder for mechanical power supply flap (module) |
Item 1 |
Tightening torque |
2.5 (1.844 ftlb.) Nm |
|
