Front Lid

TECHNICAL VALUE SPECIFICATION

Location Description Type Basic value Tolerance

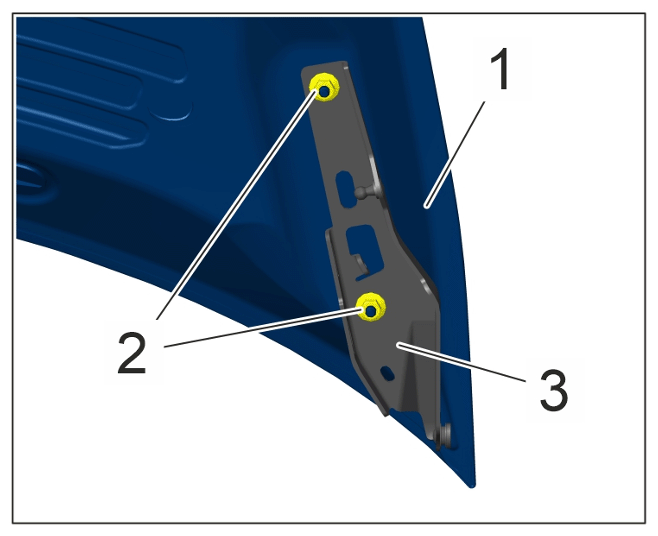

Nuts securing front lid to front lid hinge
G14405056Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid		 Item 2 Tightening torque 14 (10.5 ftlb.) Nm
