Front Lid Hinge

TECHNICAL VALUE SPECIFICATION

Location Description Type Basic value Tolerance
Screws securing front lid hinge to body

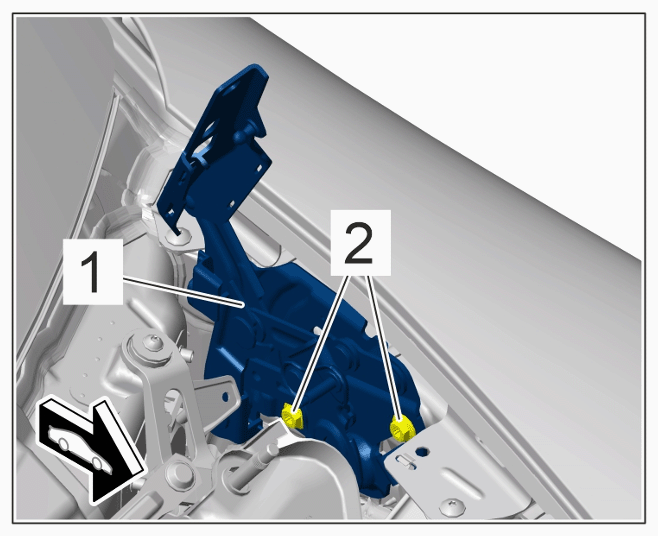

G14405057Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid hinge		 Item 2 Tightening torque 20 (15 ftlb.) Nm
