Repairing Side Member Reinforcement

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value

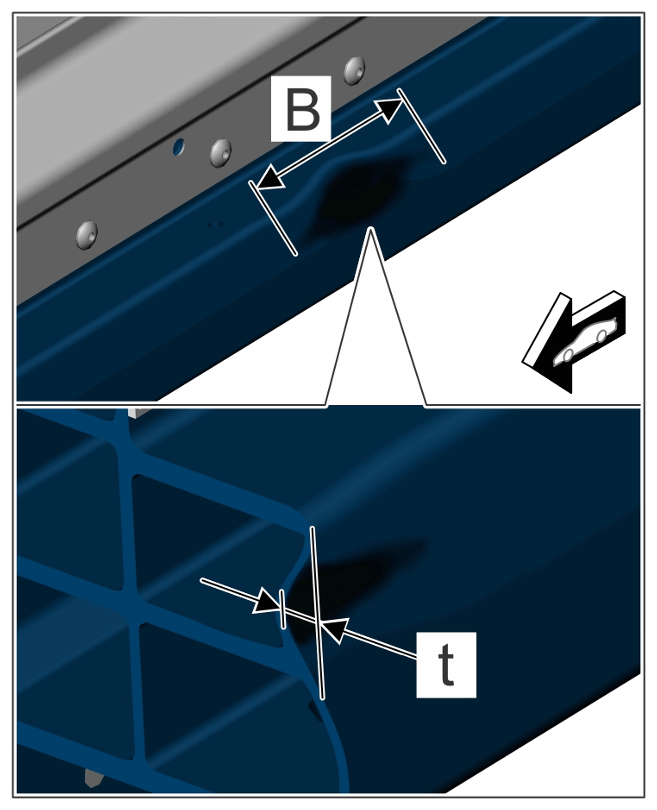

Maximum damage width - deformation Courtesy of PORSCHE CARS NORTH AMERICA, INC. Damage width	Item B	Length	90 mm
Maximum damage depth Courtesy of PORSCHE CARS NORTH AMERICA, INC. Damage depth	Item t	Length	10 mm

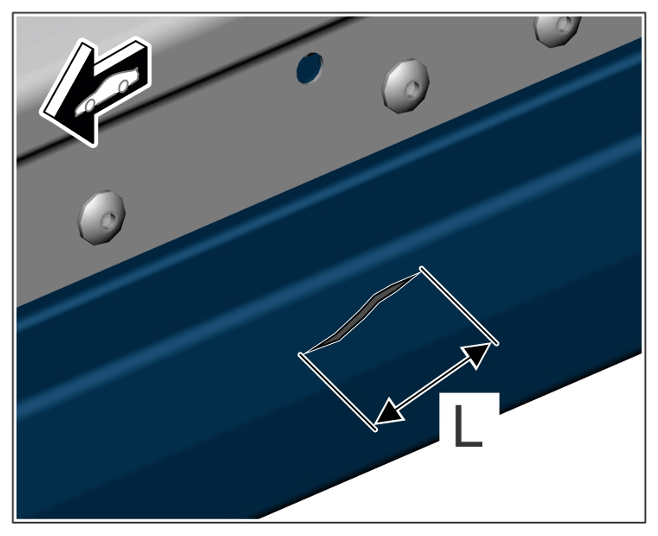

Maximum crack length Courtesy of PORSCHE CARS NORTH AMERICA, INC. Crack length	Item L	Length	20 mm

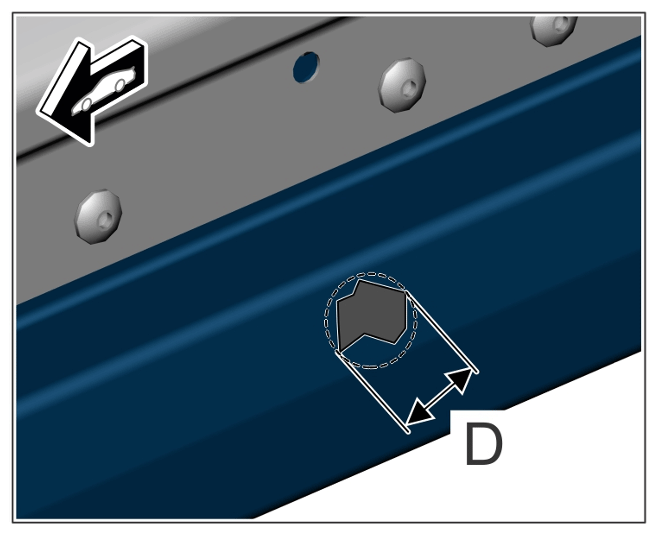

Maximum hole diameter Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole diameter	Item D	Diameter	10 mm
