Dashboard Bracket

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value

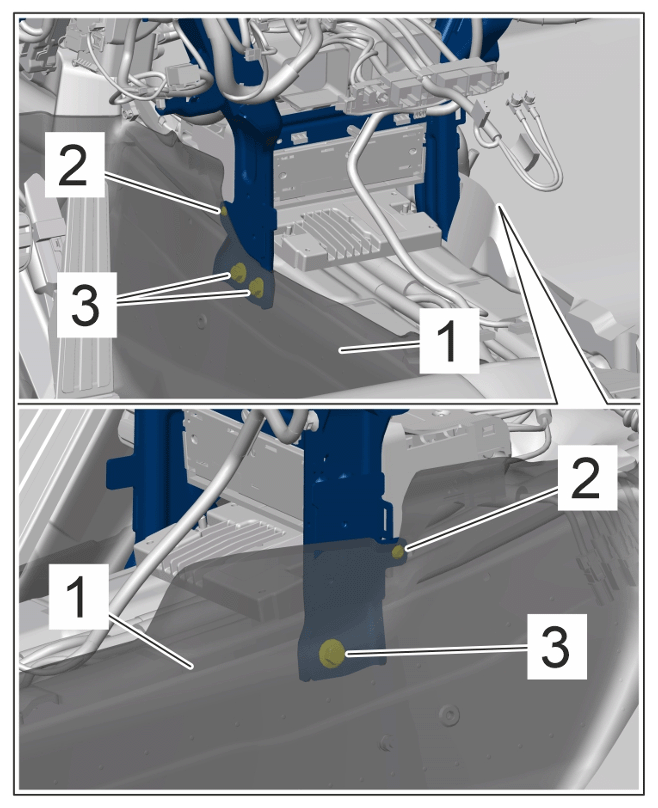

Nuts securing dashboard bracket to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts at the sides	Item 2	Tightening torque	20 (15 ftlb.) Nm

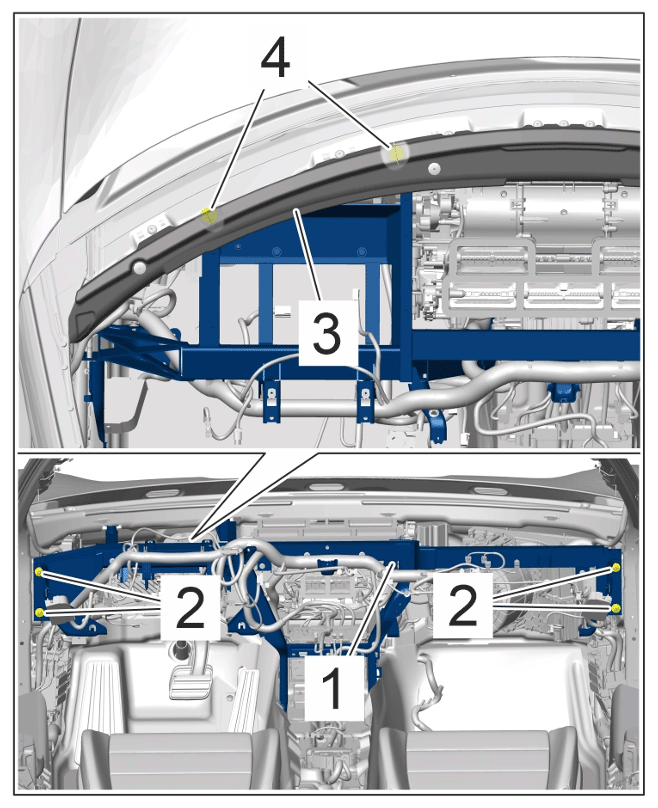

Screws securing dashboard bracket at the top to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Top screws	Item 4	Tightening torque	20 (15 ftlb.) Nm
Screws securing dashboard bracket at the bottom to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bottom screws	Item 3	Tightening torque	20 (15 ftlb.) Nm

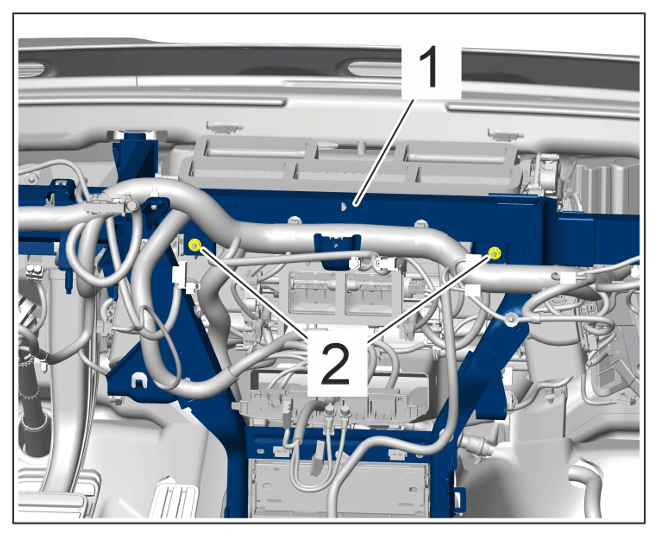

Nuts securing dashboard bracket to heater/air-conditioning unit Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts	Item 2	Tightening torque	8 (6 ftlb.) Nm

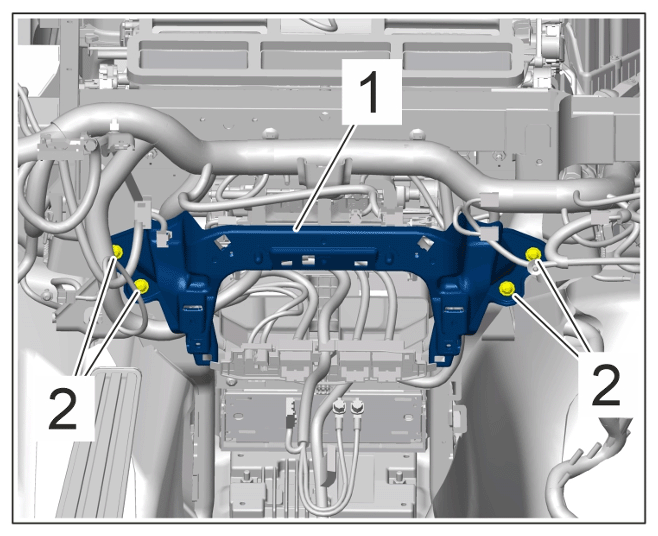

Screws securing centre console holder to dashboard bracket Courtesy of PORSCHE CARS NORTH AMERICA, INC. Centre console holder	Item 2	Tightening torque	4 (3 ftlb.) Nm
