Cover For Rear Underbody
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance |

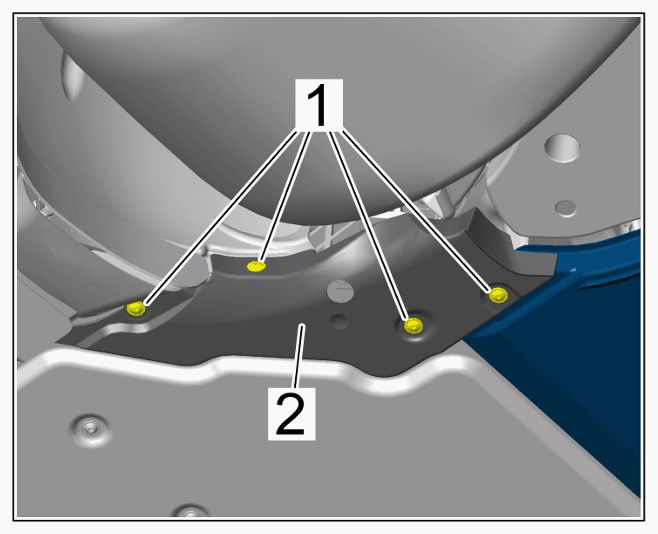

Screws securing left and right cover to body
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
Item 1 |
Tightening torque |
2.5 (1.75 ftlb.) Nm |
|

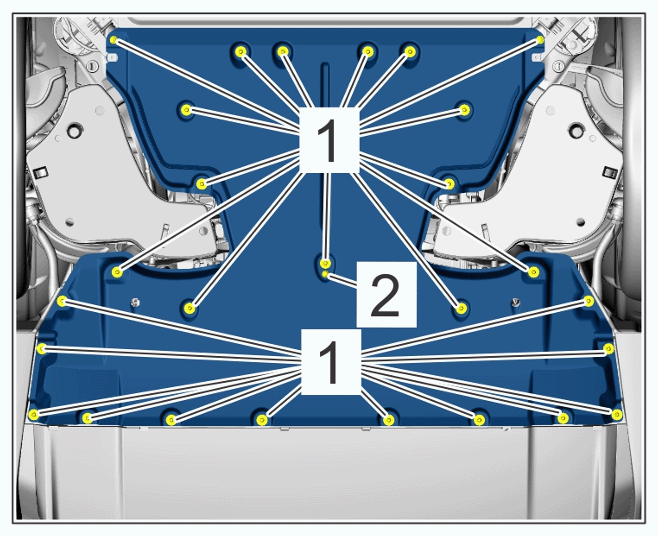

Screws securing rear underbody cover to body
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening elements |
Item 1 |
Tightening torque |
2.5 (1.8 ftlb.) Nm |
|
