Lock Carrier

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value

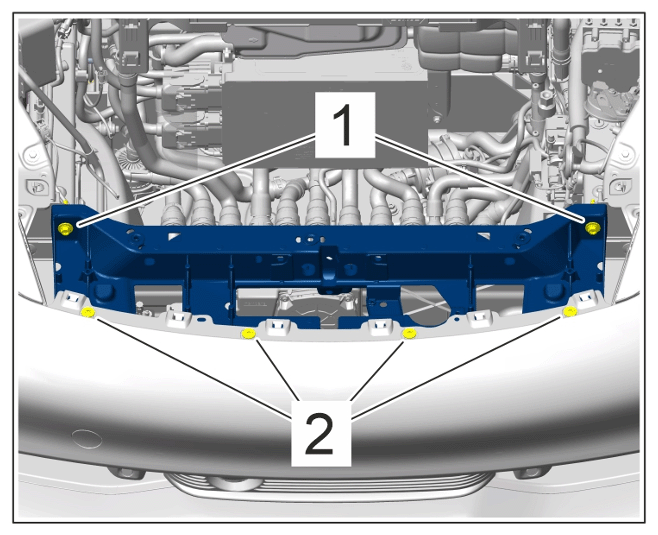

Screws securing pull strap to lock carrier Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	8 (6 ftlb.) Nm
Screws securing lock carrier to impact absorber Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	20 (15 ftlb.) Nm

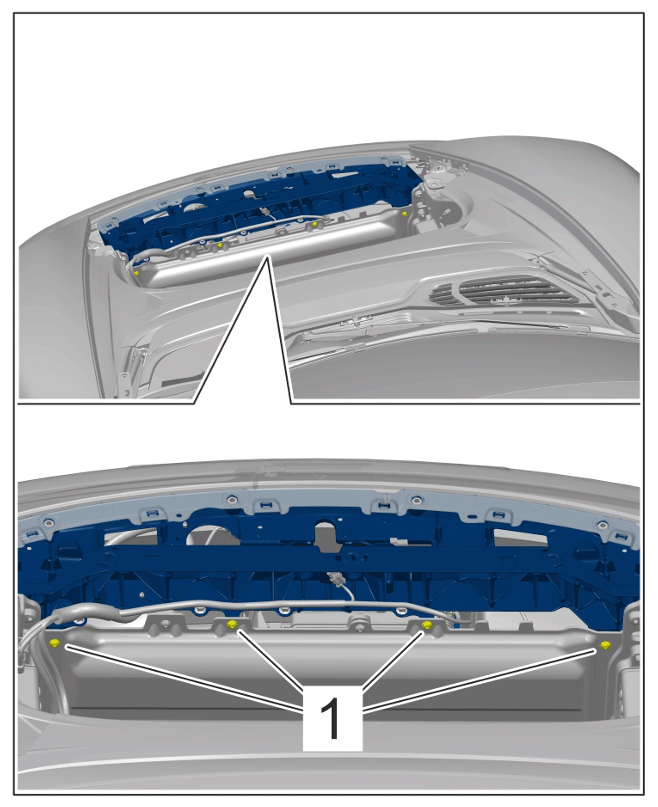

Screws securing front apron to lock carrier Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 2	Tightening torque	5.5 (4 ftlb.) Nm

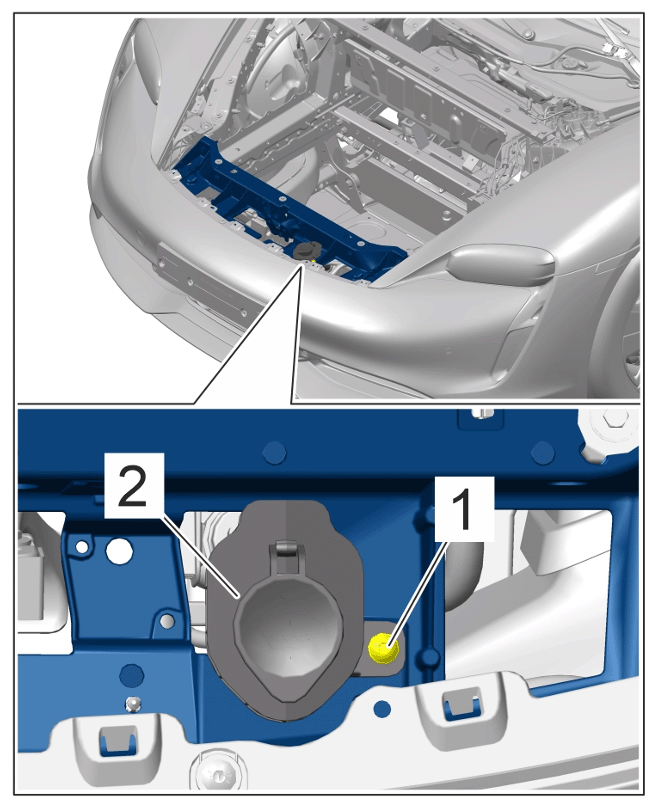

Screw securing sensor to lock carrier Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front sensor	Item 1	Tightening torque	9 (6.5 ftlb.) Nm
Screw securing washer-fluid reservoir to lock carrier Courtesy of PORSCHE CARS NORTH AMERICA, INC. Washer-fluid reservoir	Item 1	Tightening torque	9 (6.5 ftlb.) Nm

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance

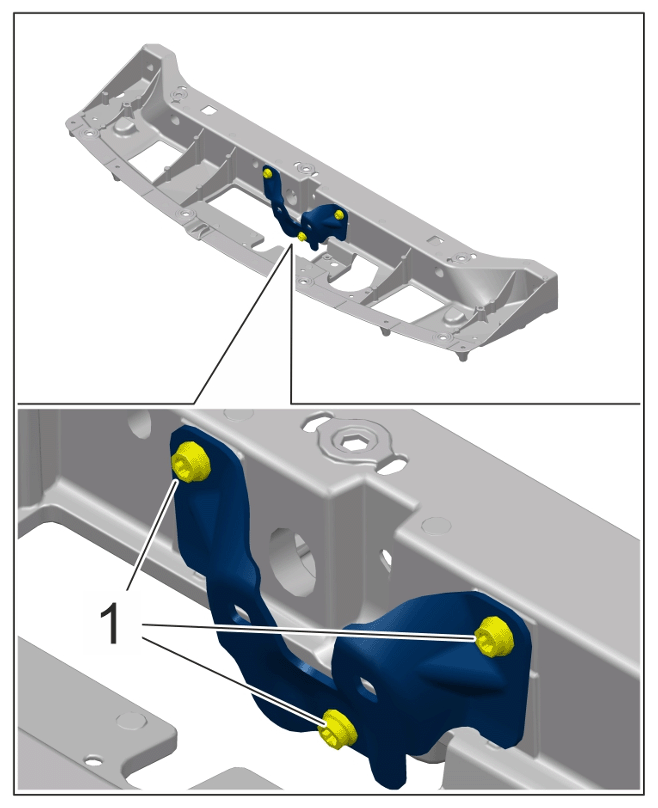

Screw securing bracket reinforcement to lock carrier Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	13 (9.5 ftlb.) Nm
