Front Wheel Housing Liner

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value

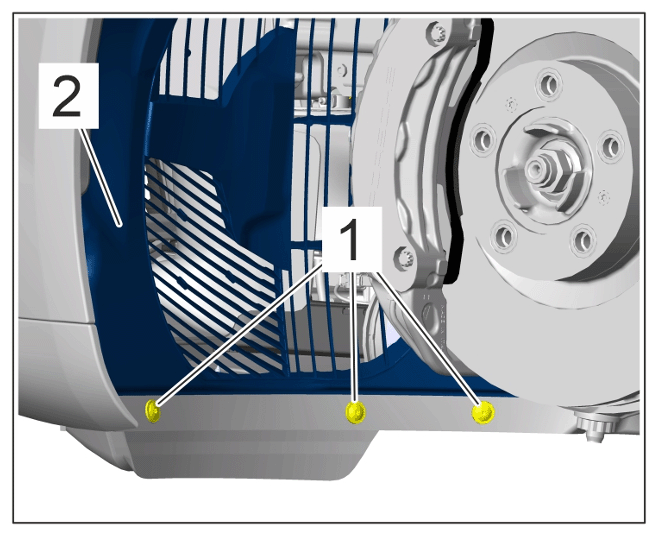

Bottom screws securing front wheel housing liner to underbody cover Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	2.5 (1.75 ftlb.) Nm

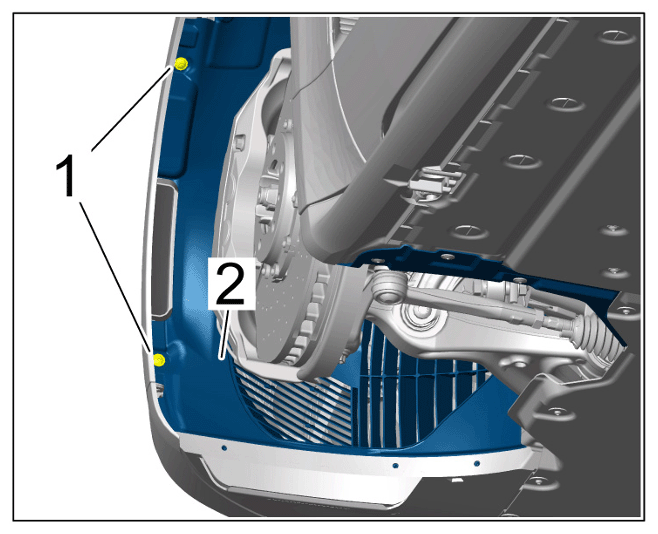

Bottom screws securing front wheel housing liner to front apron Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bottom screws	Item 1	Tightening torque	2.5 (1.75 ftlb.) Nm

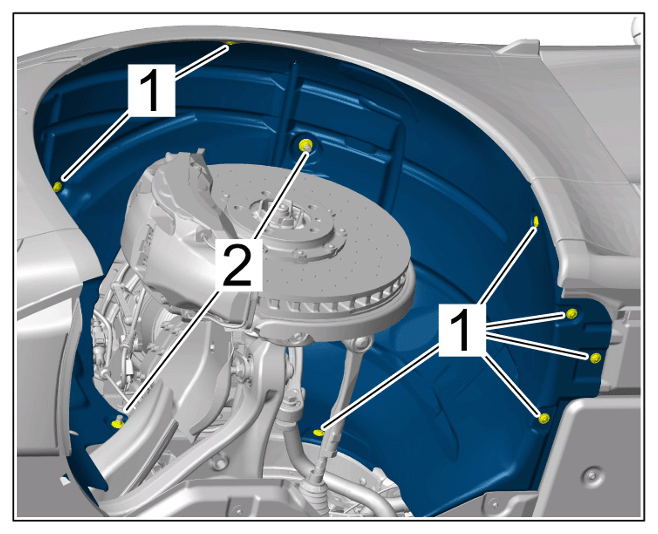

Side screws securing front wheel housing liner to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	2.5 (1.75 ftlb.) Nm

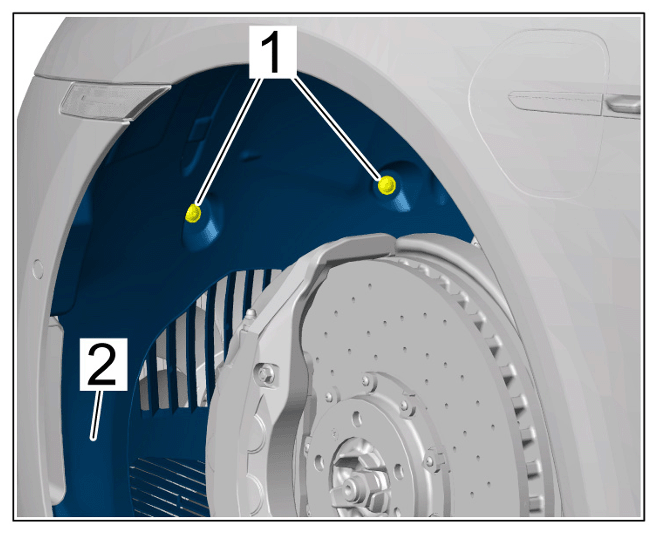

Top screws securing front wheel housing liner to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	2.5 (1.75 ftlb.) Nm

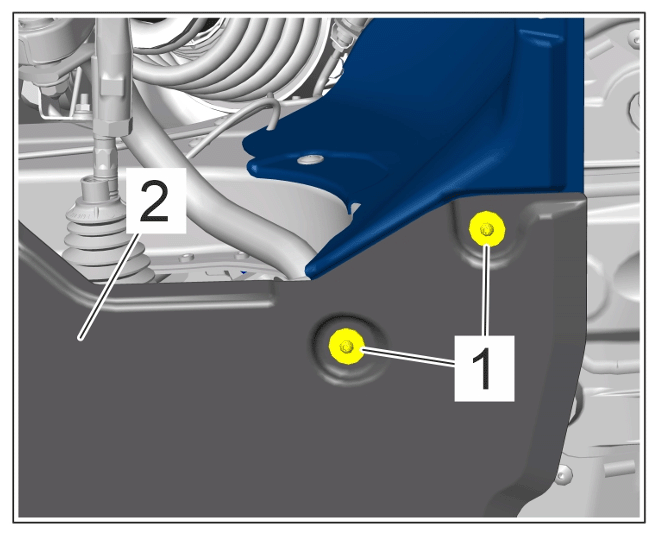

Bottom screws securing front wheel housing liner to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	2.5 (1.75 ftlb.) Nm
Bottom nuts securing front wheel housing liner to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 2	Tightening torque	2.5 (1.75 ftlb.) Nm

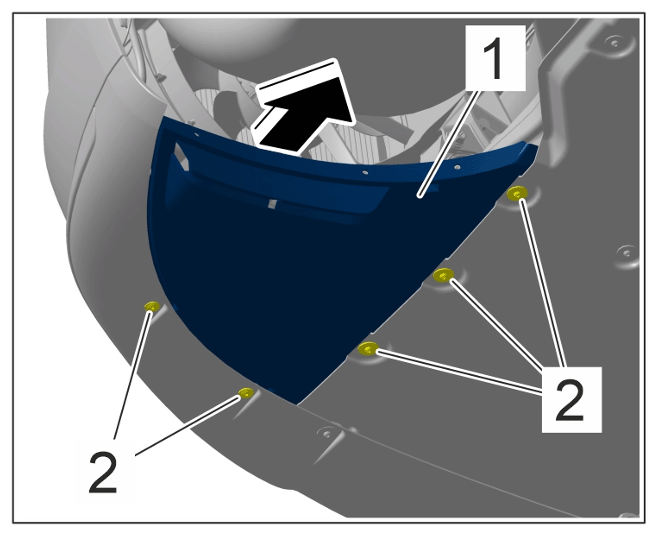

Screws securing front wheel housing liner (front section) to front apron and front underbody panelling Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (front section)	Item 2	Tightening torque	2.5 (1.8 ftlb.) Nm
