Front Axle

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value

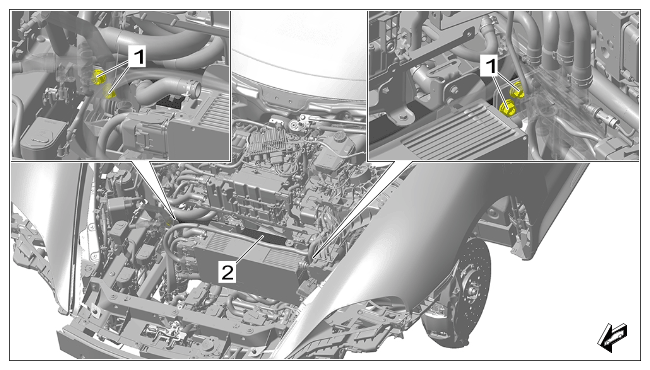

Bolt securing cross member to body (front) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bolts near steering gear	Initial tightening/Item 1/Always replace bolts following removal	Tightening torque	40 (30 ftlb.) Nm
Bolt securing cross member to body (front) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bolts near steering gear	Final tightening/Item 1/Always replace bolts following removal	Torque angle	+ 90 °

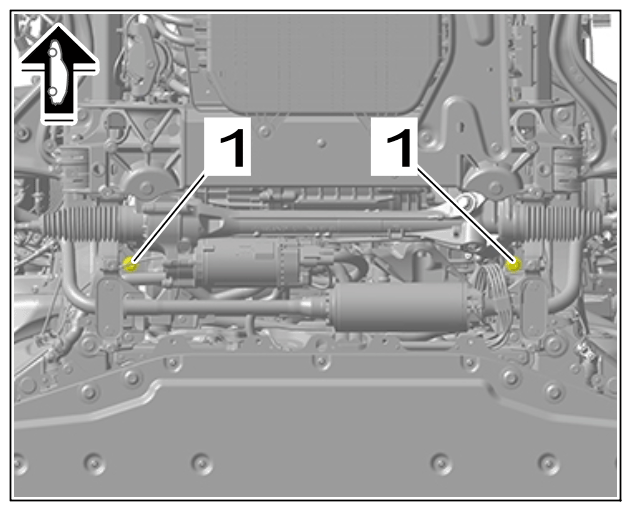

Bolt securing cross member to body (bottom) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross member bolts	Initial tightening/Item 1/Always replace bolts following removal	Tightening torque	50 (37 ftlb.) Nm
Bolt securing cross member to body (bottom) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross member bolts	Final tightening/Item 1/Always replace bolts following removal	Torque angle	+ 180 °

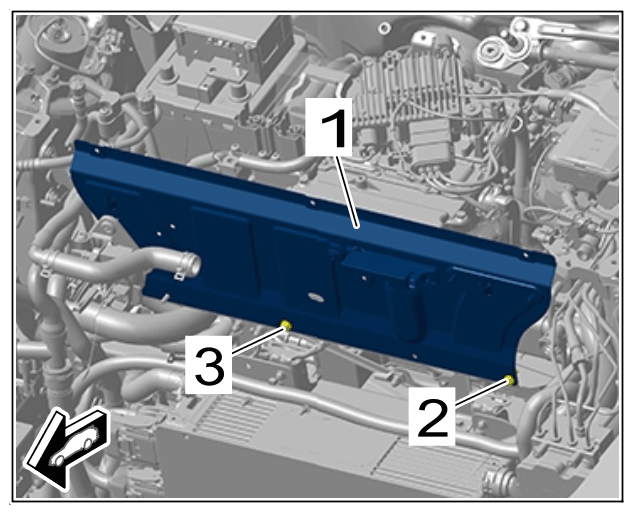

Nut securing cross panel to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross panel	Item 3	Tightening torque	8 (6 ftlb.) Nm
Screw securing cross panel to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross panel	Item 2	Tightening torque	5 (3.5 ftlb.) Nm

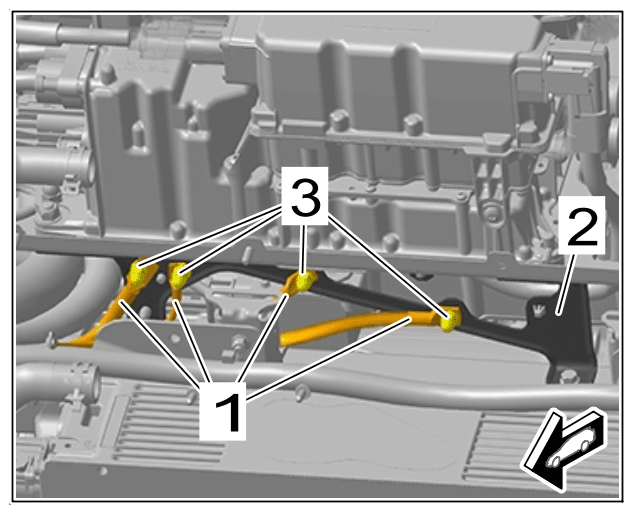

Nut securing ground lines to floor plate Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground lines to floor plate	Item 3	Tightening torque	8 (6 ftlb.) Nm

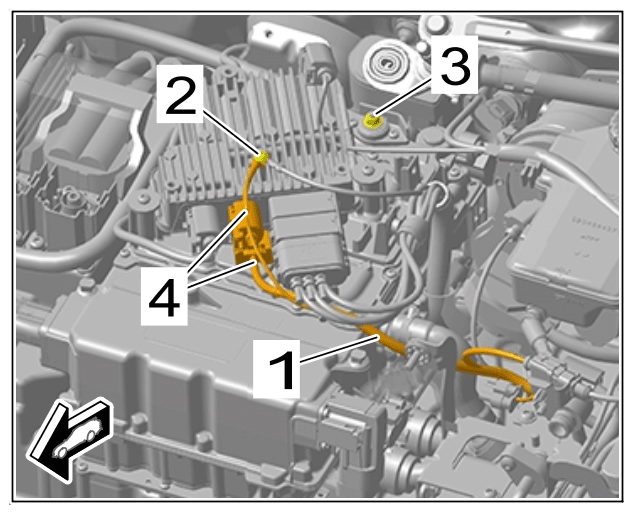

Nut on front PDCC ground line Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric wire harness near brake fluid reservoir	Item 3	Tightening torque	5 (3.5 ftlb.) Nm
