Tail Light

TECHNICAL VALUE SPECIFICATION - TAIL LIGHT

Location	Description	Type	Basic value	Tolerance

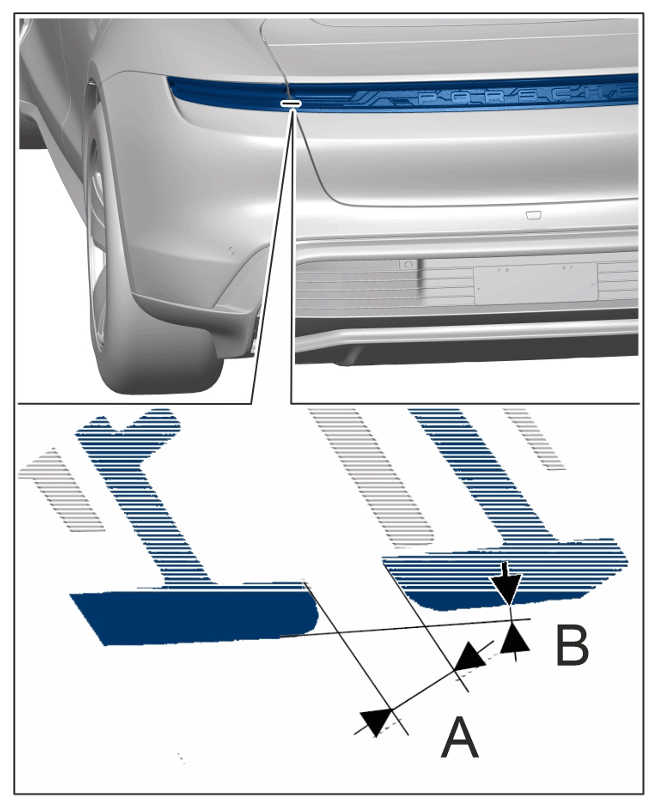

Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2) (H13) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2)	Dimension A	Gap dimension	4 mm	+/- 1 mm
Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2) (H13) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2)	Dimension B	Offset	1 mm	+/- 0.5 mm

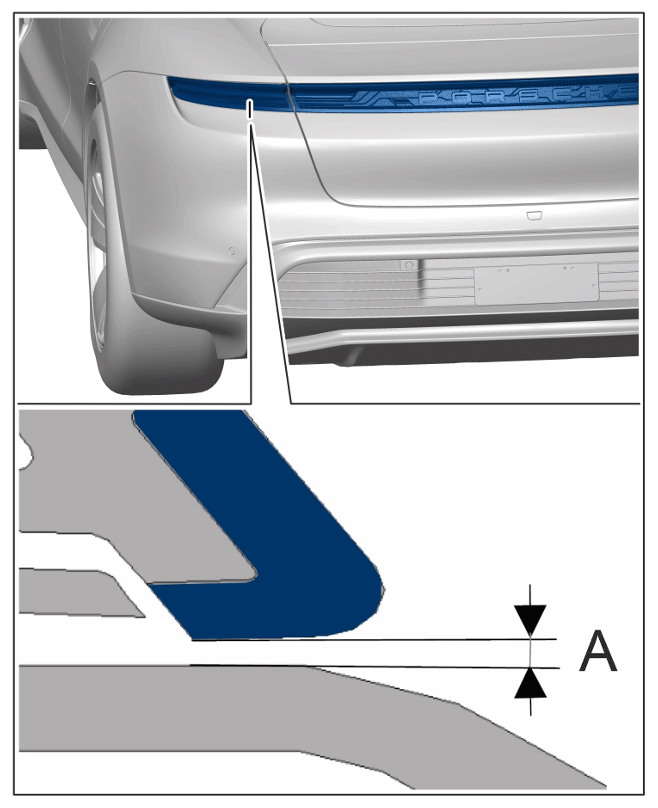

Tail/brake/direction indicator/reversing lights 1 (SBBR1) to rear apron (H14) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail/brake/direction indicator/reversing lights 1 (SBBR1) to rear apron	Dimension A	Gap dimension	0.8 mm	+/- 0.7 mm

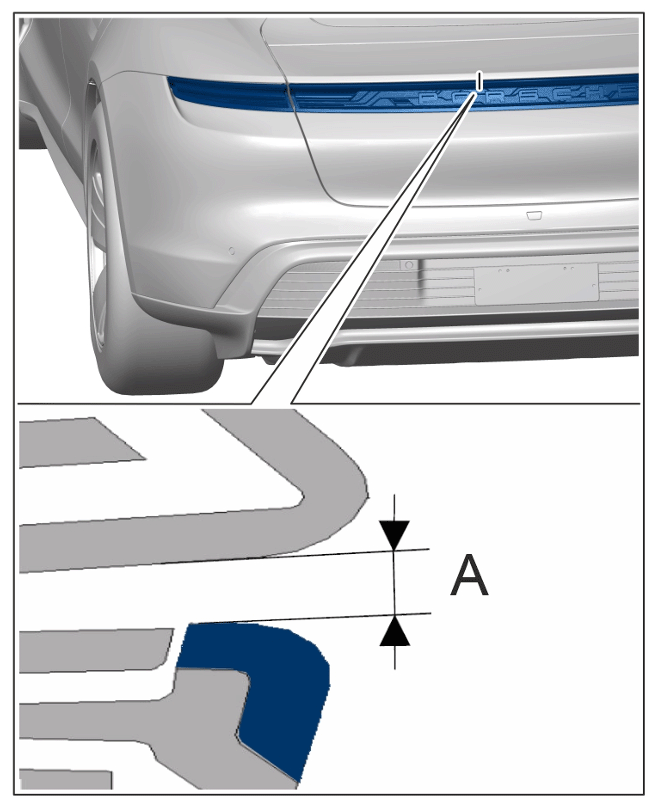

Tail/brake/direction indicator/reversing lights 2 (SBBR2) to tailgate (H20) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail/brake/direction indicator/reversing lights 2 (SBBR2) to tailgate	Dimension A	Gap dimension	1 mm	+/- 0.7 mm
