Side Marker

TECHNICAL VALUE SPECIFICATION - SIDE MARKER

Location	Description	Type	Basic value	Tolerance

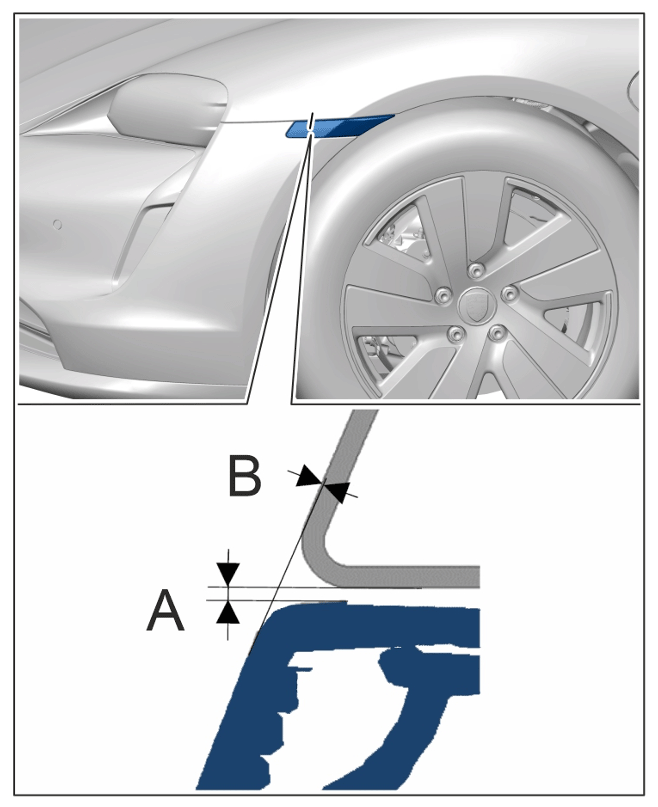

Wing to side marker (S13_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to side marker	Dimension	A Gap dimension	0.75 mm	+/- 0.5 mm
Wing to side marker (S13_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to side marker	Dimension B	Offset	0 mm	+/- 0.5 mm

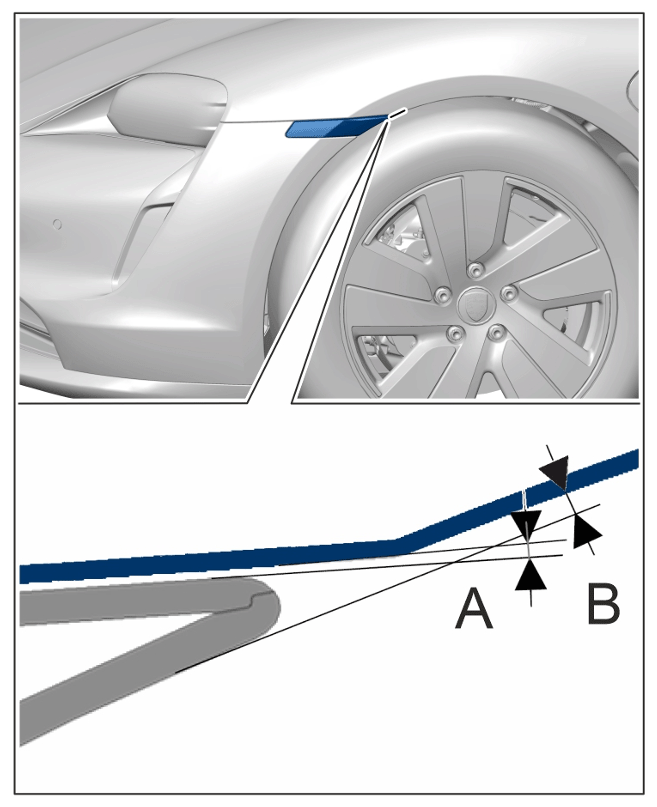

Wing to side marker (S13_2) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to side marker	Dimension	A Gap dimension	0.75 mm	+/- 0.5 mm
Wing to side marker (S13_2) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to side marker	Dimension B	Offset	- 2 mm	+/- 1 mm

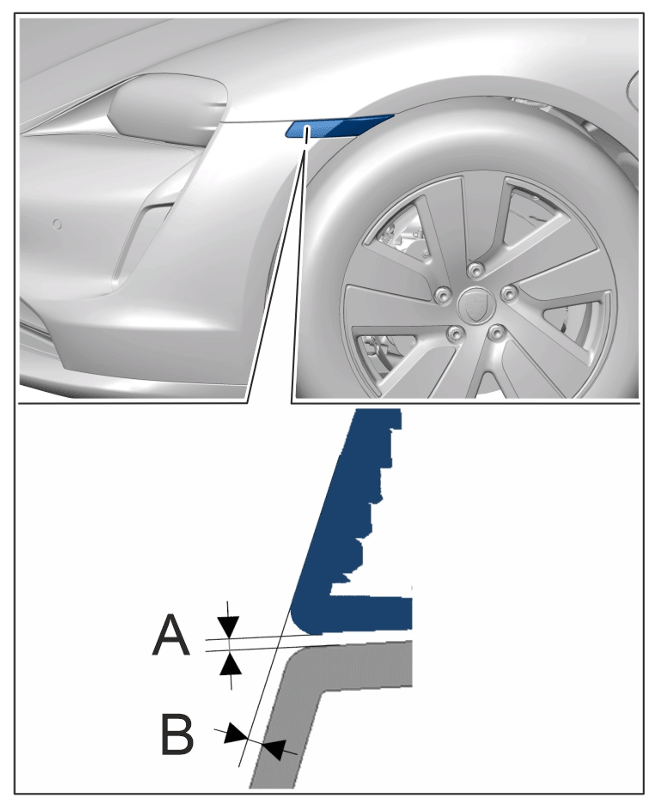

Front apron to side marker (S13a_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front apron to side marker	Dimension	A Gap dimension	0.75 mm	+/- 0.5 mm
Front apron to side marker (S13a_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front apron to side marker	Dimension B	Offset	- 1 mm	+/- 0.5 mm

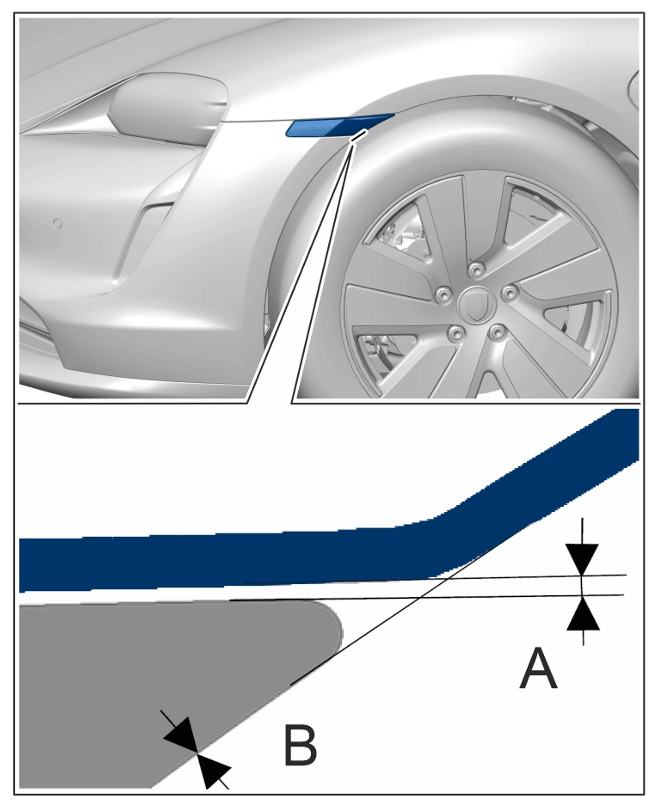

Front apron to side marker (S13a_2) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front apron to side marker	Dimension	A Gap dimension	0.75 mm	+/- 0.5 mm
Front apron to side marker (S13a_2) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front apron to side marker	Dimension B	Offset	0 mm	+/- 1 mm
