Rear Lid

TECHNICAL VALUE SPECIFICATION - REAR LID

Location	Description	Type	Basic value	Tolerance

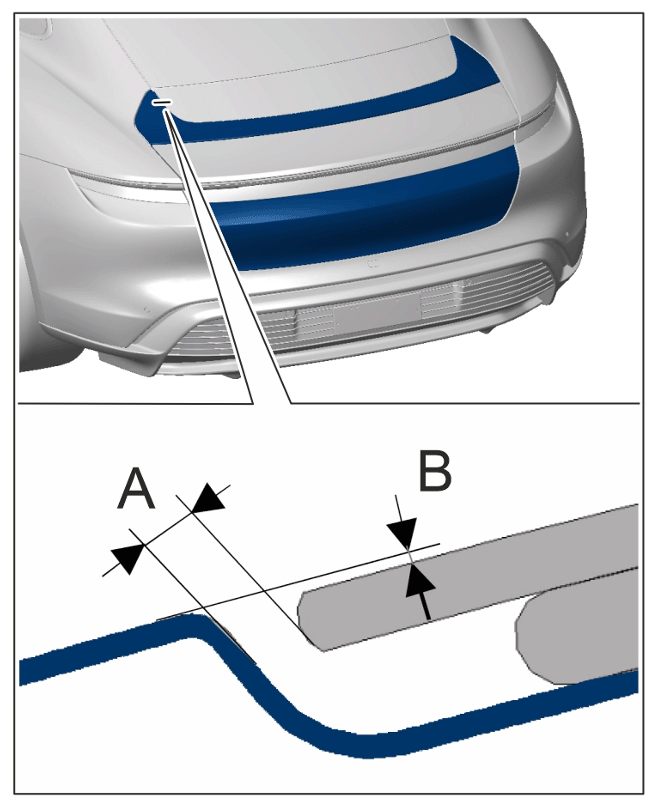

Tailgate to side panel (H42) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to side panel	Dimension	A Gap dimension	3.5 mm	+/- 0.7 mm
Tailgate to side panel (H42) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to side panel	Dimension B	Offset	0 mm	+/- 0.8 mm

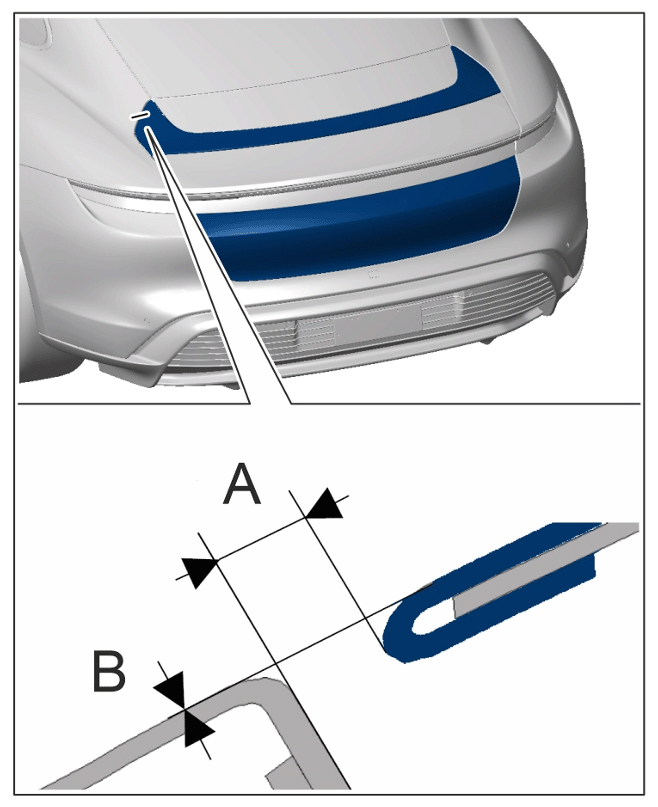

Tailgate to trim (H47_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to trim	Dimension	A Gap dimension	3 mm
Tailgate to trim (H47_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to trim	Dimension B	Offset	0.5 mm
