Technical Values: Door/Wing
TECHNICAL VALUE SPECIFICATION - DOOR/WING
| Location |
Description |
Type |
Basic value |
Tolerance |

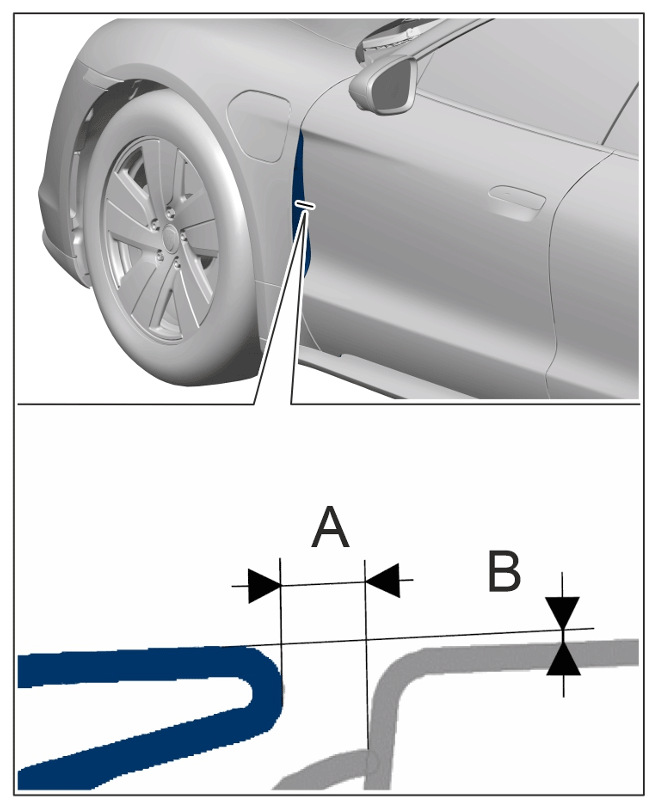

Wing trim to door (S20a)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Wing trim to door |
Dimension |
A Gap dimension |
3.5 mm |
+/- 0.6 mm |
Wing trim to door (S20a)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Wing trim to door |
Dimension B |
Offset |
0.5 mm |
+/- 0.5 mm |
