TECHNICAL VALUE SPECIFICATION - DOOR/DOOR SILL

Location	Description	Type	Basic value	Tolerance

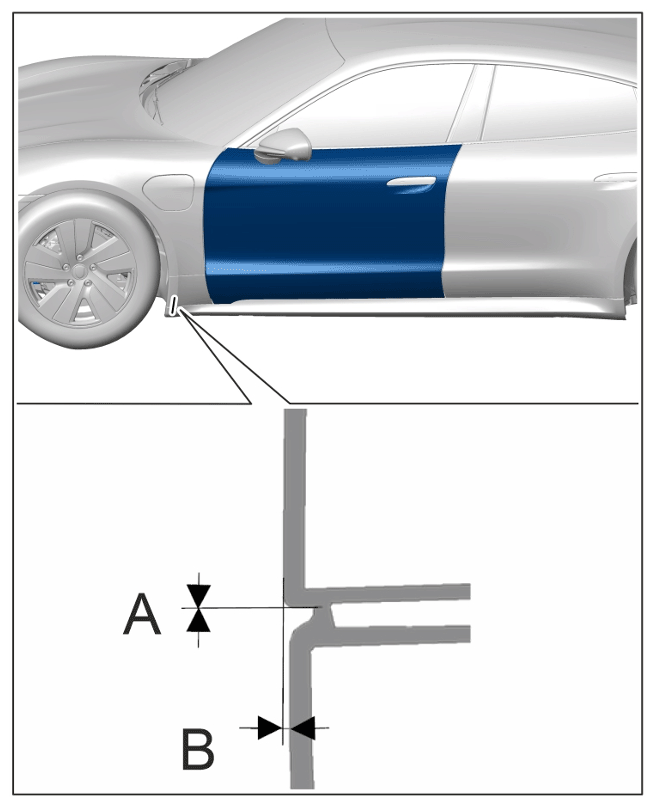

Door sill to cover on wing (S11_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door sill to cover on wing	Dimension	A Gap dimension	0 mm
Door sill to cover on wing (S11_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door sill to cover on wing	Dimension B	Offset	- 0.5 mm	+/- 1 mm

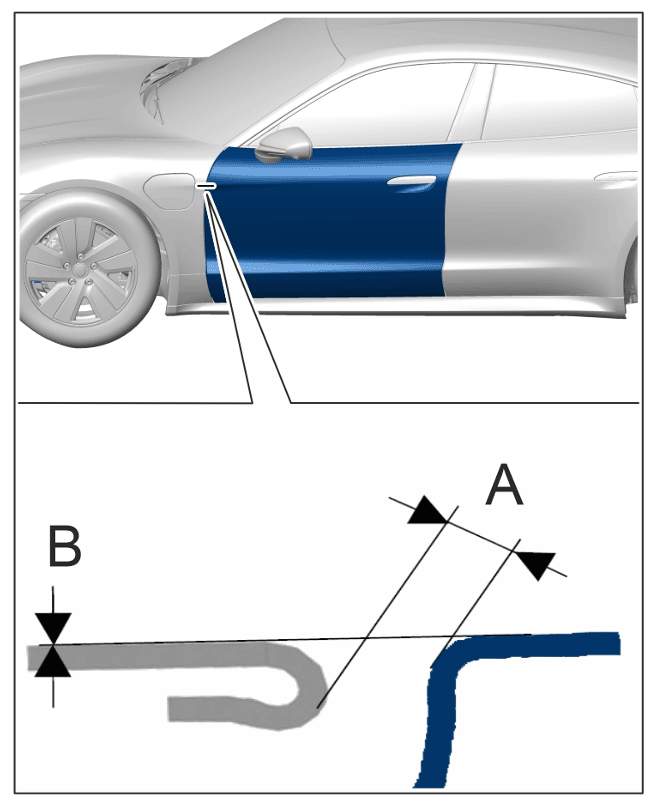

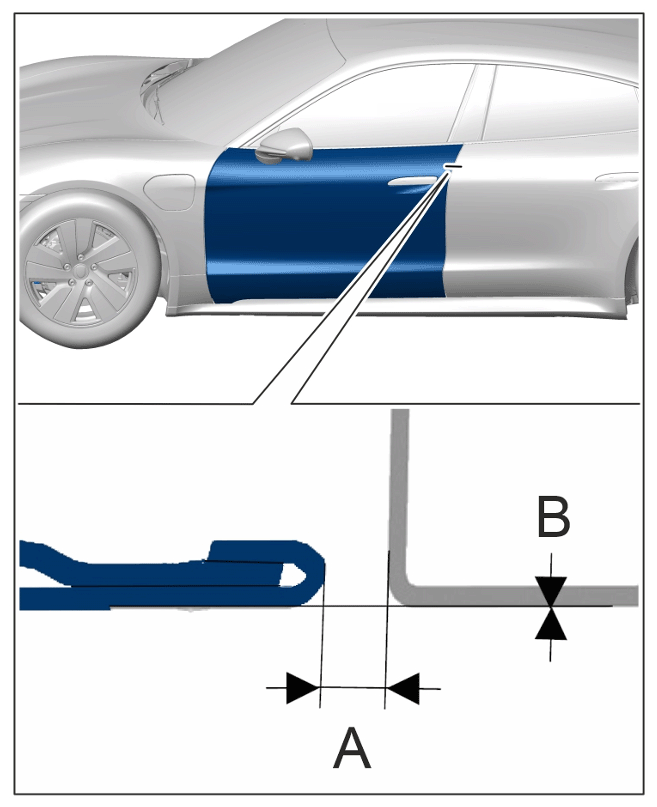

Front door to wing (S20_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to wing	Dimension	A Gap dimension	3.5 mm	+/- 0.5 mm
Front door to wing (S20_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to wing	Dimension B	Offset	0 mm	- 1 mm

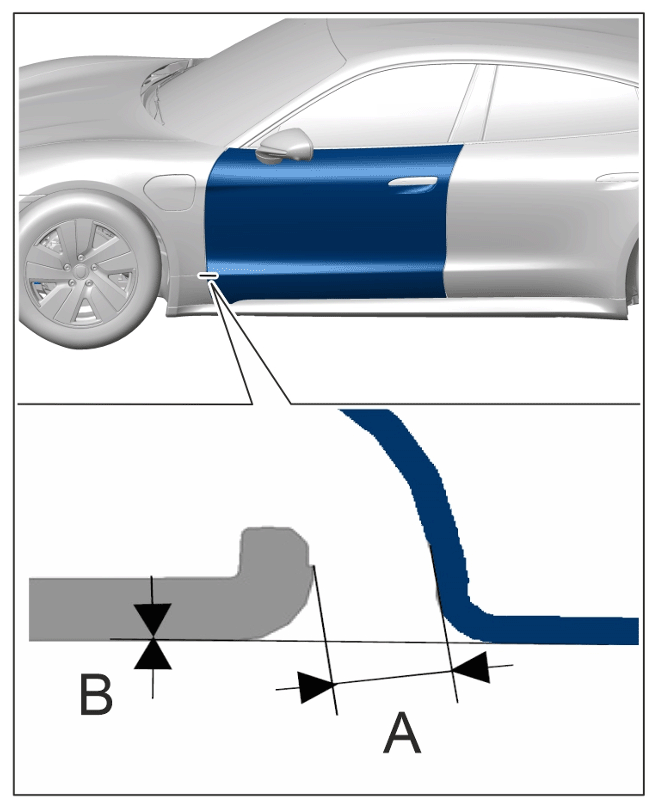

Front door to wing (S20_2) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to wing	Dimension A	Gap dimension	4 mm	+/- 0.5 mm
Front door to wing (S20_2) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to wing	Dimension B	Offset	0 mm	- 1 mm

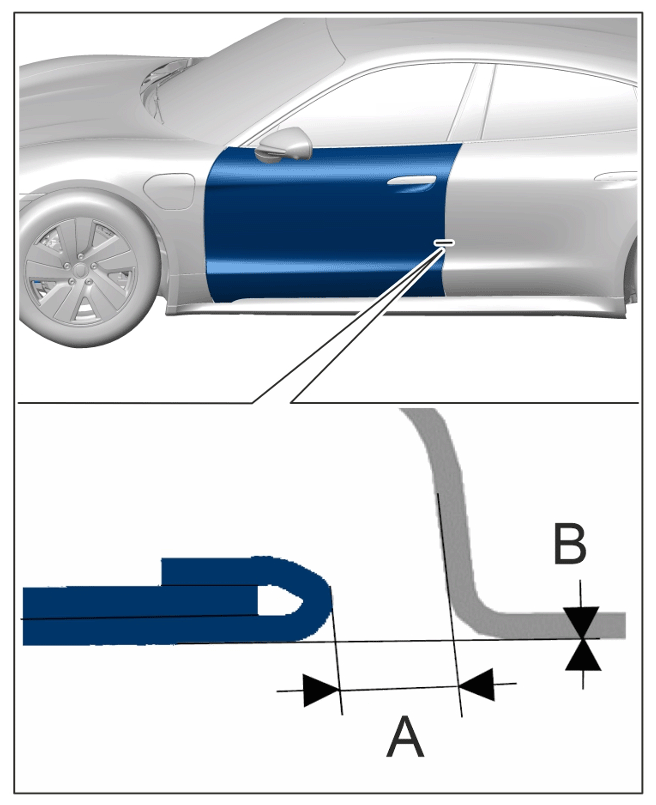

Front door to rear door (S22_0) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to wing	Dimension	A Gap dimension	4.2 mm	+/- 0.5 mm
Front door to rear door (S22_0) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to wing	Dimension B	Offset	0 mm	0.8 mm
Front door to rear door (S22_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to rear door	Dimension	A Gap dimension	3.5 mm	+/- 0.5 mm
Front door to rear door (S22_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to rear door	Dimension B	Offset	0 mm	0.8 mm

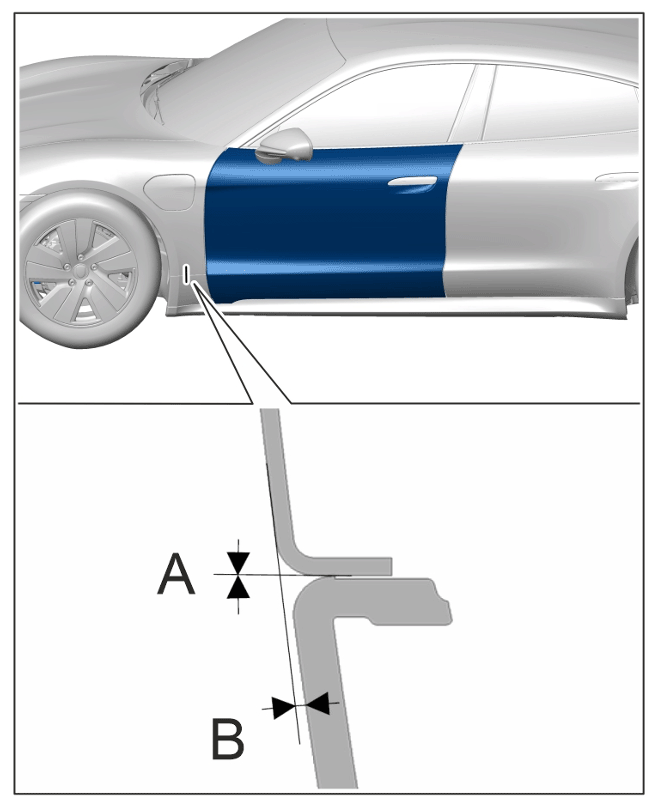

Wing to cover on wing (S29_2) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to cover on wing	Dimension	A Gap dimension	0 mm	+/- 0.5 mm
Wing to cover on wing (S29_2) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to cover on wing	Dimension B	Offset	0.5 mm	- 1 mm

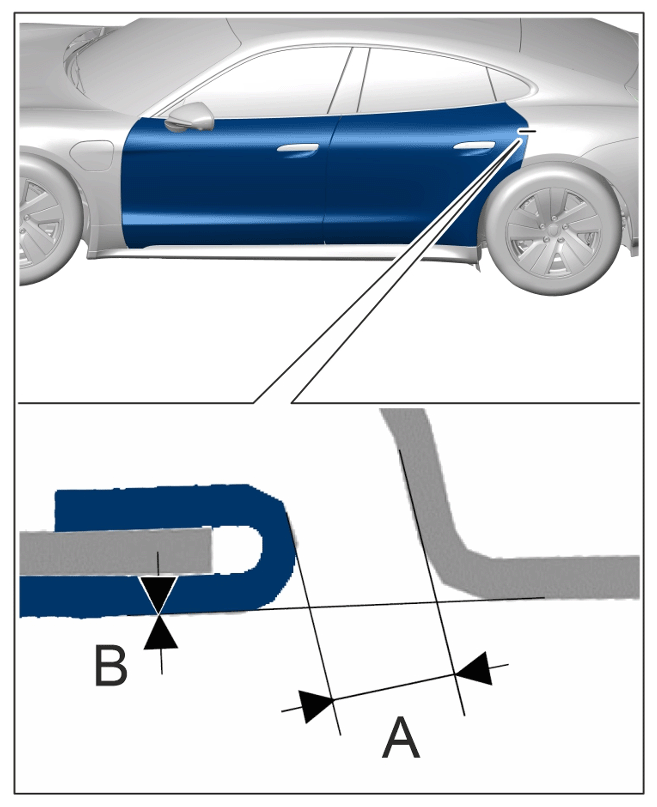

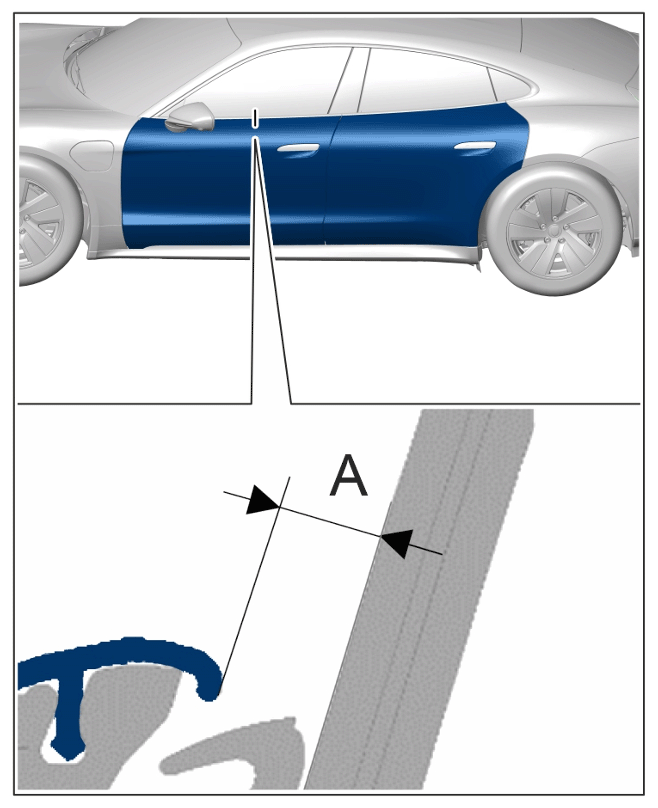

Rear door to side panel (S25) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear door to side panel	Dimension	A Gap dimension	3.5 mm	+/- 0.5 mm
Rear door to side panel (S25) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear door to side panel	Dimension B	Offset	0 mm	0.8 mm

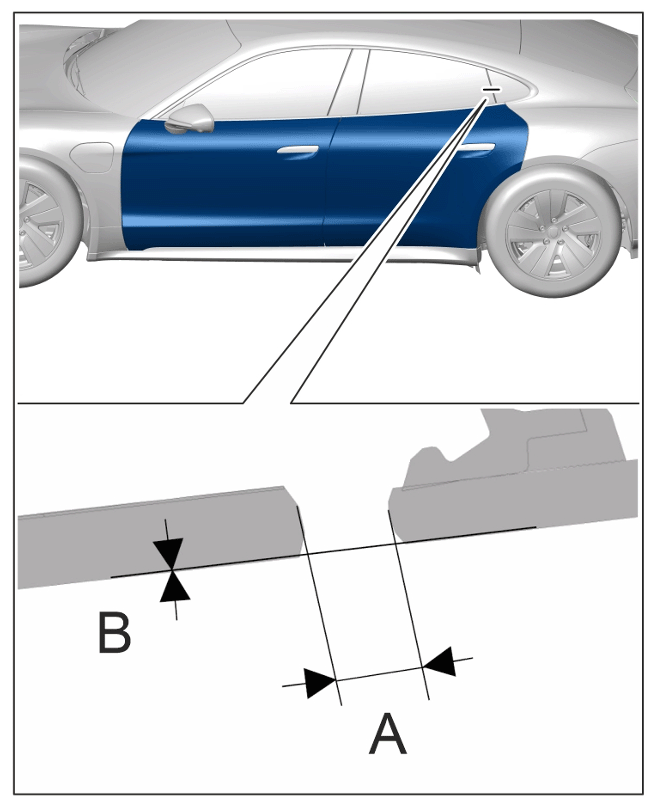

Side window to rear window (S26) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side window to rear window	Dimension	A Gap dimension	7 mm	+/- 1 mm
Side window to rear window (S26) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side window to rear window	Dimension B	Offset	0 mm	+/- 1 mm

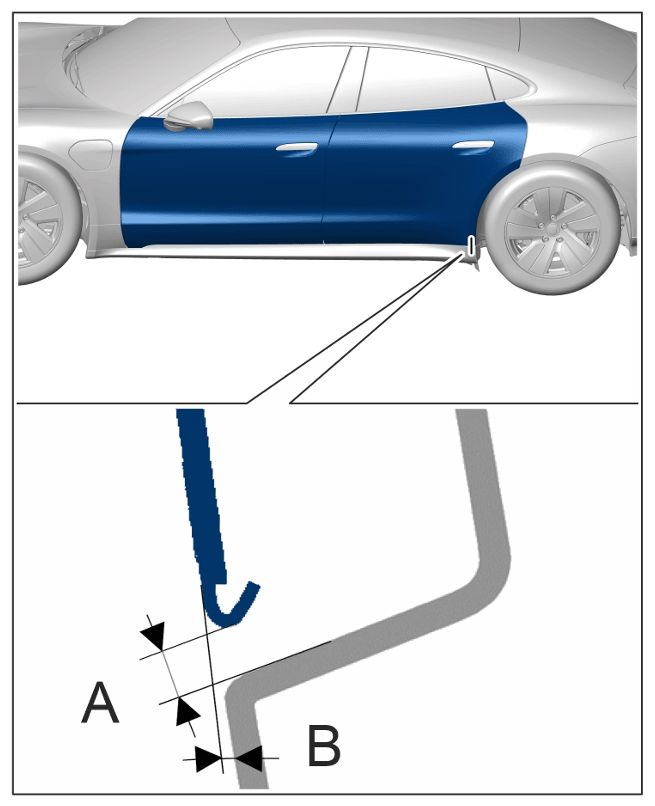

Rear door to door sill (S28) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear door to door sill	Dimension	A Gap dimension	4.5 mm	+/- 1.1 mm
Rear door to door sill (S28) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear door to door sill	Dimension B	Offset	0.5 mm	+/- 1.1 mm
Front door to front door window (SK312) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door window	Dimension	A Gap dimension	5 mm	+/- 0.8 mm

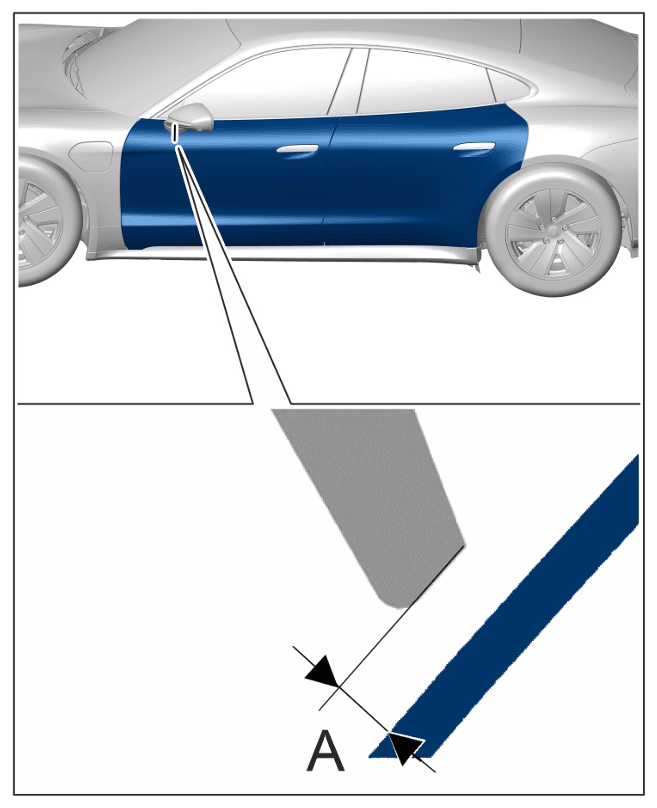

Mirror base to door (SP100) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mirror base to door	Dimension	A Gap dimension	1.5 mm	+/- 1 mm
