Door Handle

TECHNICAL VALUE SPECIFICATION - DOOR HANDLE

Location	Description	Type	Basic value	Tolerance

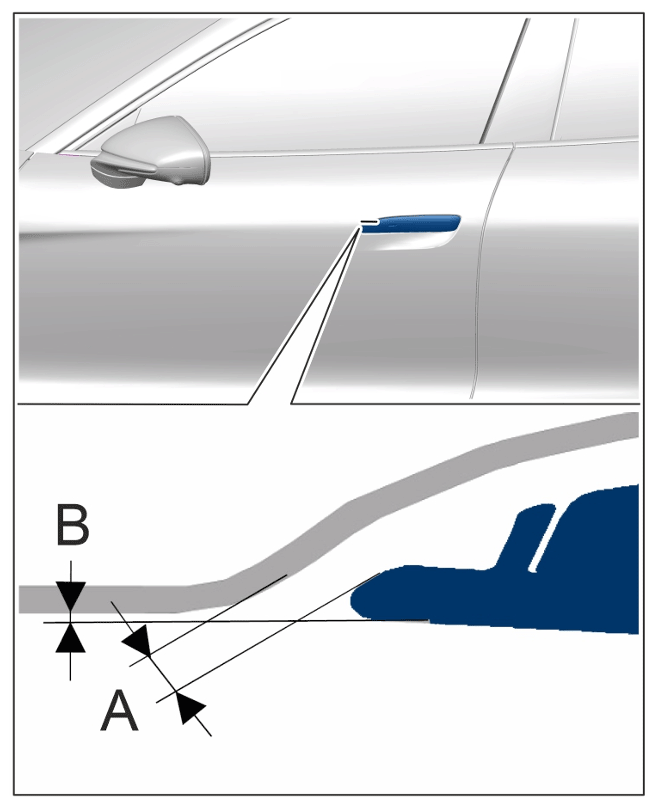

Front door to front door handle (SP310_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door handle	Dimension	A Gap dimension	1.5 mm	+/- 0.5 mm
Front door to front door handle (SP310_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door handle	Dimension B	Offset	- 0.5 mm	+/- 0.5 mm

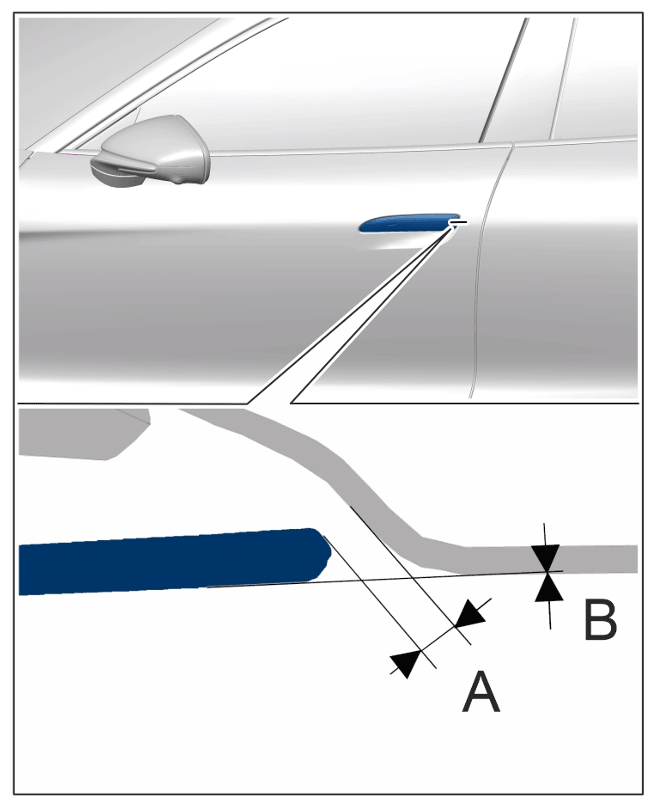

Front door to front door handle (SP310_2) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door handle	Dimension	A Gap dimension	1.5 mm	+/- 0.5 mm
Front door to front door handle (SP310_2) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door handle	Dimension B	Offset	0 mm	+/- 0.5 mm

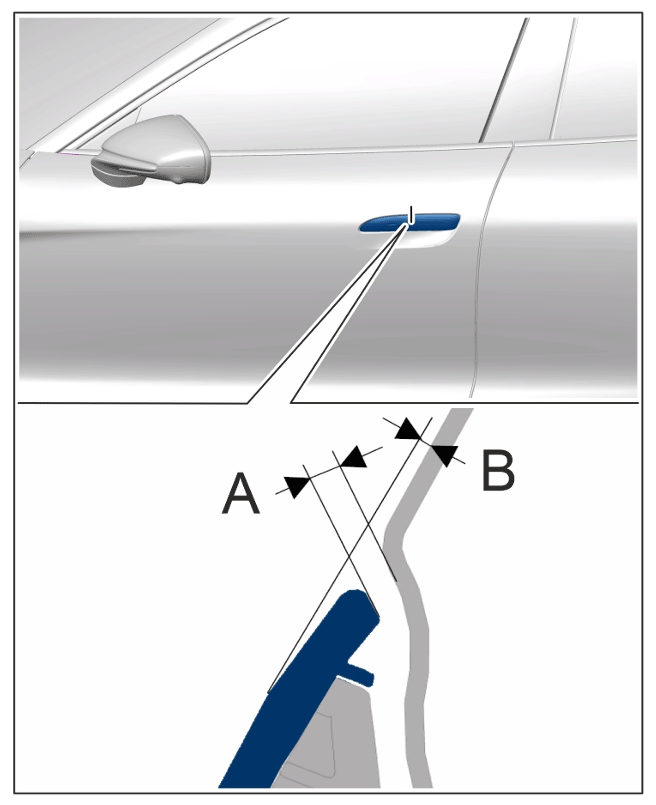

Front door to front door handle (SP311_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door handle	Dimension	A Gap dimension	1.5 mm	+/- 0.5 mm
Front door to front door handle (SP311_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door handle	Dimension B	Offset	- 0.3 mm	+/- 0.5 mm
