Charge Port Door, Mechanical

TECHNICAL VALUE SPECIFICATION - CHARGE PORT DOOR, MECHANICAL

Location	Description	Type	Basic value	Tolerance

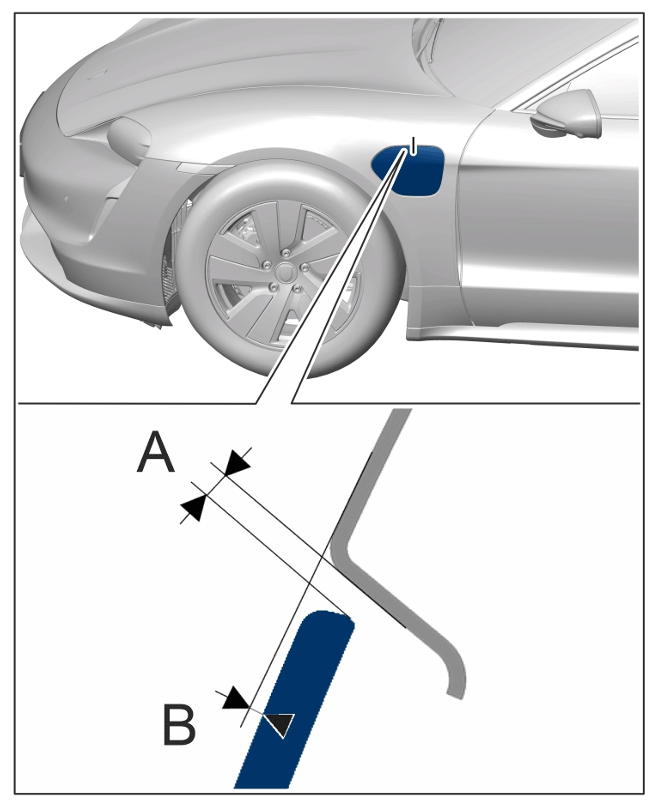

Wing to charge port door (S40) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door	Dimension	A Gap dimension	2.3 mm	+/- 0.3 mm
Wing to charge port door (S40) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door	Dimension B	Offset	0.5 mm	+/- 0.25 mm

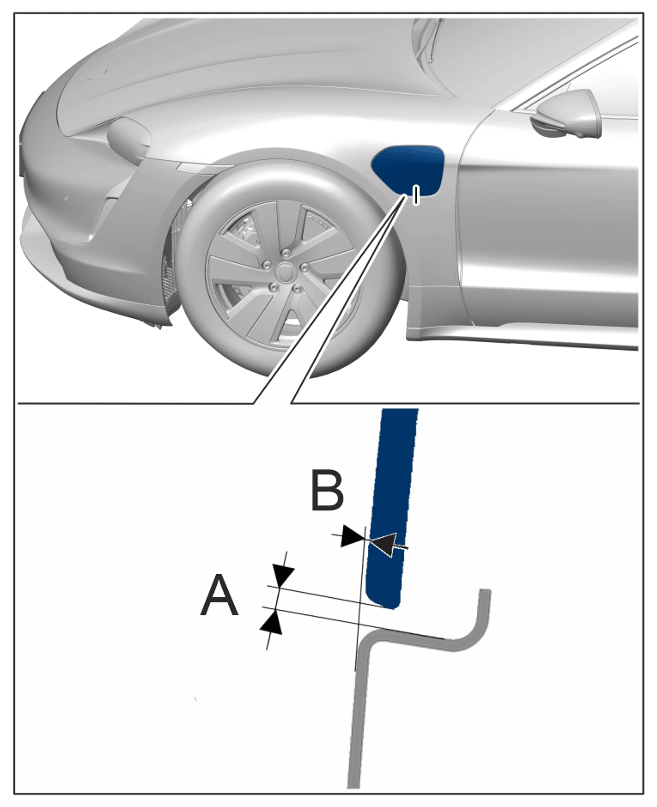

Wing to charge port door (S41) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door	Dimension	A Gap dimension	2.3 mm	+/- 0.3 mm
Wing to charge port door (S41) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door	Dimension B	Offset	0.4 mm	+/- 0.25 mm

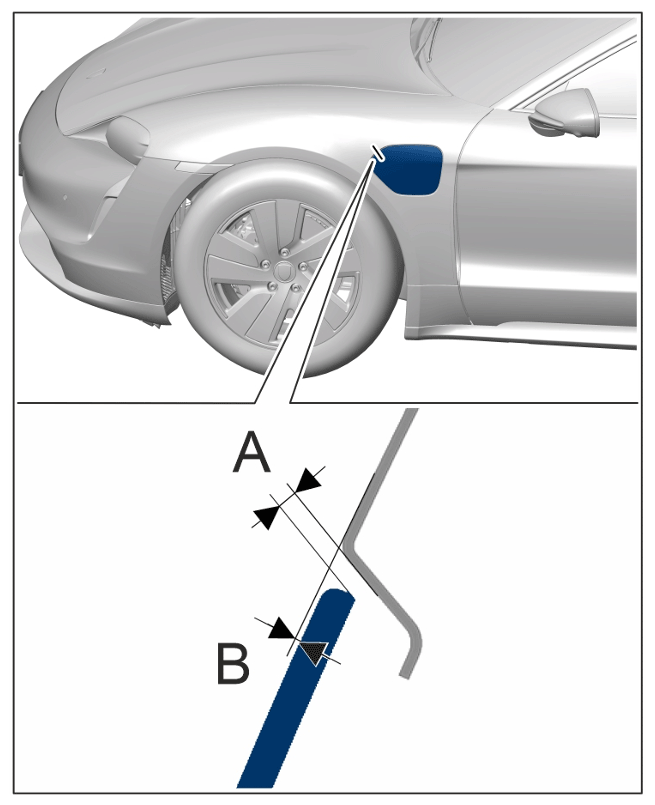

Wing to charge port door (S42_0) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door	Dimension	A Gap dimension	2.3 mm	+/- 0.3 mm
Wing to charge port door (S42_0) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door	Dimension B	Offset	0.25 mm	+/- 0.25 mm

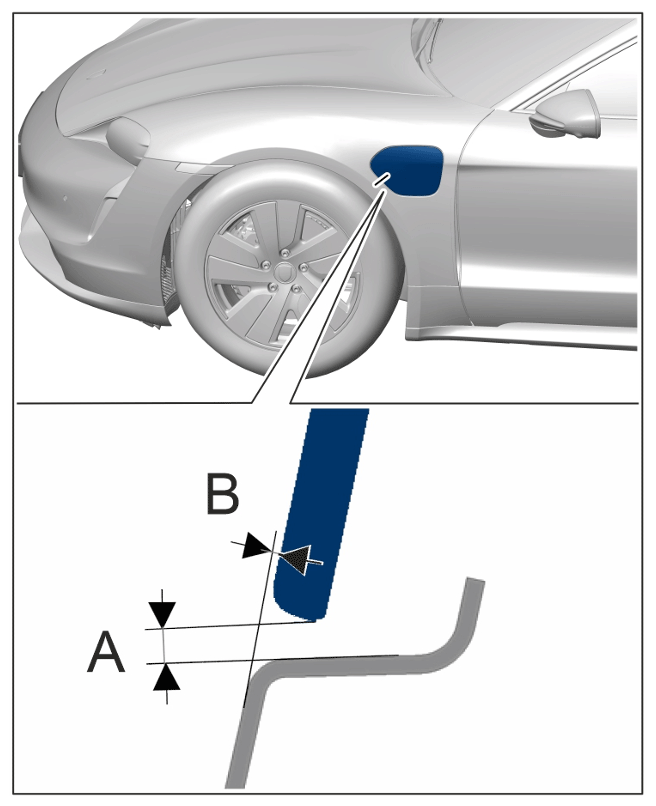

Wing to charge port door (S42_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door	Dimension	A Gap dimension	2.5 mm	+/- 0.3 mm
Wing to charge port door (S42_1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door	Dimension B	Offset	0.25 mm	+/- 0.25 mm

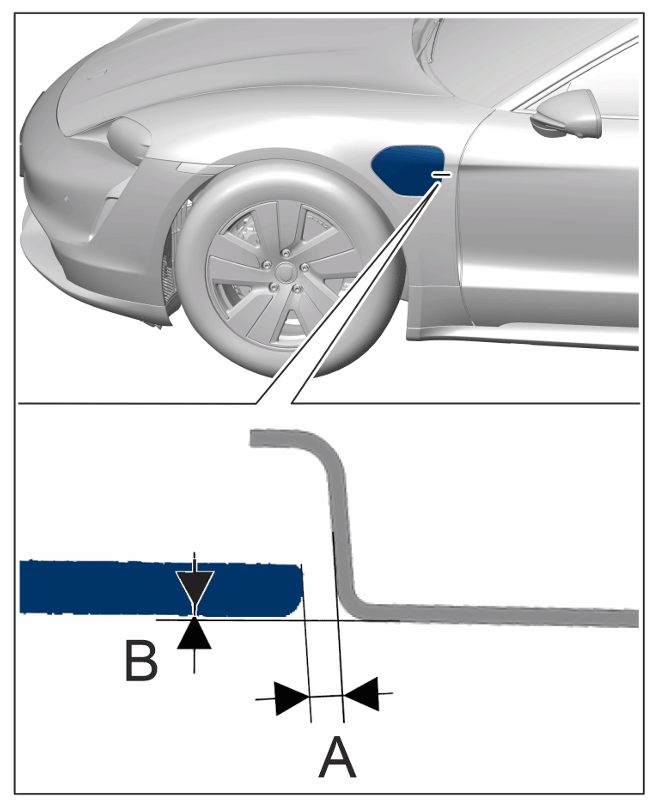

Wing to charge port door (S43) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door	Dimension	A Gap dimension	2.5 mm	+/- 0.3 mm
Wing to charge port door (S43) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door	Dimension B	Offset	0.25 mm	+/- 0.25 mm
