WM, 5X00IN Gap Dimensions: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Wing to side marker (S13_1)
G14404794Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to side marker		 Dimension A Gap dimension 0.75 mm +/- 0.5 mm

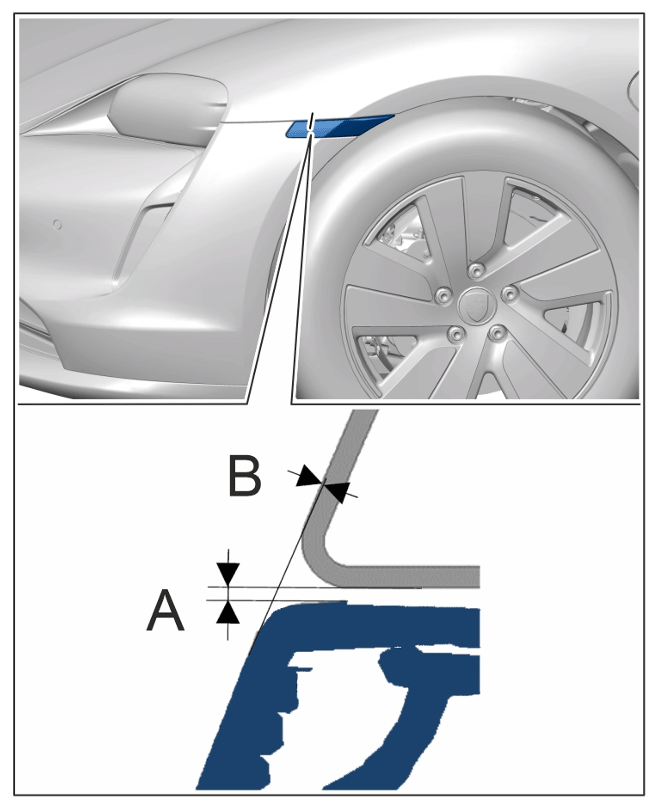

Wing to side marker (S13_1)
G14404795Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to side marker		 Dimension B Offset 0 mm +/- 0.5 mm

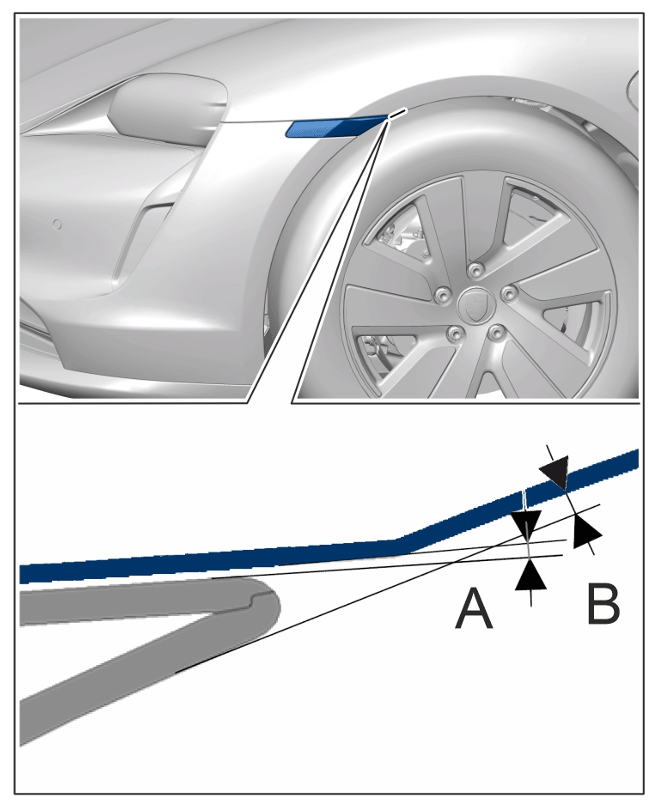

Wing to side marker (S13_2)
G14404796Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to side marker		 Dimension A Gap dimension 0.75 mm +/- 0.5 mm
Wing to side marker (S13_2)
G14404797Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to side marker		 Dimension B Offset - 2 mm +/- 1 mm

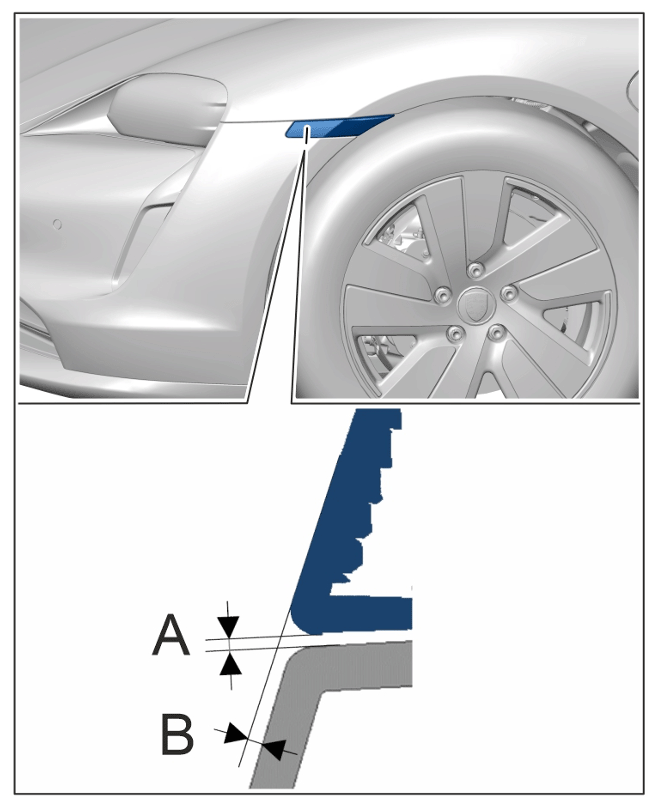

Front apron to side marker (S13a_1)
G14404798Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front apron to side marker		 Dimension A Gap dimension 0.75 mm +/- 0.5 mm
Front apron to side marker (S13a_1)
G14404799Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front apron to side marker		 Dimension B Offset - 1 mm +/- 0.5 mm
Front apron to side marker (S13a_2)
G14404800Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front apron to side marker		 Dimension A Gap dimension 0.75 mm +/- 0.5 mm

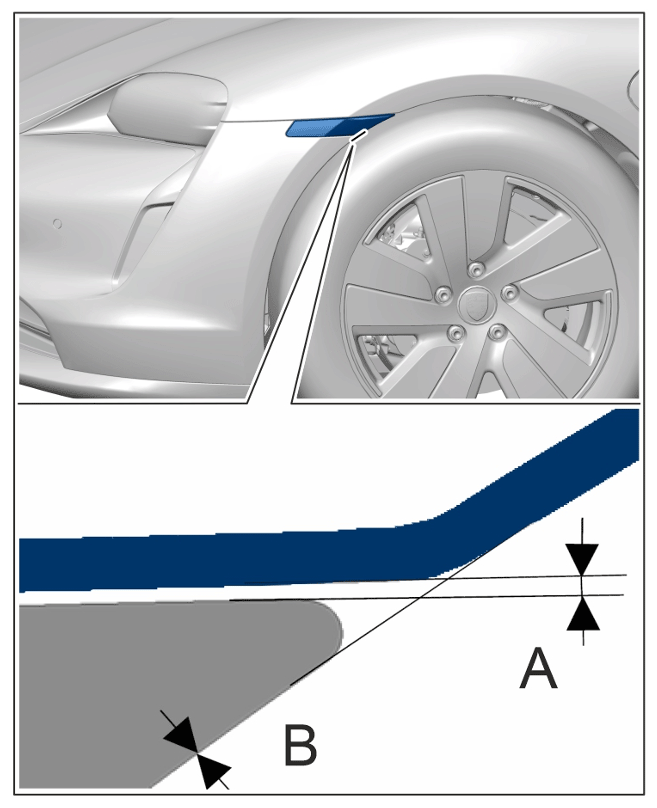

Front apron to side marker (S13a_2)
G14404801Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front apron to side marker		 Dimension B Offset 0 mm +/- 1 mm
Wing trim to door (S20a)
G14404802Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing trim to door		 Dimension A Gap dimension 3.5 mm +/- 0.6 mm

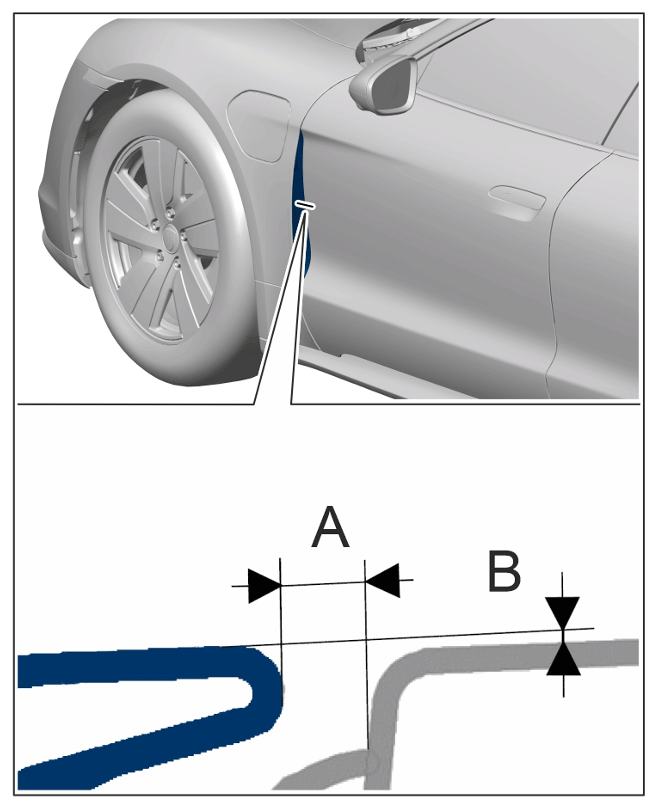

Wing trim to door (S20a)
G14404803Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing trim to door		 Dimension B Offset 0.5 mm +/- 0.5 mm
Wing to charge port door (S40)
G14404804Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension A Gap dimension 2.3 mm +/- 0.3 mm

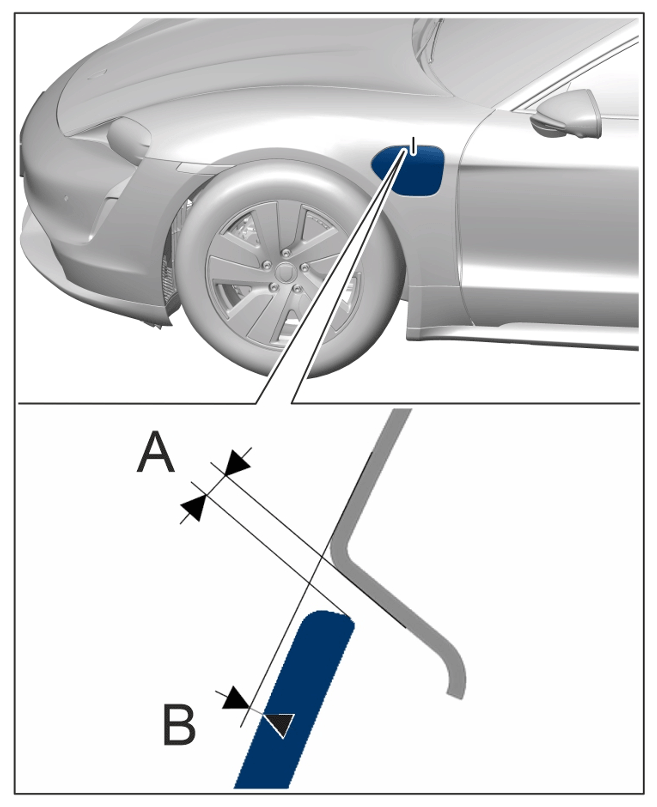

Wing to charge port door (S40)
G14404805Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension B Offset 0.5 mm +/- 0.25 mm
Wing to charge port door (S41)
G14404806Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension A Gap dimension 2.3 mm +/- 0.3 mm
Wing to charge port door (S41)
G14404807Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension B Offset 0.4 mm +/- 0.25 mm

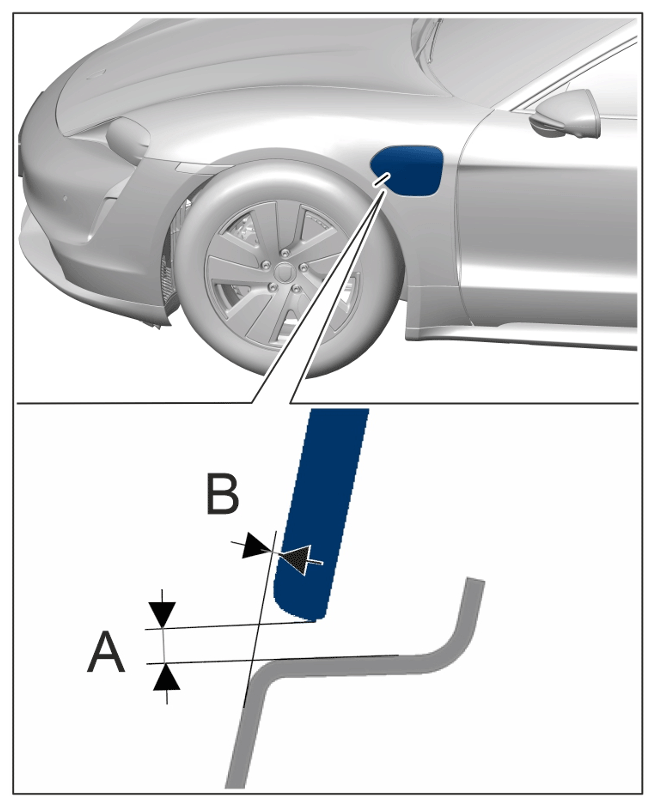

Wing to charge port door (S42_0)
G14404808Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension A Gap dimension 2.3 mm +/- 0.3 mm
Wing to charge port door (S42_0)
G14404809Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension B Offset 0.25 mm +/- 0.25 mm
Wing to charge port door (S42_1)
G14404810Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension A Gap dimension 2.5 mm +/- 0.3 mm

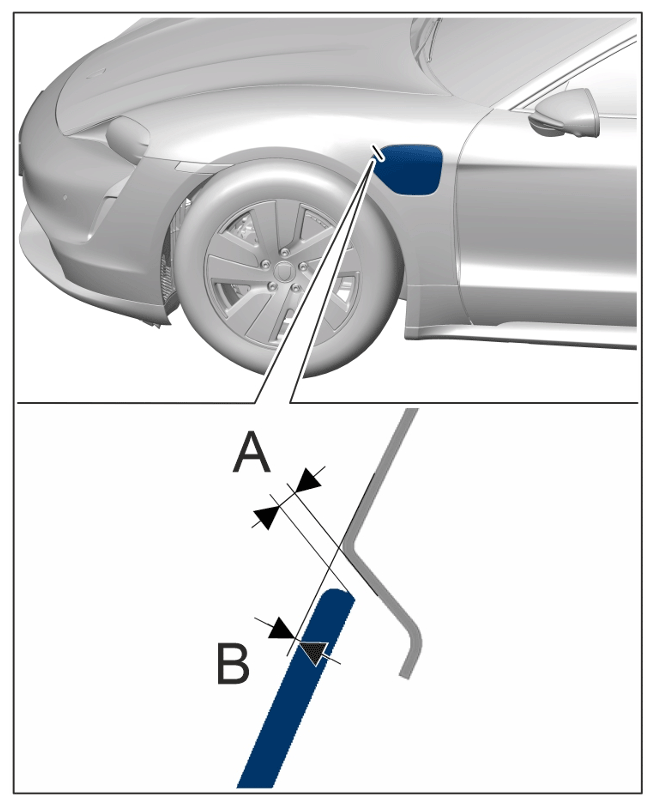

Wing to charge port door (S42_1)
G14404811Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension B Offset 0.25 mm +/- 0.25 mm

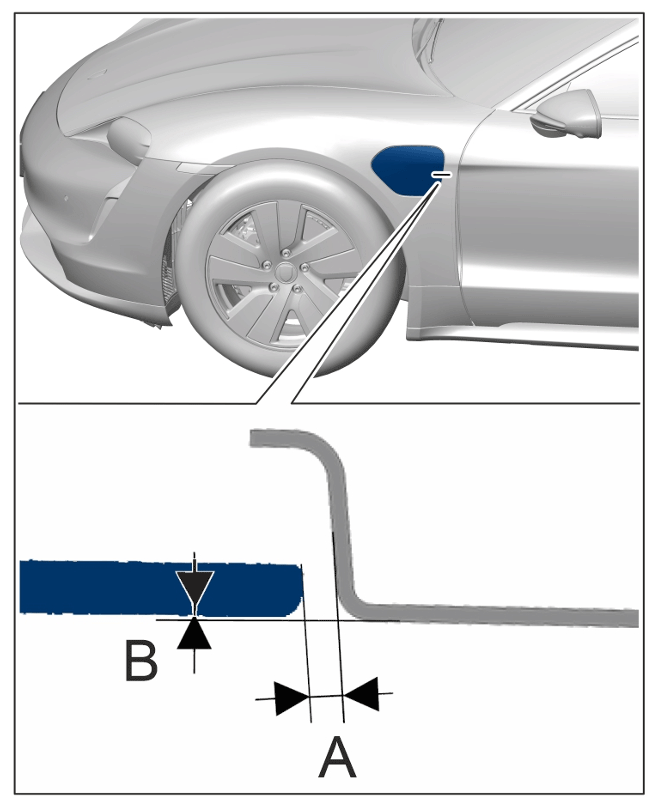

Wing to charge port door (S43)
G14404812Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension A Gap dimension 2.5 mm +/- 0.3 mm
Wing to charge port door (S43)
G14404813Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension B Offset 0.25 mm +/- 0.25 mm
Wing to charge port door (S40)
G14404814Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension A Gap dimension 2 mm +/- 0.3 mm
Wing to charge port door (S40)
G14404815Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension B Offset 0.5 mm +/- 0.25 mm
Wing to charge port door (S41)
G14404816Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension A Gap dimension 2.3 mm +/- 0.3 mm

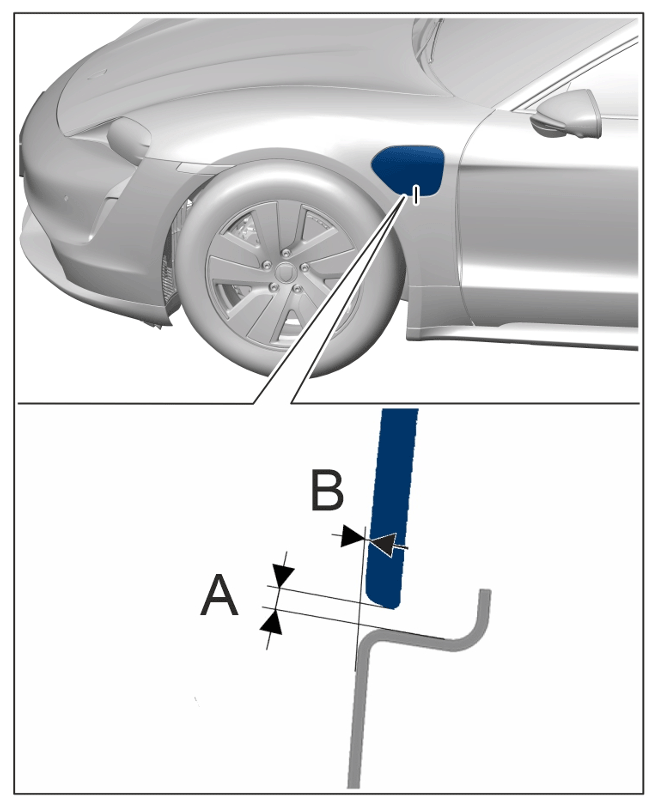

Wing to charge port door (S41)
G14404817Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension B Offset 0.4 mm +/- 0.25 mm
Wing to charge port door (S42_0)
G14404818Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension A Gap dimension 2.3 mm +/- 0.3 mm
Wing to charge port door (S42_0)
G14404819Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension B Offset 0.25 mm +/- 0.25 mm
Wing to charge port door (S42_1)
G14404820Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension A Gap dimension 2.2 mm +/- 0.3 mm
Wing to charge port door (S42_1)
G14404821Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension B Offset 0.3 mm +/- 0.25 mm
Wing to charge port door (S43)
G14404822Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension A Gap dimension 2.3 mm +/- 0.3 mm
Wing to charge port door (S43)
G14404823Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to charge port door		 Dimension B Offset 0.25 mm +/- 0.25 mm

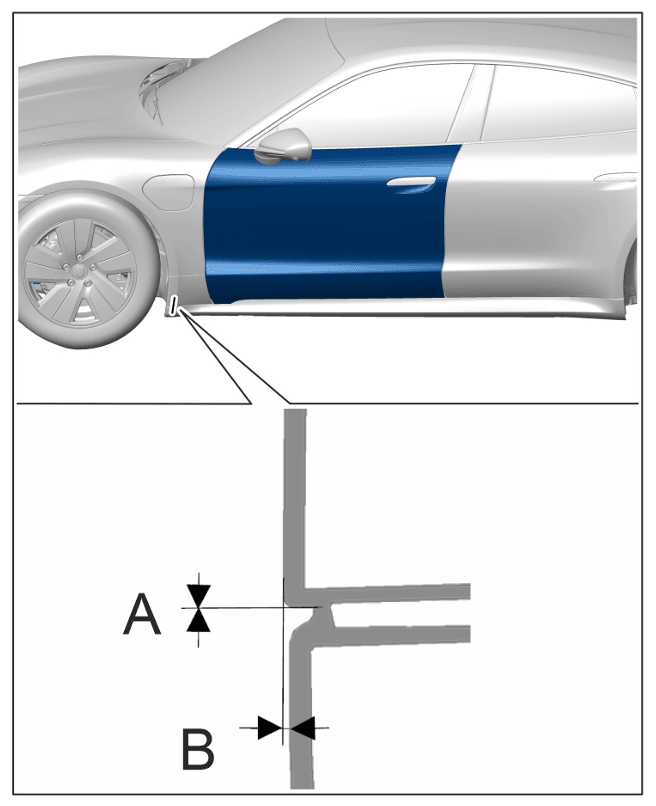

Door sill to cover on wing (S11_1)
G14404824Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door sill to cover on wing		 Dimension A Gap dimension 0 mm
Door sill to cover on wing (S11_1)
G14404825Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door sill to cover on wing		 Dimension B Offset - 0.5 mm +/- 1 mm
Front door to wing (S20_1)
G14404826Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to wing		 Dimension A Gap dimension 3.5 mm +/- 0.5 mm

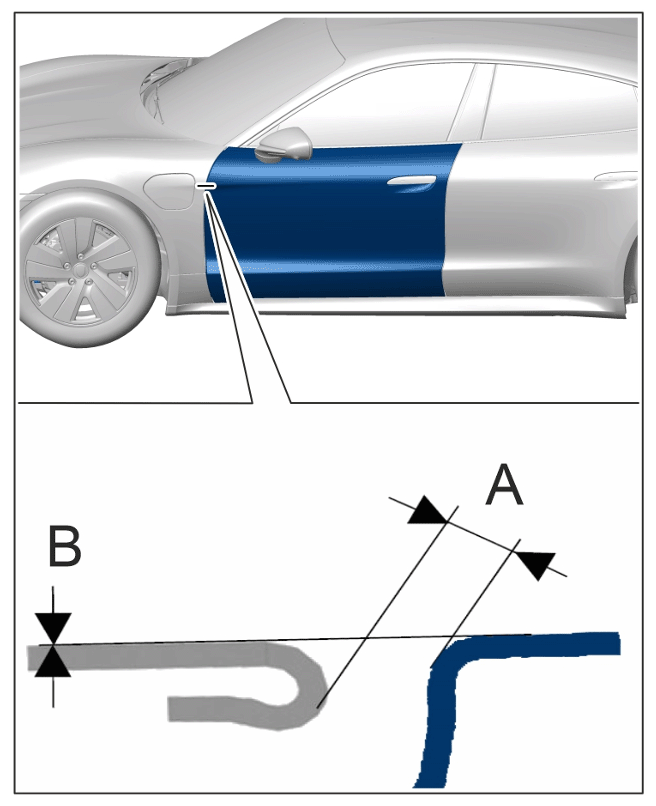

Front door to wing (S20_1)
G14404827Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to wing		 Dimension B Offset 0 mm - 1 mm
Front door to wing (S20_2)
G14404828Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to wing		 Dimension A Gap dimension 4 mm +/- 0.5 mm

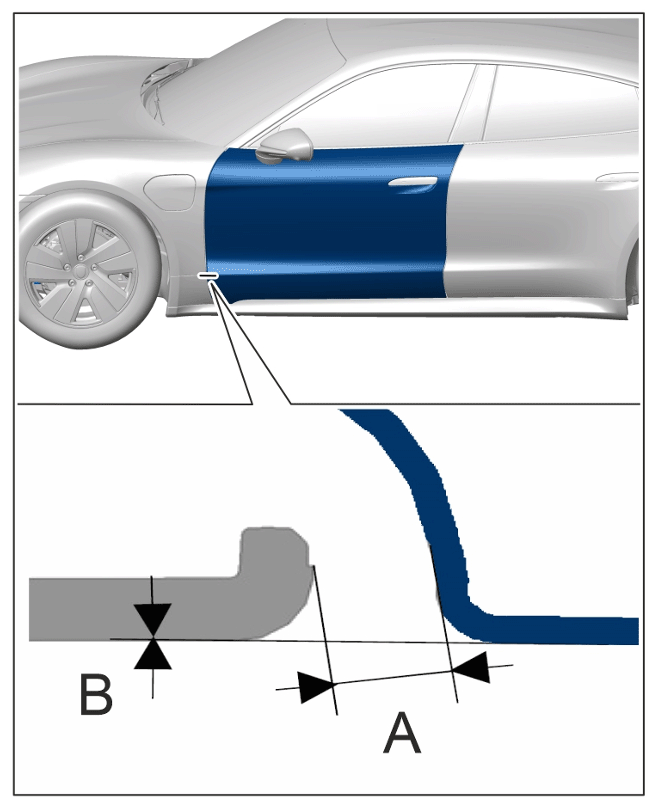

Front door to wing (S20_2)
G14404829Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to wing		 Dimension B Offset 0 mm - 1 mm
Front door to rear door (S22_0)
G14404830Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to wing		 Dimension A Gap dimension 4.2 mm +/- 0.5 mm

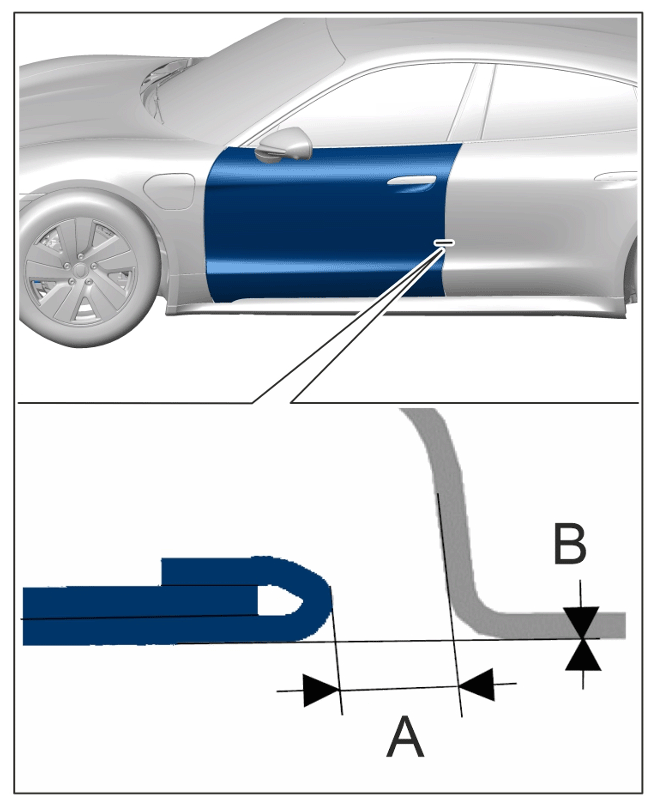

Front door to rear door (S22_0)
G14404831Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to wing		 Dimension B Offset 0 mm 0.8 mm

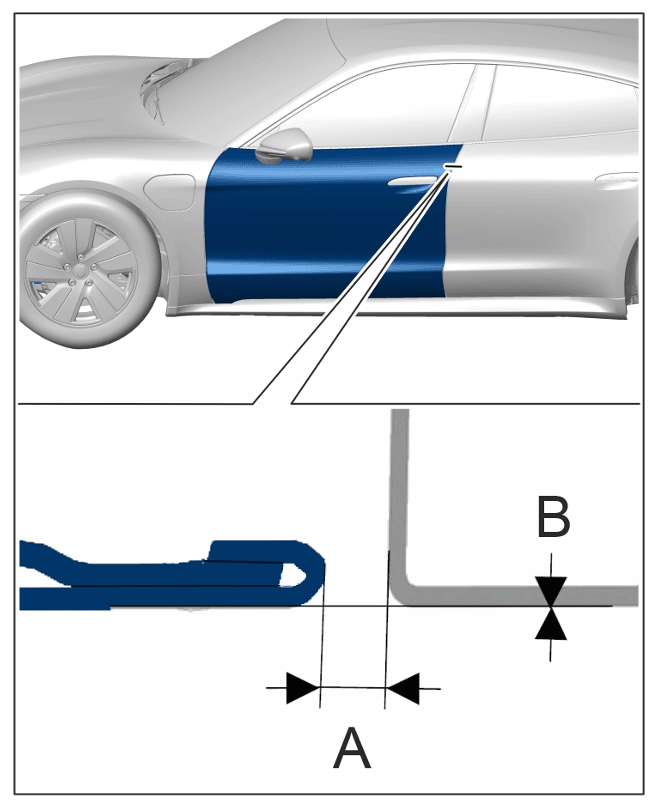

Front door to rear door (S22_1)
G14404832Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to rear door		 Dimension A Gap dimension 3.5 mm +/- 0.5 mm
Front door to rear door (S22_1)
G14404833Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to rear door		 Dimension B Offset 0 mm 0.8 mm

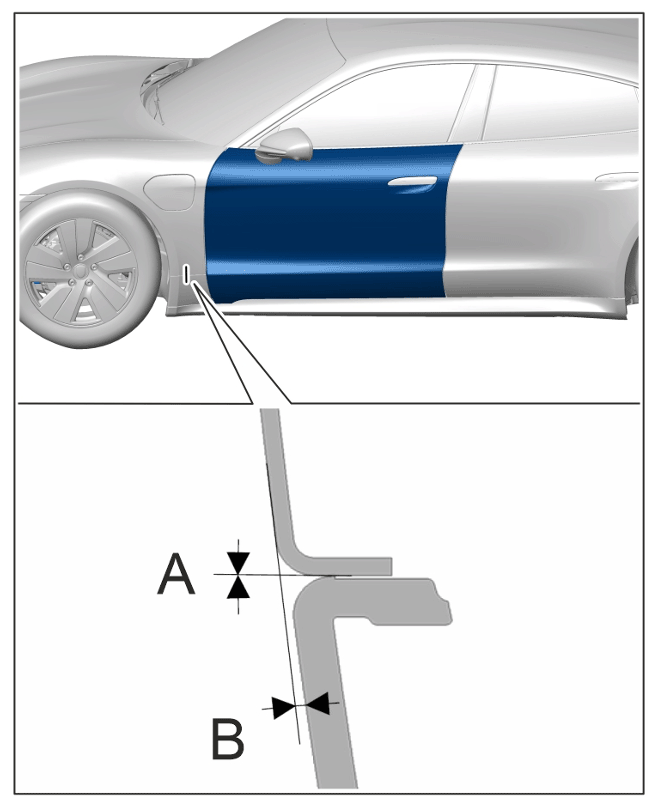

Wing to cover on wing (S29_2)
G14404834Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to cover on wing		 Dimension A Gap dimension 0 mm +/- 0.5 mm
Wing to cover on wing (S29_2)
G14404835Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing to cover on wing		 Dimension B Offset 0.5 mm - 1 mm
Rear door to side panel (S25)
G14404836Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear door to side panel		 Dimension A Gap dimension 3.5 mm +/- 0.5 mm

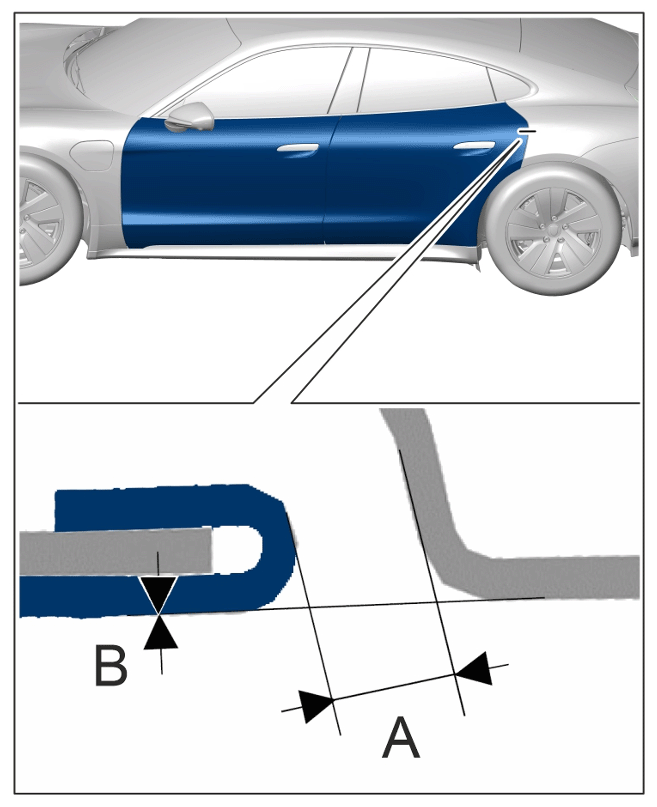

Rear door to side panel (S25)
G14404837Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear door to side panel		 Dimension B Offset 0 mm 0.8 mm

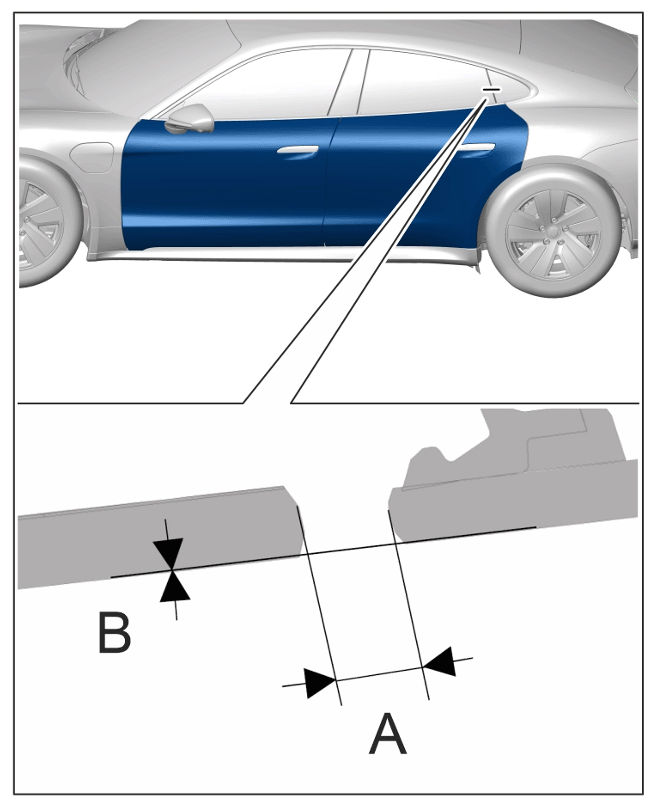

Side window to rear window (S26)
G14404838Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side window to rear window		 Dimension A Gap dimension 7 mm +/- 1 mm
Side window to rear window (S26)
G14404839Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side window to rear window		 Dimension B Offset 0 mm +/- 1 mm

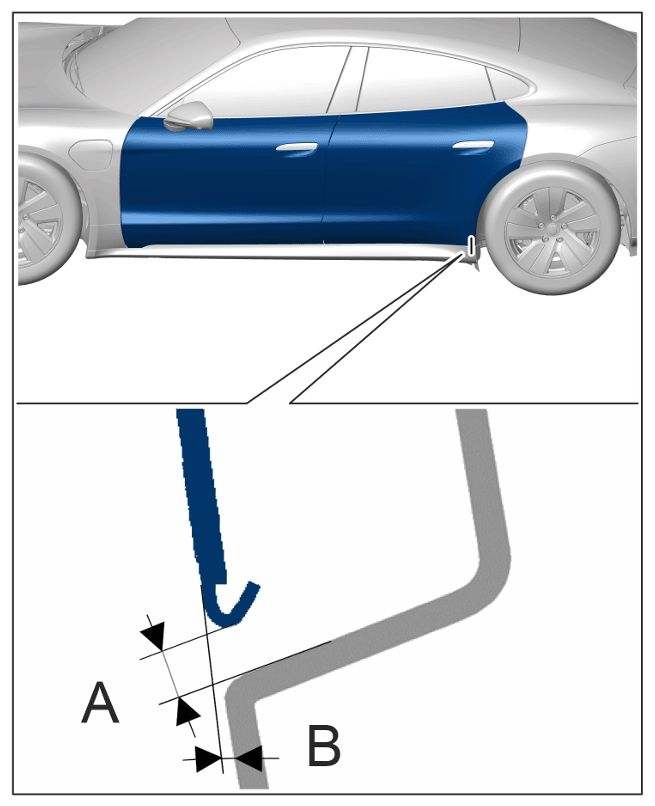

Rear door to door sill (S28)
G14404840Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear door to door sill		 Dimension A Gap dimension 4.5 mm +/- 1.1 mm
Rear door to door sill (S28)
G14404841Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear door to door sill		 Dimension B Offset 0.5 mm +/- 1.1 mm

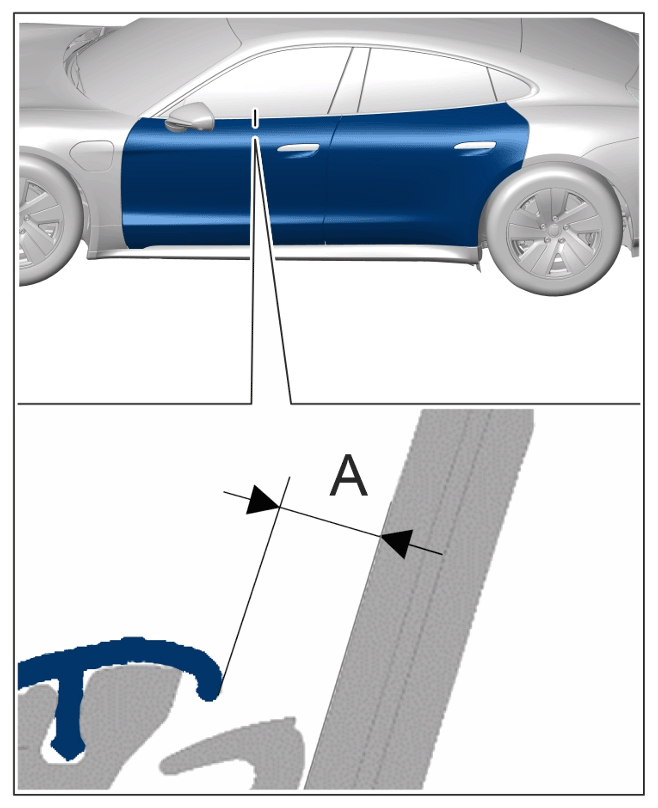

Front door to front door window (SK312)
G14404842Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to front door window		 Dimension A Gap dimension 5 mm +/- 0.8 mm

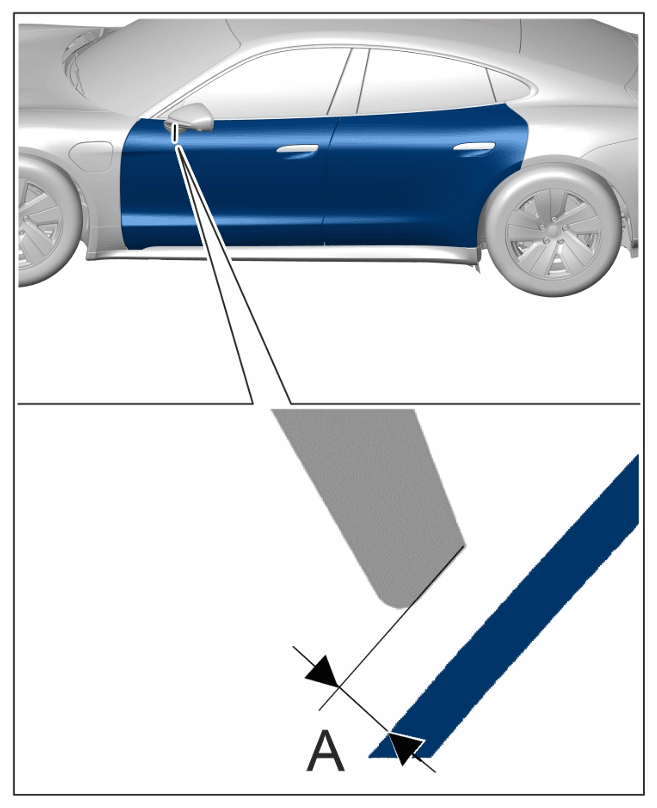

Mirror base to door (SP100)
G14404843Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mirror base to door		 Dimension A Gap dimension 1.5 mm +/- 1 mm
Front door to front door handle (SP310_1)
G14404844Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to front door handle		 Dimension A Gap dimension 1.5 mm +/- 0.5 mm

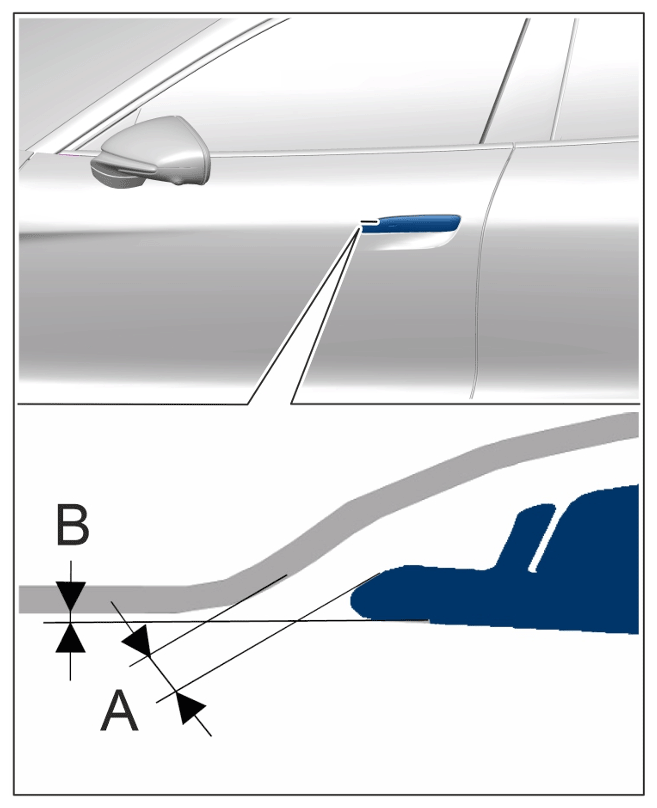

Front door to front door handle (SP310_1)
G14404845Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to front door handle		 Dimension B Offset - 0.5 mm +/- 0.5 mm

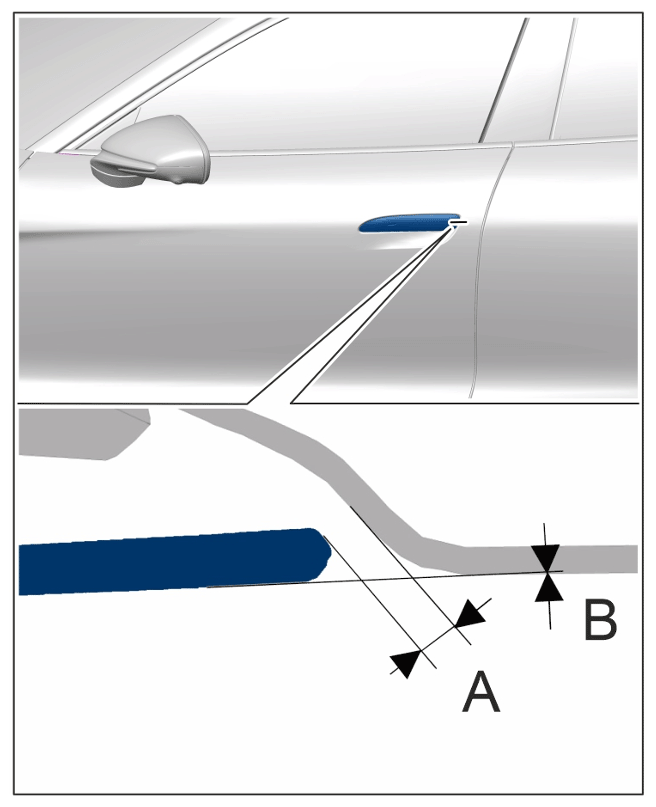

Front door to front door handle (SP310_2)
G14404846Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to front door handle		 Dimension A Gap dimension 1.5 mm +/- 0.5 mm
Front door to front door handle (SP310_2)
G14404847Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to front door handle		 Dimension B Offset 0 mm +/- 0.5 mm

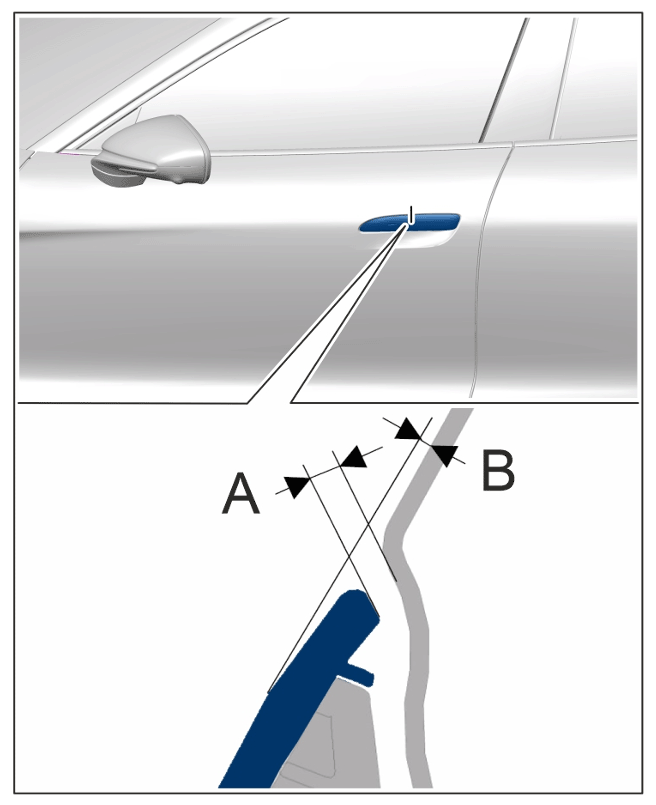

Front door to front door handle (SP311_1)
G14404848Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to front door handle		 Dimension A Gap dimension 1.5 mm +/- 0.5 mm
Front door to front door handle (SP311_1)
G14404849Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door to front door handle		 Dimension B Offset - 0.3 mm +/- 0.5 mm

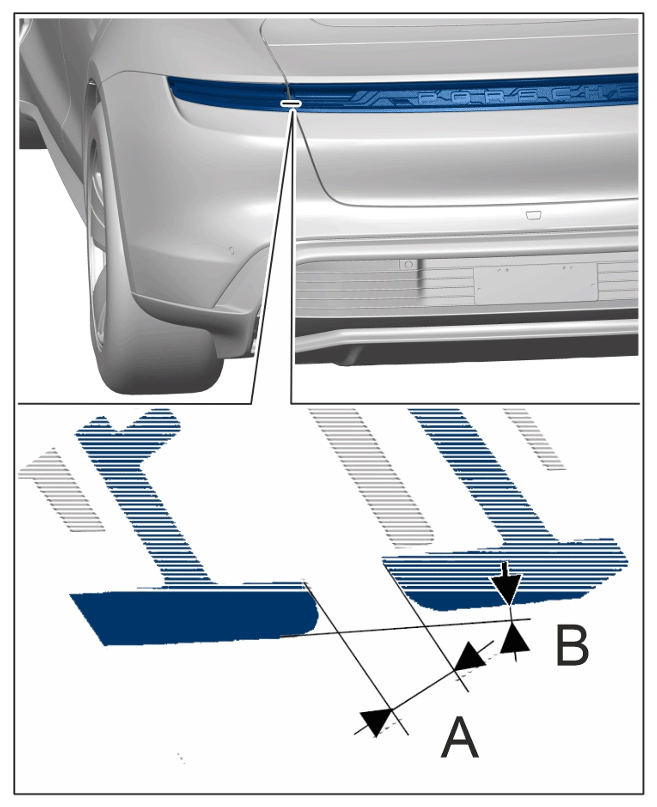

Tail/brake/direction indicator/reversing lights 1
(SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2) (H13)
G14404850Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2)		 Dimension A Gap dimension 4 mm +/- 1 mm
Tail/brake/direction indicator/reversing lights 1
(SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2) (H13)
G14404851Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2)		 Dimension B Offset 1 mm +/- 0.5 mm

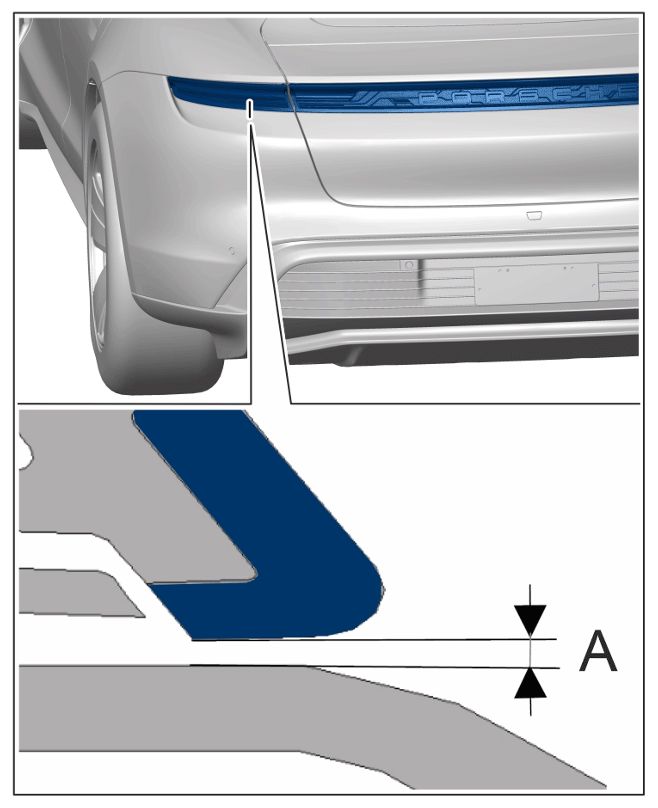

Tail/brake/direction indicator/reversing lights 1 (SBBR1) to rear apron (H14)
G14404852Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tail/brake/direction indicator/reversing lights 1 (SBBR1) to rear apron		 Dimension A Gap dimension 0.8 mm +/- 0.7 mm

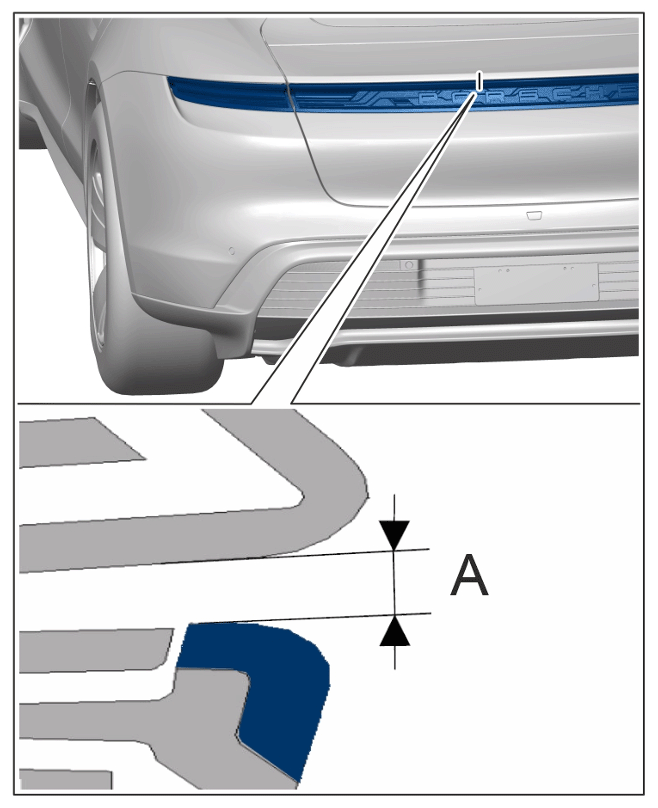

Tail/brake/direction indicator/reversing lights 2 (SBBR2) to tailgate (H20)
G14404853Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tail/brake/direction indicator/reversing lights 2 (SBBR2) to tailgate		 Dimension A Gap dimension 1 mm +/- 0.7 mm
Tailgate to side panel (H42)
G14404854Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailgate to side panel		 Dimension A Gap dimension 3.5 mm +/- 0.7 mm

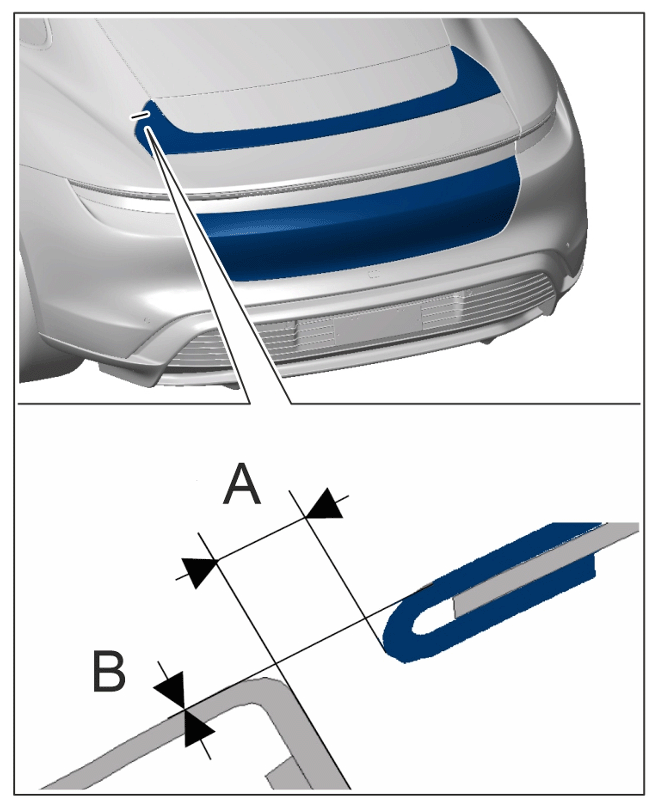

Tailgate to side panel (H42)
G14404855Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailgate to side panel		 Dimension B Offset 0 mm +/- 0.8 mm
Tailgate to trim (H47_1)
G14404856Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailgate to trim		 Dimension A Gap dimension 3 mm

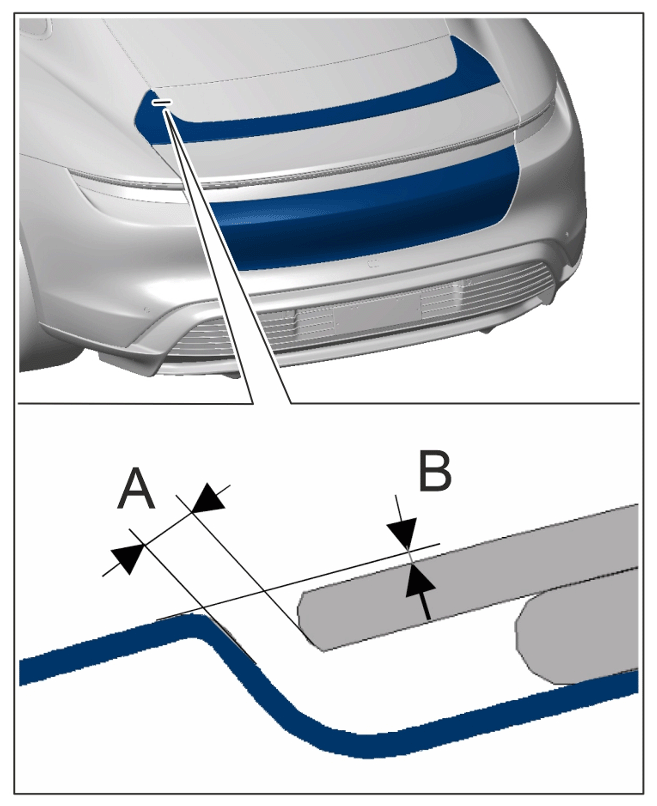

Tailgate to trim (H47_1)
G14404857Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailgate to trim		 Dimension B Offset 0.5 mm
