Removing Electric Power Supply Flap (Module)

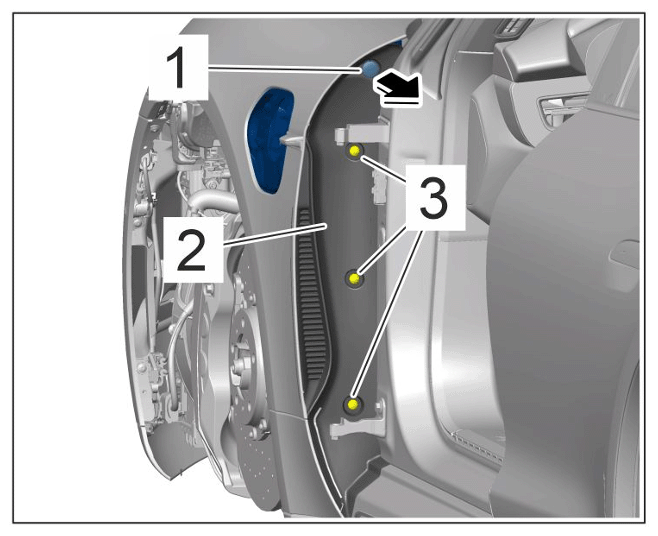

  1. Remove wing trim panel -2-  .
    G15563332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wing trim panel

    1. 1.1 Unclip pull knob -1-  (-arrow-  ).
    2. 1.2 Unscrew and remove screws -3-  .
    3. 1.3 Remove wing trim panel -2-  and feed out pull knob -1-  .

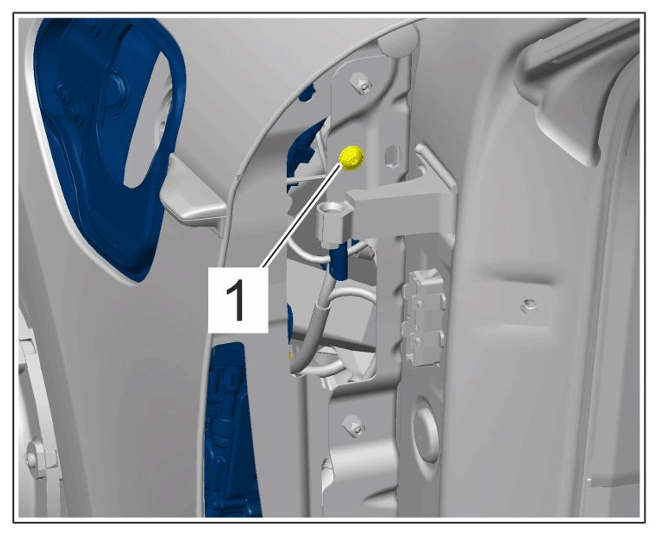

  2. Unscrew screw -1-  .
    G15563333Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

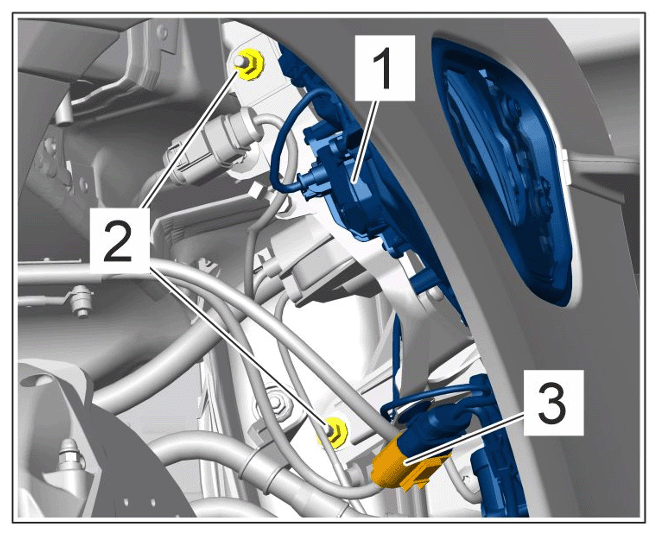

  3. Disconnect electric power supply flap (module) -1-  with charging socket.
    G15563334Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nuts

    1. 3.1 Release and unplug electric plug connection -3-  .
    2. 3.2 Unscrew nuts -2-  .

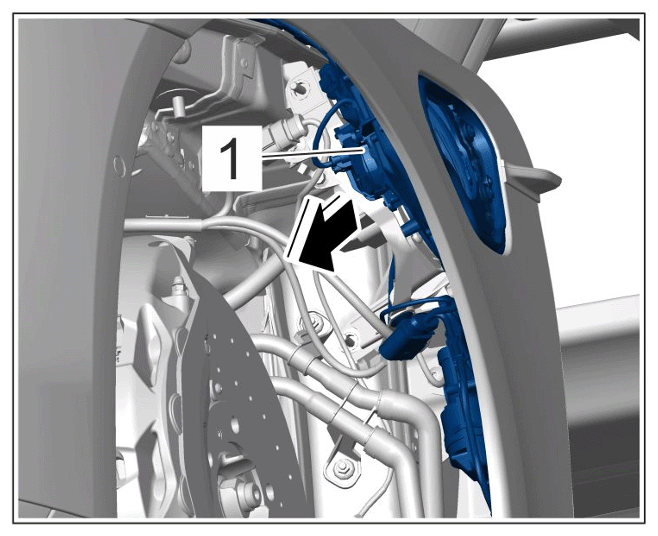

  4. Swivel out electric power supply flap (module) -1-  with charging socket -arrow-  .
    G15563335Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric power supply flap (module)

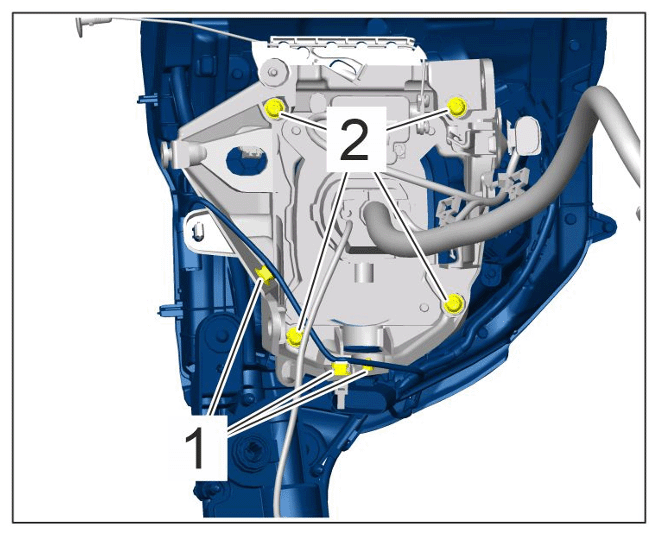

  5. Unclip clips -1-  and unscrew screws -2-  .
    G15563336Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  6. Remove electric power supply flap (module).
